BOOST CONTROLLER AP3039
Data Sheet
17
BCD Semiconductor Manufacturing Limited Jun. 2010 Rev. 1. 6
QFN-3x3-16

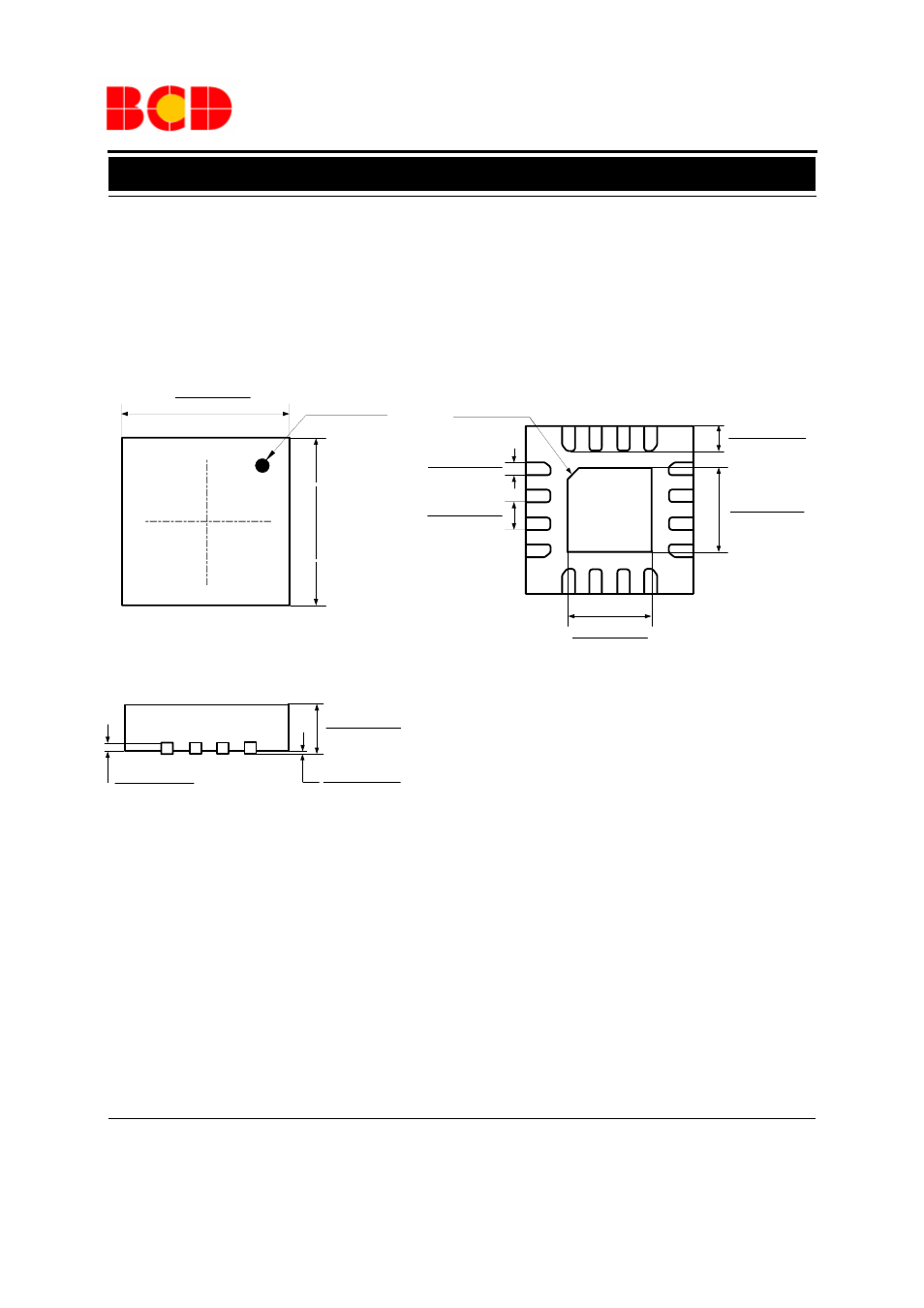

Mechanical Dimensions
Unit: mm(inch)
0.700(0.028)
0.900(0.035)
0.000(0.000)
0.050(0.002)
0.178(0.007)
0.228(0.009)
0.180(0.007)
0.280(0.011)
BSC
0.500(0.020)
1.700(0.068)
Ref
1.700(0.068)
Ref
0.500(0.020)
0.300(0.012)
Bottom
View
Exposed
Pad
Pin 1
Identification Pin 1
Identification
3.100(0.122)
2.900(0.114)
3
.1
00
(0
.1
22
)
2.
90
0(
0.
11
4)
Pin1
