AP7313
150mA, Low Quiescent Current, Fast Transient
Low Dropout Linear Regulator
AP7313 Rev. 2
1 of 13
NOVEMBER 2009
©
Diodes Incorporated
•
150mA Low Dropout Regulator in 3-pin package
•
Very low I
Q
over full load: 65µA
•
Wide input voltage range: 2V to 6V
•
Fixed output options: 1.0V to 3.3V
•
PSRR: 65dB at 100Hz
•
Fast start-up time: 80µs
•
Stable with low ESR, 1µF ceramic output capacitor
•
Excellent Load/Line Transient Response
•
Low dropout: 150mV typical at 150mA
•
Current limit protection
•
Short circuit protection
•
Thermal shutdown protection
•
Ambient temperature range: -40ºC to 85°C
•
SOT23 and SOT23R: Available in “Green” Molding
Compound (No Br, Sb)
•
Lead Free Finish/RoHS Compliant (Note 1)
The AP7313 is a 150mA, fixed output voltage, low dropout linear
regulator. The device included pass element, error amplifier,
band-gap, current limit and thermal shutdown circuitry.
The characteristics of low dropout voltage and low quiescent
current make it suitable for low power applications, for example,
battery powered devices. The typical quiescent current is
approximately 65
μA.
Built-in current-limit and thermal-shutdown functions prevent IC
from damage in fault conditions.
The AP7313 is available in SOT23 package with different
pin-outs.
•
Notebook and Desktop Computers and Pheripherals
• Portable
Devices
• Battery
Powered
Devices
•
CD-ROM, DVD and LAN Cards

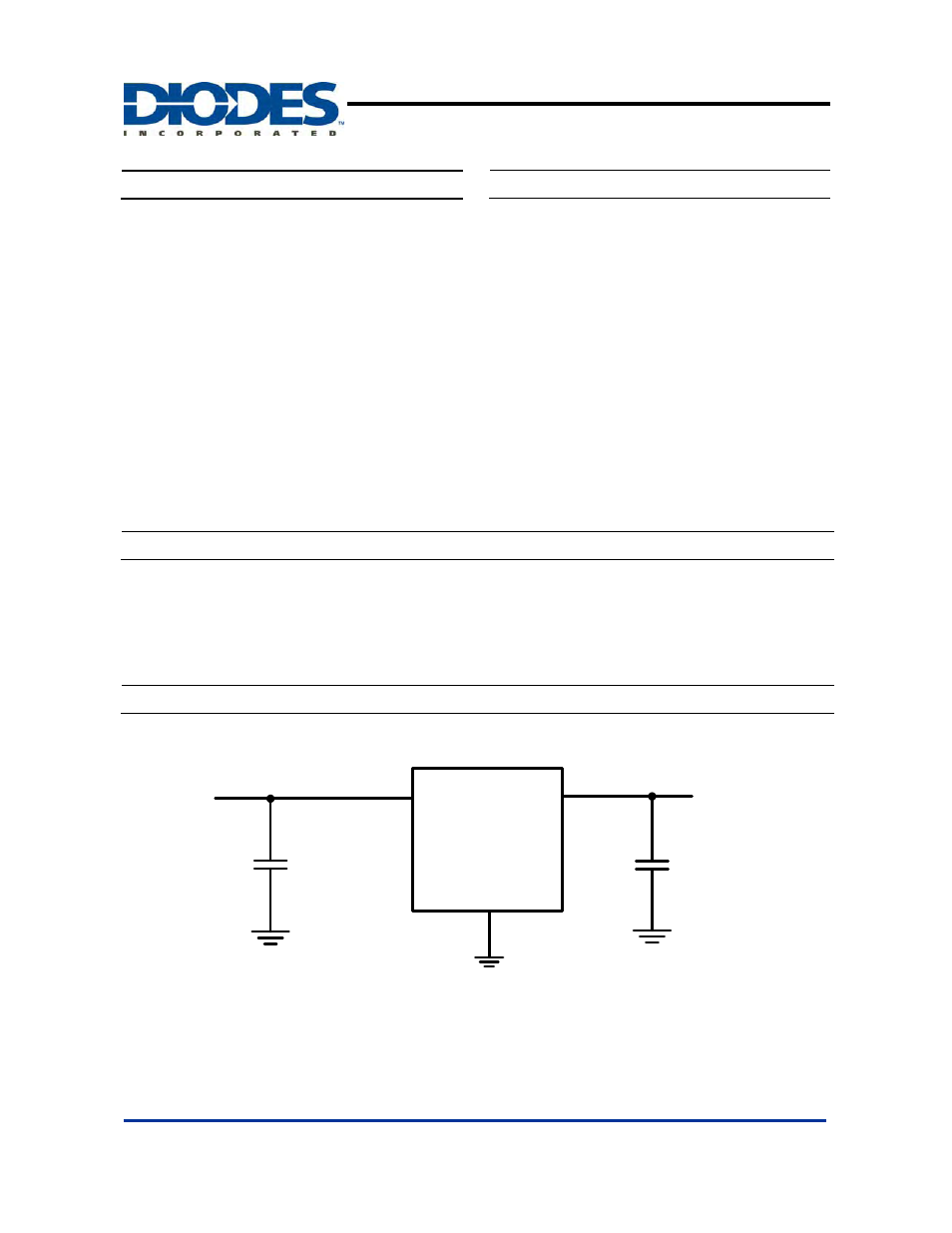

Typical Application Circuit
1uF
IN
GND
OUT
1uF
V
IN
V
OUT
AP7313
Features
Description
Applications
