Advance Datasheet
1.5A High-side Power Distribution Switch with Enable and Flag AP2815
Apr. 2012 Rev 1. 7 BCD Semiconductor Manufacturing Limited
1
General Description
The AP2815 is an integrated high-side power switch
that consists of N-Channel MOSFET, charge pump,
over current & temperature and other related protection
circuits. The switch’s low R
DS(ON)
, 60m Ω, is designed
to meet the USB voltage drop requirements. The IC
integrates soft-start to limit inrush current,
over-current protection, load short protection with
fold-back, and thermal shutdown to avoid switch
failure during hot plug-in. Under voltage lockout
(UVLO) function is used to ensure the device
remains off unless there is a valid input voltage
present. A FLAG output is available to indicate fault
conditions to the local USB controller.
The AP2815 is available in standard packages of
SOIC-8 and MSOP-8.
Features
•
Low MOSFET on Resistance: 60m Ω @
V
IN
=5.0V
• Compliant to USB Specifications
• Operating Voltage Range: 2.7V to 5.5V
• Low Supply Current: 65µA (Typ.)
• Low Shutdown Current: 1.0µA (Max)
• Guarantee 1.5A Continuous Load
• Current Limit: 1.65A (Min), 2.8A (Max)
• Under-voltage Lockout
• Logic Level Enable Pin:
e Available in Active-high or Active-low Version
• Soft Start-up
•
Over-current Protection
• Over Temperature Protection
• Load Short Protection with Fold-back
• No Reverse Current when Power Off
• Deglitched FLAG Output with Open Drain
•
e
With Output Shutdown Pull-low Resistor for
e
A/C Versions
• UL Approved (File No. E339337)
• Nemko CB Scheme IEC60950-1, Ref. Certif
No. NO64001
Applications
• USB Power Management
• USB Bus/Self Powered Hubs
• Hot-plug Power Supplies
• Battery-Charger circuits
• Notebook, Motherboard PCs

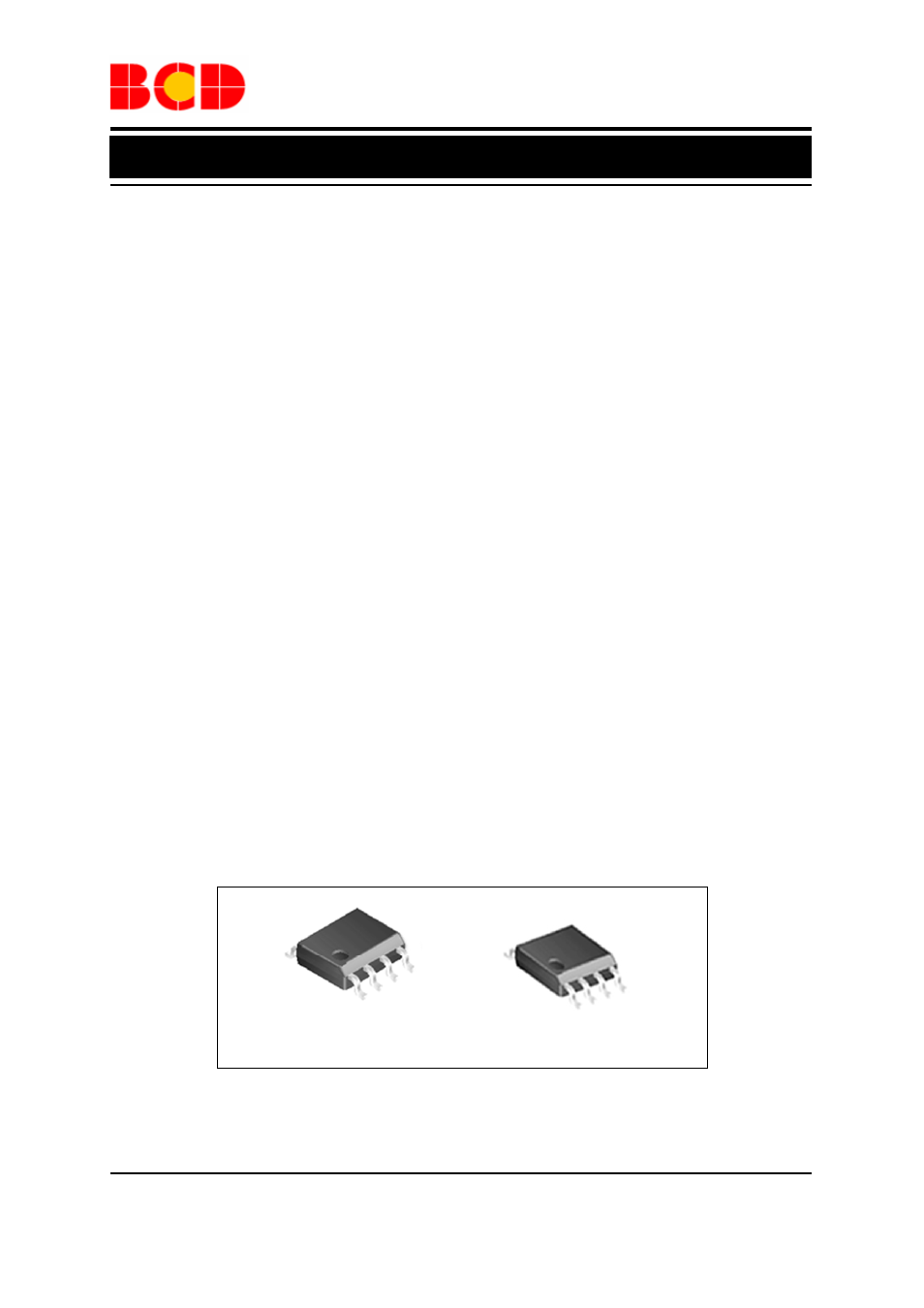

Figure 1. Package Types of AP2815
SOIC-8 MSOP-8
