Ap2331, 2a single channel current-limited load switch, New prod uc t description

AP2331
0.2A SINGLE CHANNEL CURRENT-LIMITED LOAD SWITCH
AP2331
Document Number: DS35529 Rev. 4 - 2
1 of 11
May 2012
© Diodes Incorporated
NEW PROD
UC
T
Description
The AP2331 is single channel current-limited integrated high-side
power switches optimized for hot-swap applications. The devices
have fast short-circuit response time for improved overall system
robustness and provide a complete protection solution for application
subject to heavy capacitive loads and the prospect of short circuit. It
offers reverse-current blocking, over-current, over-temperature and
short-circuit protection, as well as controlled rise time and under-
voltage lockout functionality.
The device is available in SOT23 and SC59 packages.
Features
•
Input voltage range: 2.7V – 5.2V
•
Fast short-circuit response time
•
0.4A accurate current limiting
• 250m
Ω on-resistance
• Reverse-current
blocking
•
Built-in soft-start with 0.7ms typical turn-on time
• Over-current
protection
• Over-voltage
protection
•
Short-circuit and thermal protection
•
ESD protection: 3KV HBM, 300V MM
•
Ambient temperature range: -40°C to +85°C
•
Available in “Green” molding compound (No Br, Sb)
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
•
UL recognized, file number E322375
•
IEC60950-1 CB scheme certified

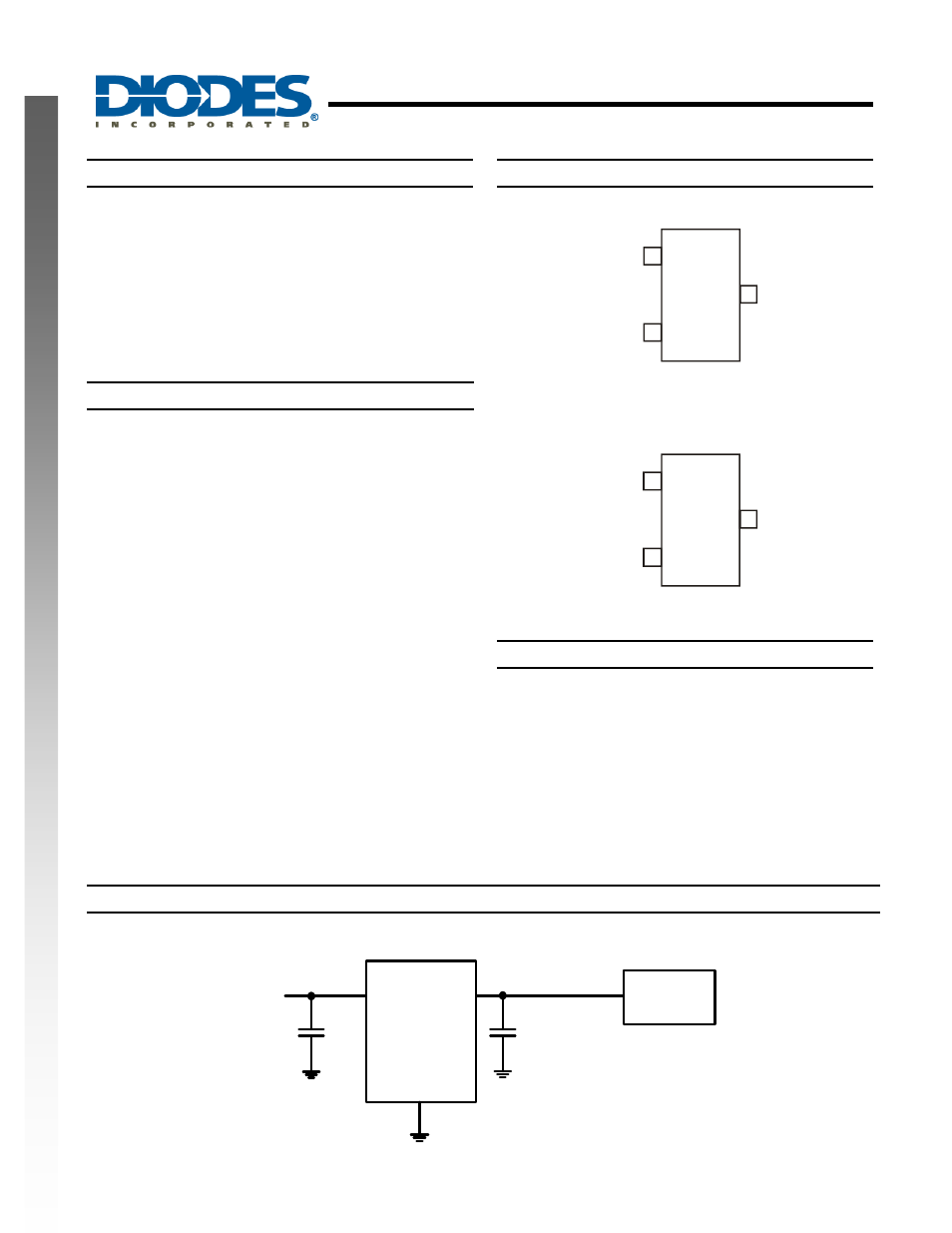

Pin Assignments
Applications
•
LCD TVs & Monitors
•
Set-Top-Boxes, Residential Gateways
•
Laptops, Desktops, Servers
•
Printers, Docking Stations, HUBs
•
Smart phones, e-Readers
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds
Typical Application Circuit
0.1µF
IN
GND
OUT
Power Supply
2.7V to 5.2V
Load
0.1µF
(Top View)
(Top View)
SC59
SOT23
IN
IN
GND
GND
OUT
OUT
