AP7312
DUAL 150mA LOW QUIESCENT CURRENT FAST
TRANSIENT LOW DROPOUT LINEAR REGULATOR
AP7312
Document number: DS35133 Rev. 2 - 2
2 of 18
www.diodes.com
January 2011
© Diodes Incorporated
NEW PROD
UC
T

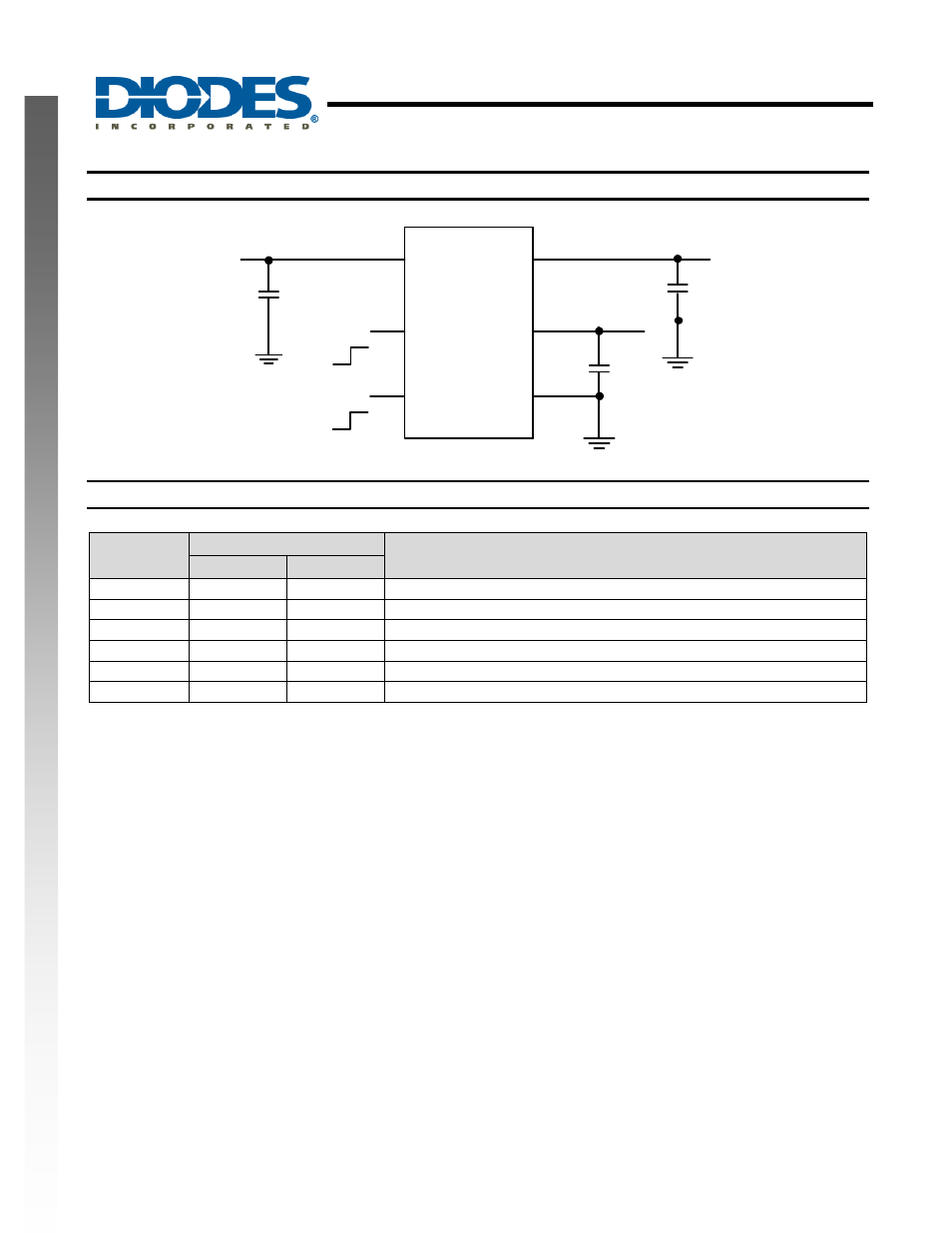

Typical Application Circuit
EN2
VIN
EN1 VOUT2
VOUT1
GND
ON
OFF
1uF
V
IN
1uF V
OUT2
1uF
V
OUT1
ON
OFF
Pin Descriptions
Pin Name
Pin Number
Description
SOT26 DFN2018-6
OUT2 1 5 Voltage output 2. Bypass to ground through 1µF ceramic capacitor
GND 2 4 Ground
EN2 3 3 Enable input 2, active high
EN1 4 2 Enable input 1, active high
IN 5 1 Voltage input. Bypass to ground through at least 1µF capacitor
OUT1 6 6 Voltage output 1. Bypass to ground through 1µF ceramic capacitor
