Data Sheet
1.5MHz, 2.5A, Step-down DC-DC Converter AUR9718B
Nov. 2012 Rev. 1. 0 BCD Semiconductor Manufacturing Limited
3
Functional Block Diagram
Over Current
Comparator
Bias
Generator
Saw -tooth
Generator
Oscillator
Soft
Start
Bandgap
Reference
Current
Sensing
Control
Logic
Buffer &
Dead Time
Control
Logic
+
Reverse Inductor
Current Comparator
Over Voltage
Comparator
Modulator
Error
Amplifier
-
+
-
+
-
+
-
+
FB
1
6
GND
SW
VIN_SW
4
EN
2
3
VIN_A
5

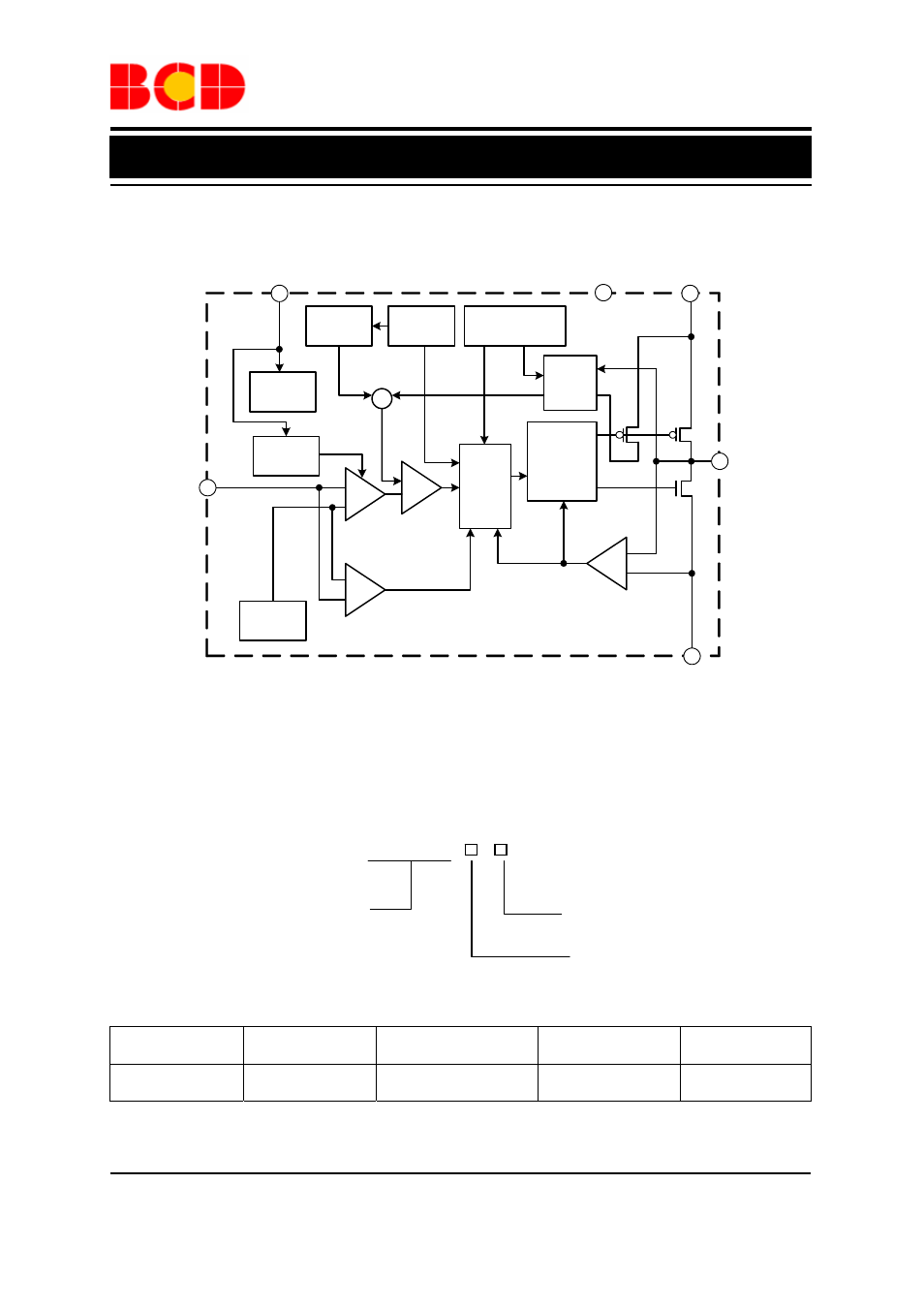

Figure 3. Functional Block Diagram of AUR9718B
Ordering Information
AUR9718B
Circuit Type
Package
Temperature
Range
Part Number Marking ID Packing Type
DFN-3×3-6 -40 to 80°C AUR9718BGD 9718B Tape & Reel
BCD Semiconductor's Pb-free products, as designated with "G" in the part number, are RoHS compliant and
green.
Package
D: DFN-3×3-6
G: Green
