Data Sheet
Dual 1A, 1.5MHz PWM Step-down DC-DC Converter with OVP AUR9717
Oct. 2011 Rev. 1.0 BCD Semiconductor Manufacturing Limited
7
Typical Performance Characteristics (Continued)

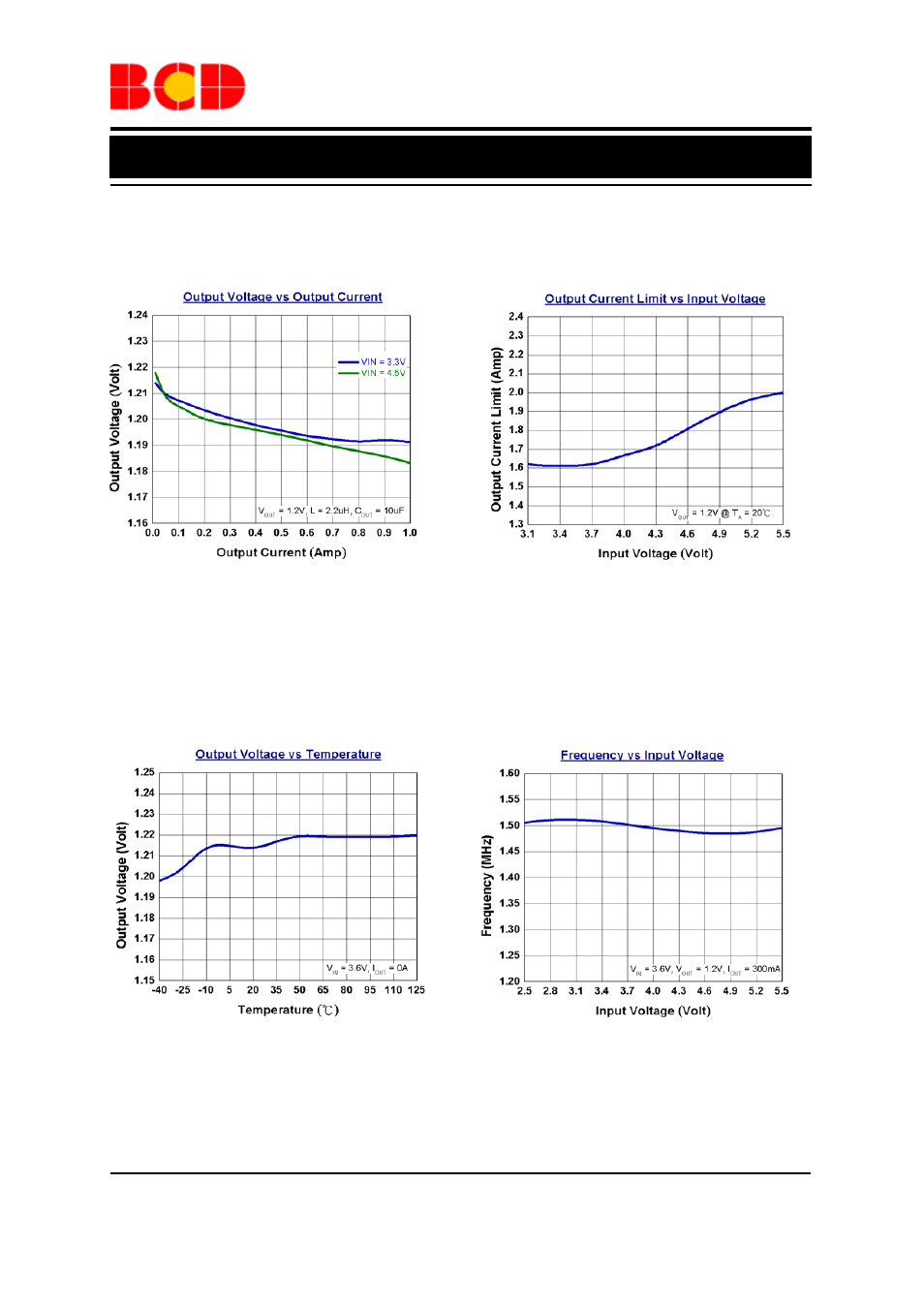

Figure 8. Output Voltage vs. Output Current
Figure 9. Output Current Limit vs. Input Voltage
Figure 10. Output Voltage vs. Temperature Figure 11. Frequency vs. Input Voltage
