1.5MHz, 1A, Step-down DC-DC Converter AUR9710
Nov. 2011 Rev. 1. 0 BCD Semiconductor Manufacturing Limited
1
General Description
The AUR9710 is a high efficiency step-down
DC-DC voltage converter. The chip operation is
optimized using constant frequency, peak-current
mode architecture with built-in synchronous power
MOSFET switchers and internal compensators to
reduce external part counts. It is automatically
switching between the normal PWM mode and LDO
mode to offer improved system power efficiency
covering a wide range of loading conditions.
The oscillator and timing capacitors are all built-in
providing an internal switching frequency of 1.5MHz
that allows the use of small surface mount inductors
and capacitors for portable product implementations.
Additional features including Soft Start (SS), Under
Voltage Lock Out (UVLO) and Thermal Shutdown
Detection (TSD) are integrated to provide reliable
product applications.
The device is available in adjustable output voltage
versions ranging from 1V to 3.3V, and is able to
deliver up to 1A.
The AUR9710 is available in WDFN-3×3-10
package.
Features
• High Efficiency Buck Power Converter
• Low Quiescent Current
• Output Current: 1A
• Adjustable Output Voltage from 1V to 3.3V
• Wide Operating Voltage Range: 2.5V to 5.5V
• Built-in Power Switchers for Synchronous
Rectification with High Efficiency
• Feedback Voltage: 800mV
• 1.5MHz Constant Frequency Operation
• Automatic PWM/LDO Mode Switching Control
• Thermal Shutdown Protection
• Low Drop-out Operation at 100% Duty Cycle
• No Schottky Diode Required
Applications
• Battery Powered Devices
• Mobile Phone, Digital Camera and MP3 Player
• Headset, Radio and Other Hand-held Instruments
• PCI Card, WiFi card
• PDA and Notebook Computer

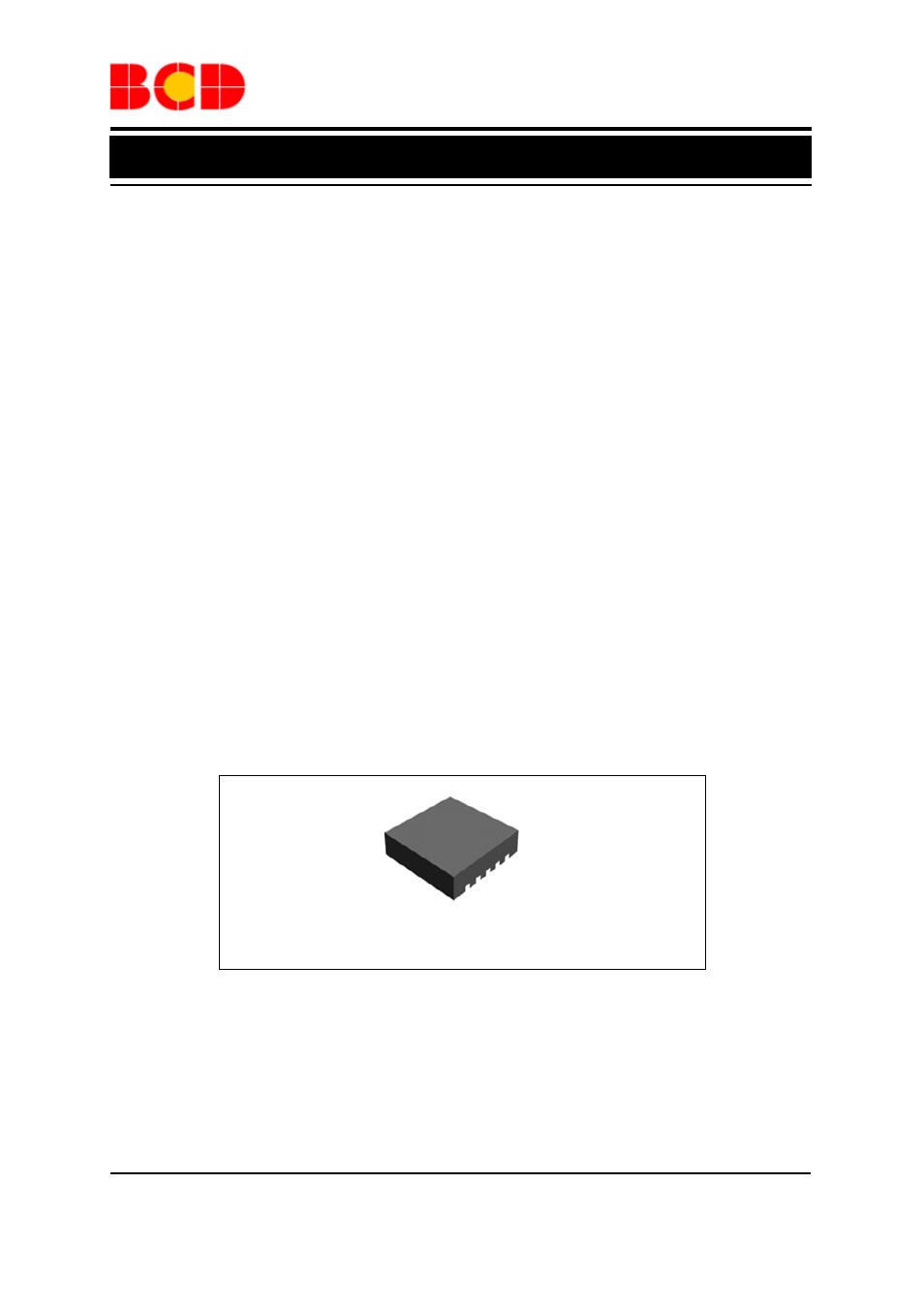

Figure 1. Package Type of AUR9710
WDFN-3Ч3-10
