AP65502
LIGHT LOAD IMPROVED 4A 500KHZ SYNCH DC/DC BUCK CONVERTER
Description
The AP65502 is a 500kHz switching frequency external compensated
synchronous DC/DC buck converter. It has integrated low R
DSON
high
and low side MOSFETs.
The AP65502 enables continues load current of up to 5A with
efficiency as high as 96%.
The AP65502 implements an automatic custom light load efficiency
improvement algorithm.
The AP65502 features current mode control operation, which enables
fast transient response times and easy loop stabilization.
The AP65502 simplifies board layout and reduces space
requirements with its high level of integration and minimal need for
external components, making it ideal for distributed power
architectures.
The AP65502 is available in a standard Green SO-8EP package and
is RoHS compliant.
Features
•
V
IN
4.75V to 17V
•
5A Continuous Output Current, 7A Peak
•
Efficiency Up to 96%
•
Automated Light Load improvement
•
V
OUT
Adjustable to 0.8 to 12V
•
500kHz Switching Frequency
•
External Programmable Soft-Start
• Enable
Pin
•
OCP with Hiccup and Thermal Protection
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)

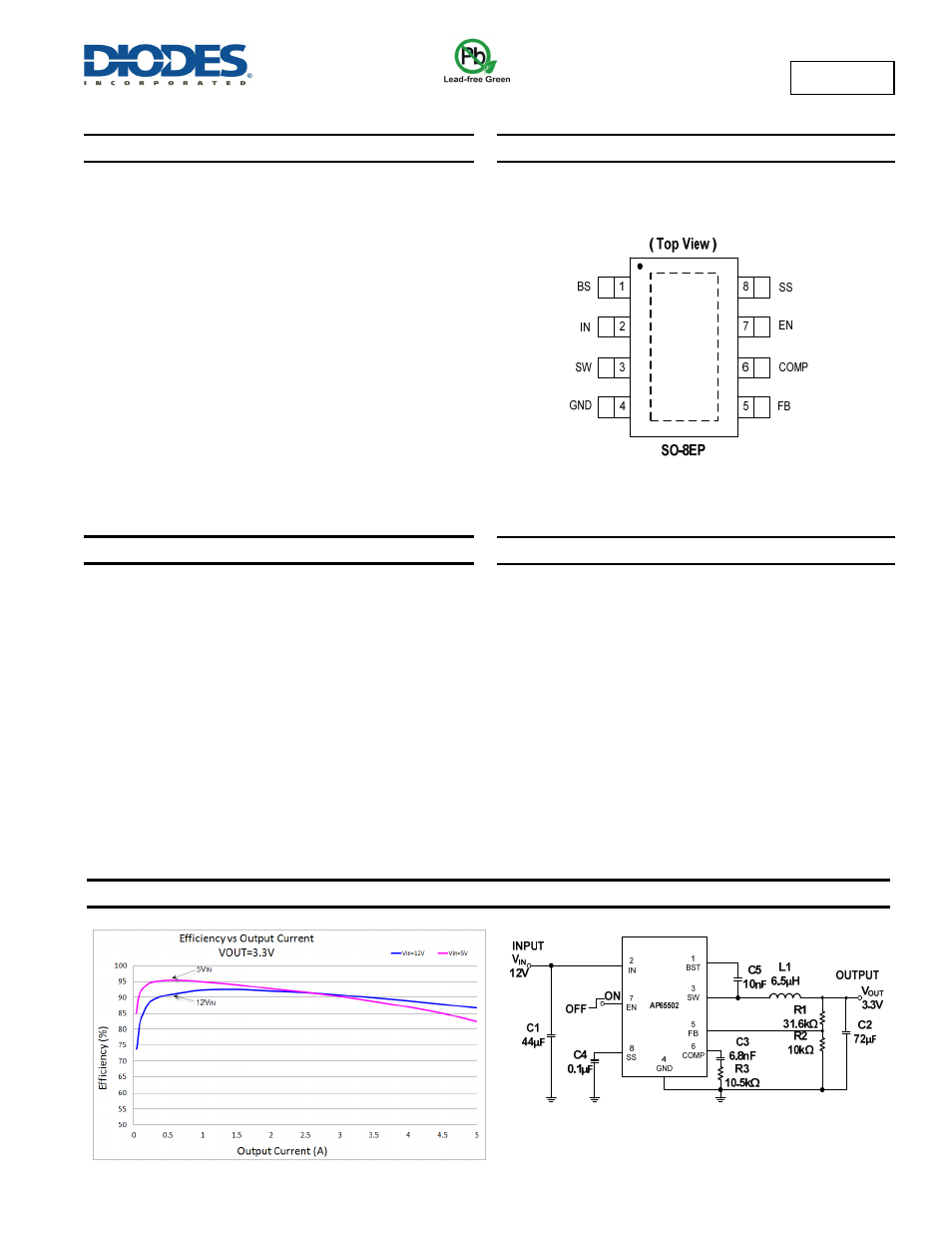

Pin Assignments
Applications
• Gaming
Consoles
•
Flat Screen TV sets and Monitors
•
Set Top Boxes
•
Distributed power systems
• Home
Audio
• Consumer
electronics
• Network
Systems
•
FPGA, DSP and ASIC Supplies
•
Green Electronics
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
Typical Applications Circuit
Figure 1 Typical Application Circuit
