Preliminary Datasheet
380kHz, 3A Asynchronous DC - DC Buck Converter AP3203
Mar. 2011 Rev. 1. 0 BCD Semiconductor Manufacturing Limited
1
General Description
The AP3203 is a 380kHz fixed frequency, current
mode, PWM buck (step-down) DC-DC converter,
capable of driving a 3A load with high efficiency,
excellent line and load regulation. The device
integrates N-channel power MOSFET switch with
low on-resistance. The current mode control provides
fast transient response and cycle-by-cycle current
limit.
A standard series of inductors are available from
several different manufacturers optimized for use
with the AP3203. This feature greatly simplifies the
design of switch-mode power supplies.
This IC is available in PSOP-8 package.
Features
• Input Voltage Range: 4.75V to 18V
• Fixed 380kHz Frequency
• High Efficiency: up to 93%
• Output Current: 3A
• Current Mode Control
• Built-in Over Current Protection
• Built-in Thermal Shutdown Function
• Built-in UVLO Function
• Built-in Over Voltage Protection
• Programmable Soft-start
Applications
• Portable DVD
• DPF
• LCD-TV
• STB

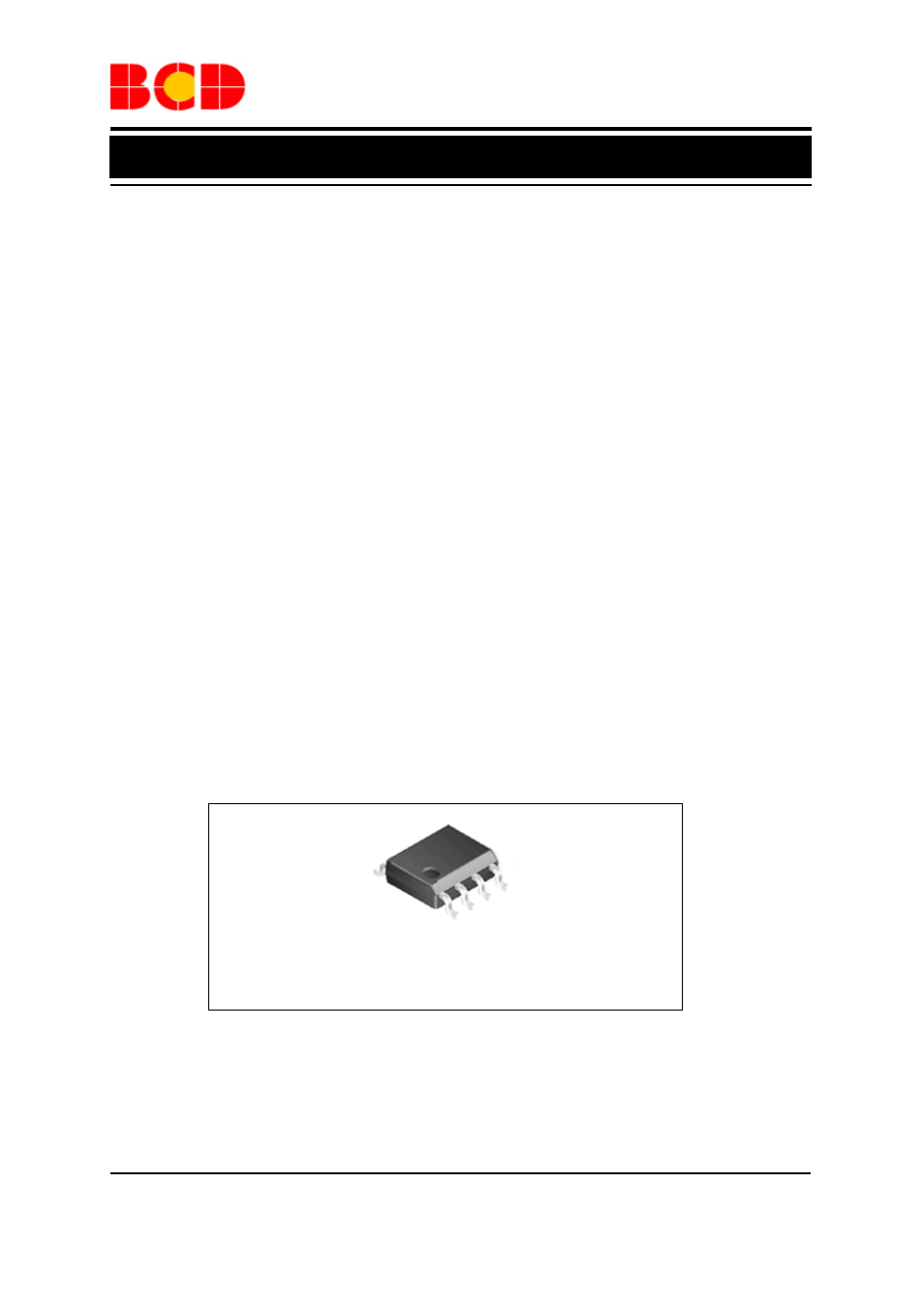

Figure 1. Package Type of AP3203
PSOP-8
