AP1509

150KHz, 2A PWM BUCK DC/DC CONVERTER

AP1509

Document number: DS31016 Rev. 4 - 2

11 of 13

www.diodes.com

June 2010

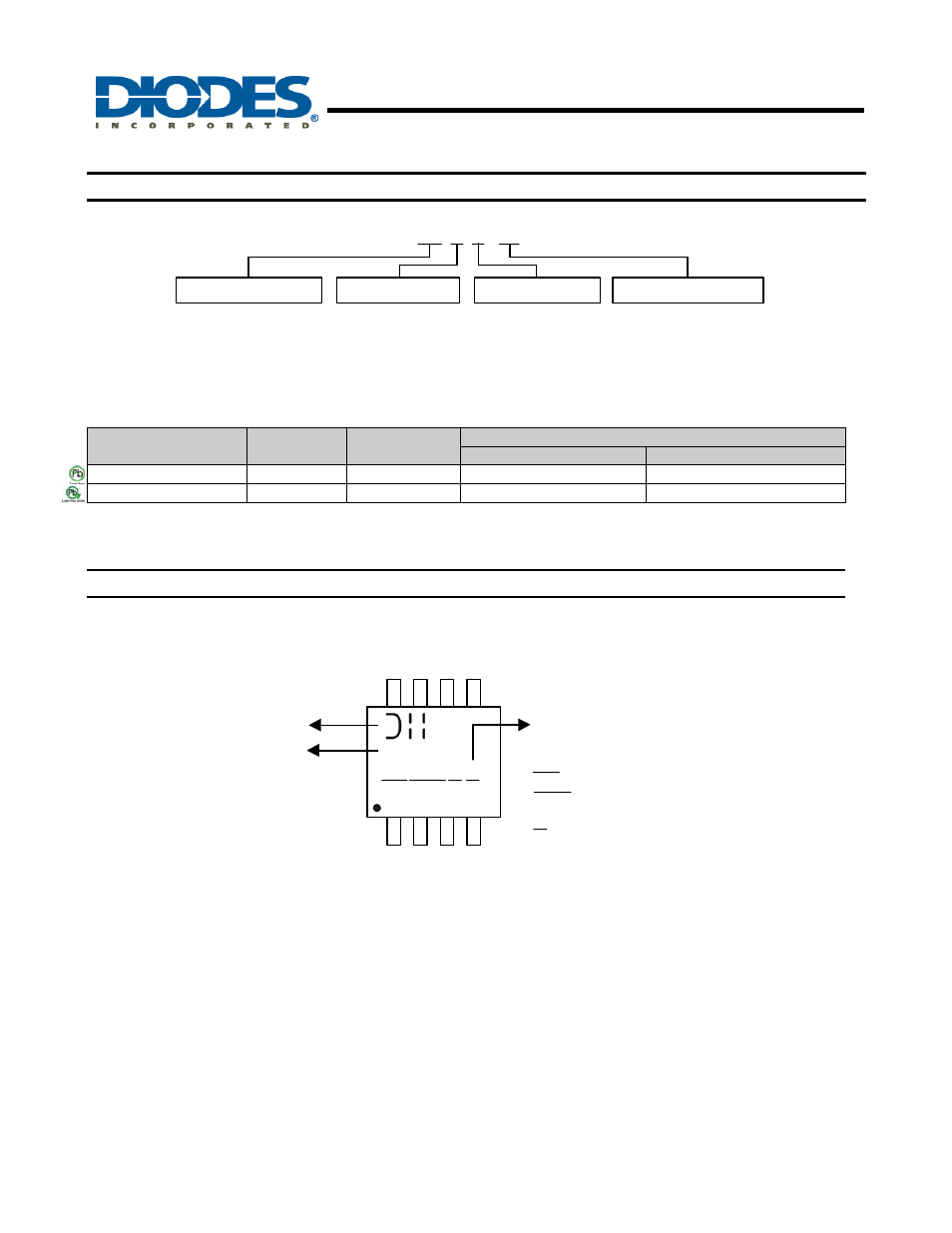

Ordering Information

Package

S : SOP-8L

Output Version

AP1509 - XX S X - 13

13 : Tape & Reel

Blank : Adjustable

33 : 3.3V
50 : 5.0V

12 : 12V

Lead Free

L : Lead Free

G : Green

Packing

Device

Package

Code

Packaging

(Note 2)

13” Tape and Reel

Quantity

Part Number Suffix

AP1509-XXSL-13

SOP-8L

2500/Tape & Reel

-13

AP1509-XXSG-13

SOP-8L

2500/Tape & Reel

-13

Notes: 2. Pad layout as shown on Diodes Inc. suggested pad layout document AP02001, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.

Marking Information

(1) SOP-8L

( Top View )

1509-XX

YY WW X X

Logo

Part No.

G : Green

L : Lead Free

Output Type :

Blank : Adjustable

1509-33 : 3.3V

1509-50 : 5.0V

1509-12 : 12V

WW : Week : 01~52; 52

YY : Year : 08, 09,10~

X : Internal Code

represents 52 and 53 week
