1.5A STEP-DOWN/STEP-UP/INVERTING DC-DC CONVERTER AZ34063A
Data Sheet
1
Jan. 2013 Rev. 1. 6
BCD Semiconductor Manufacturing Limited
General Description
The AZ34063A is a monolithic switching regulator
control circuit which contains the primary functions
required for DC-DC converters. This device consists
of internal temperature compensated reference, voltage
comparator, controlled duty cycle oscillator with active
current limit circuit, driver and high current output
switch.
The AZ34063A is specifically designed as a general
DC-DC converter to be used in Step-Down, Step-Up
and Voltage-Inverting applications with a minimum
number of external components.
The AZ34063A is available in 2 packages: SOIC-8 and
DIP-8.
Features
• Operation from 3.0V to 36V Input
• Low Standby Current
• Current Limiting
• Output Switch Current to 1.5A
• Output Voltage Adjustable
• Operation Frequency up to 180kHz
• Precision 2% Reference
Applications
·
Battery Chargers
·
ADSL Modems
·
Hubs
·
Negative Voltage Power Supplies

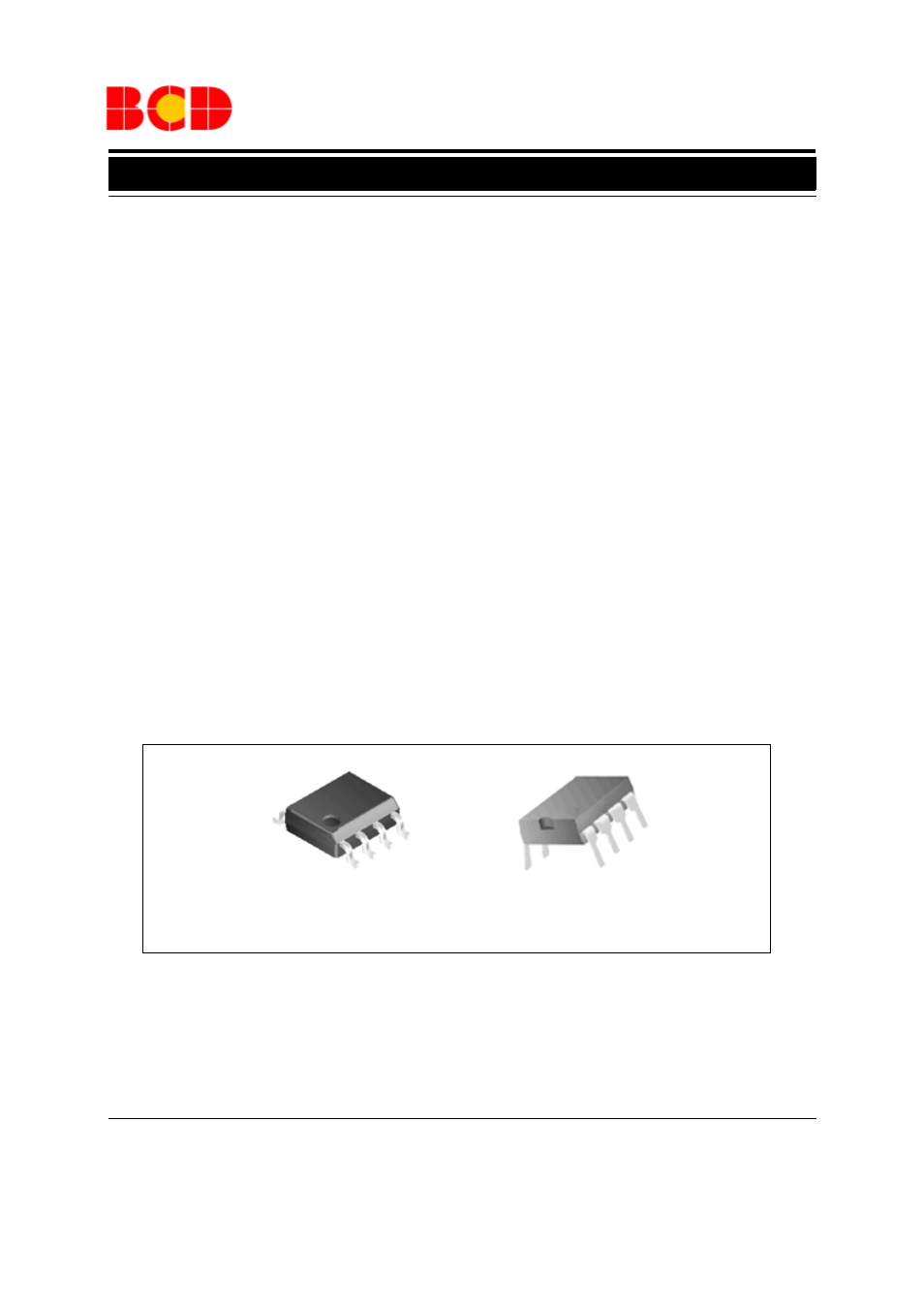

Figure 1. Package Types of AZ34063A
SOIC-8
DIP-8
