D5V0X1B2LP
Document number: DS35998 Rev. 4 - 2
1 of 5
www.diodes.com
April 2014
© Diodes Incorporated
D5V0X1B2LP
ADVAN
CE I
N
F
O
RM
ATI
O
N
ULTRA LOW CAPACITANCE BIDIRECTIONAL TVS DIODE
Product Summary
V
BR(min)
I
PP(max)
C
T(typ)
7V 1.5A 0.23pF
Description
This new generation TVS is designed to protect sensitive electronics
from the damage due to ESD. The combination of small size and high
ESD surge capability makes it ideal for use in portable applications
such as cellular phones, digital cameras, and MP3 players.
Applications
 Cellular Handsets
 Portable Electronics
 Computers and Peripheral
Features
 Low Profile Package (0.53mm max) and Ultra-small PCB Footprint
Area (1.08 x 0.68mm max) Suitable for Compact Portable
Electronics
 Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±15kV, Contact ±15kV
 1 Channel of ESD Protection
 Low Channel Input Capacitance
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
 Case: X1-DFN1006-2
 Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: NiPdAu over Copper leadframe. Solderable per MIL-
STD-202, Method 208
 Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Product Compliance Marking Reel Size (inches) Tape Width (mm) Quantity per Reel
D5V0X1B2LP-7B Standard RJ 7 8 10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
e4

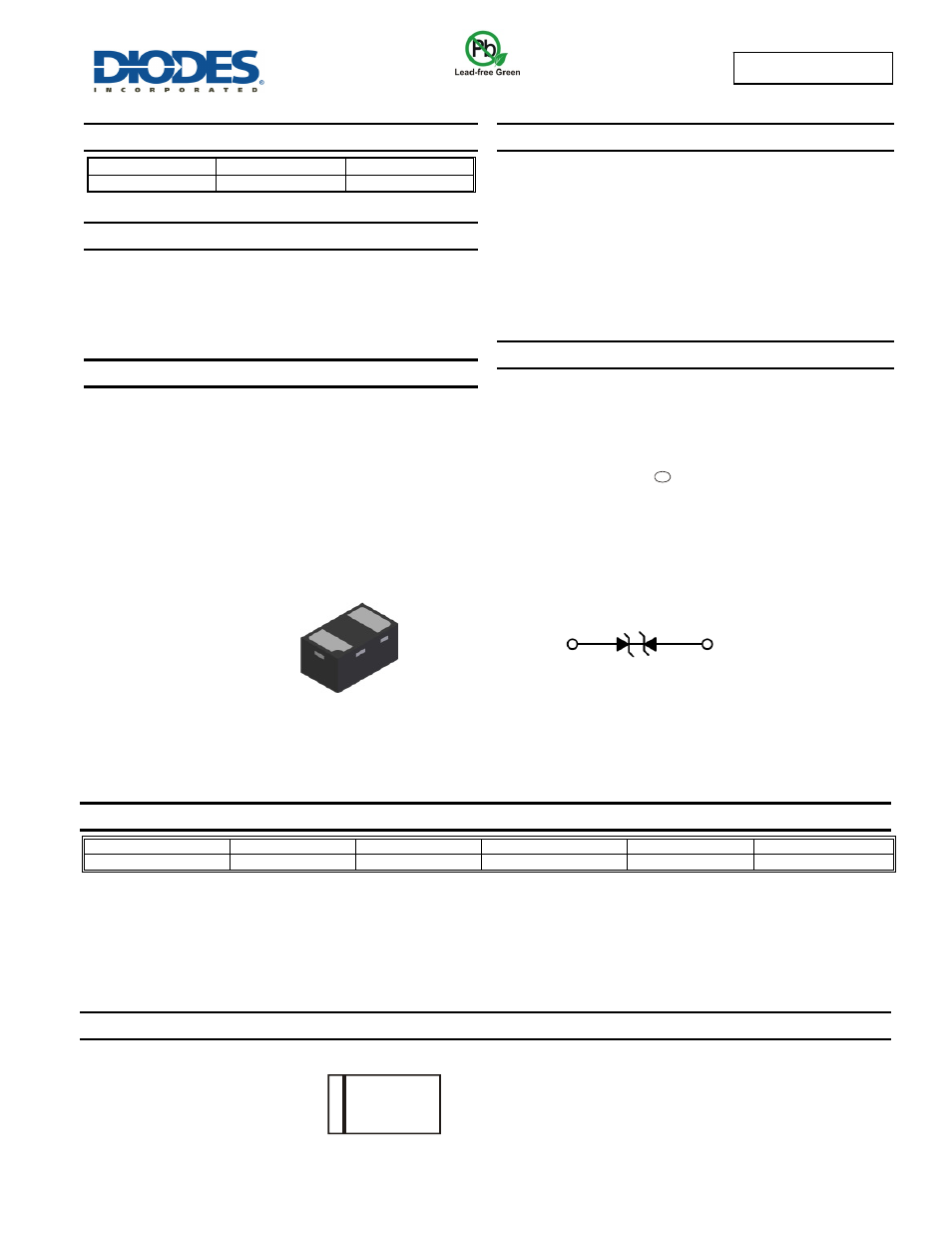

Device Schematic Bottom View
X1-DFN1006-2
RJ
RJ = Product Type Marking Code
Line Denotes Pin 1
