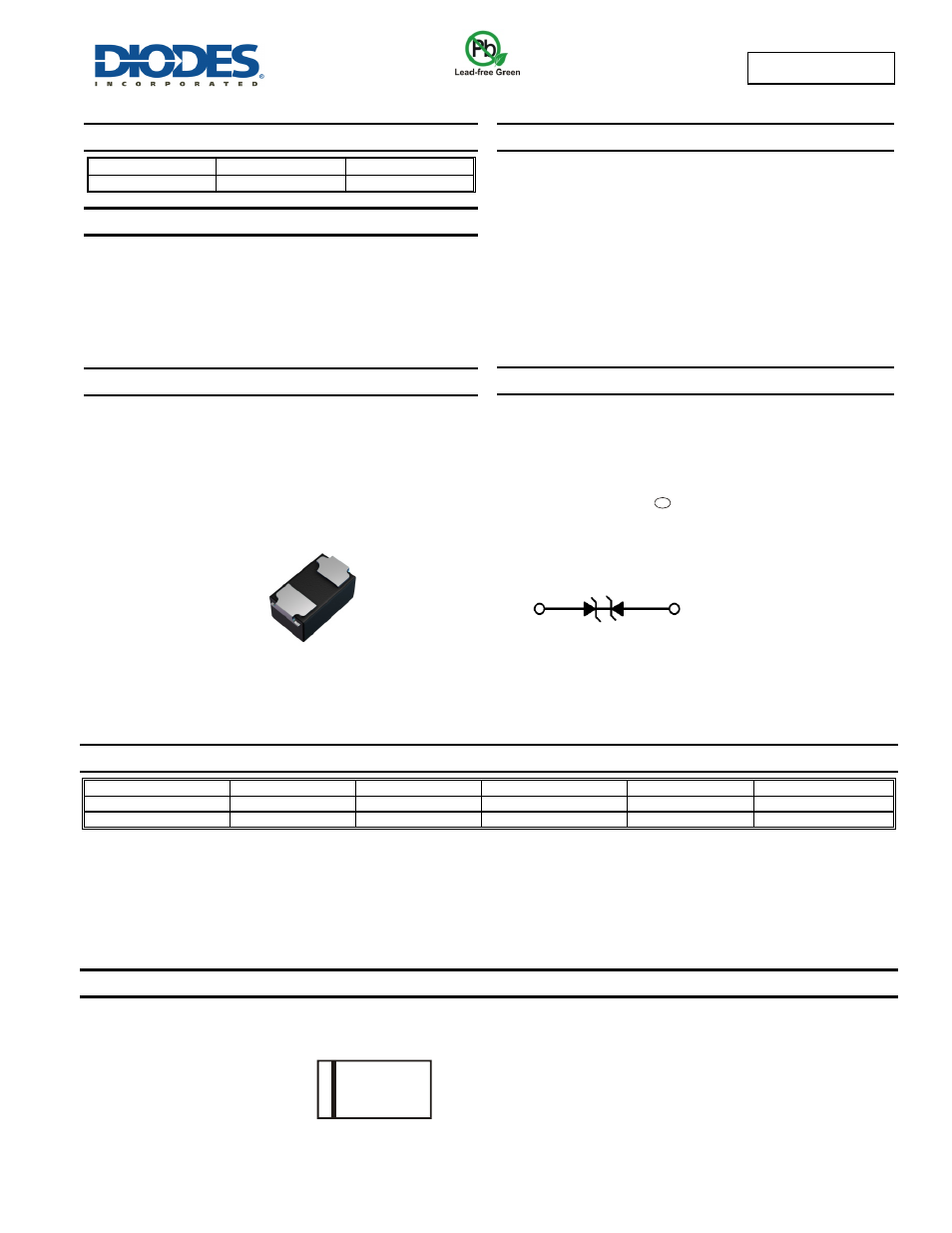

Diodes D5V0L1B2LPS User Manual
Product summary, Description, Applications
D5V0L1B2LPS
Document number: DS36586 Rev. 1 - 2
1 of 5
March 2014
© Diodes Incorporated
D5V0L1B2LPS
ADVAN
CE I
N
F
O
RM
ATI
O
N
5V BIDIRECTIONAL TVS DIODE
Product Summary
V
BR (min)
I
PP (max)
C
T (typ)
6V 6A 15pF
Description
This new generation TVS is designed to protect sensitive electronics
from the damage due to ESD. The combination of small size and high
ESD surge capability makes it ideal for use in portable applications
such as cellular phones, digital cameras, and MP3 players. The
sidewall plating option of this package allows optical inspection after
soldering reflow for easy and reliable quality control.
Applications
Cellular
Handsets
Portable
Electronics
Computers
and
Peripheral
Features
Low Profile Package (0.53mm max) and Ultra-small PCB Footprint
Area (1.08 * 0.68mm max) Suitable for Compact Portable
Electronics
Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±30kV, Contact ±30kV
1 Channel of ESD Protection
Low Channel Input Capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
PPAP Capable
Mechanical Data
Case: U-DFN1006-2/SWP with sidewall plating
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: NiPdAu over Copper leadframe. Solderable per MIL-
STD-202, Method 208
Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Product
Compliance Marking
Reel Size (inches)
Tape Width (mm)
Quantity per Reel
D5V0L1B2LPS-7B
AEC-Q101
SI
7
8
10,000/Tape & Reel
D5V0L1B2LPSQ-7B
Automotive
SI
7
8
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
e4
Device Schematic
SI = Product Type Marking Code
SI
Bottom View
