D5V0L1B2LP3
Document number: DS35533 Rev. 7 - 2
4 of 5
www.diodes.com
July 2013
© Diodes Incorporated
D5V0L1B2LP3
NEW PROD
UC
T
-40
-35
-30
-25
-20
-15
-10
-5
0
5
t (ns)

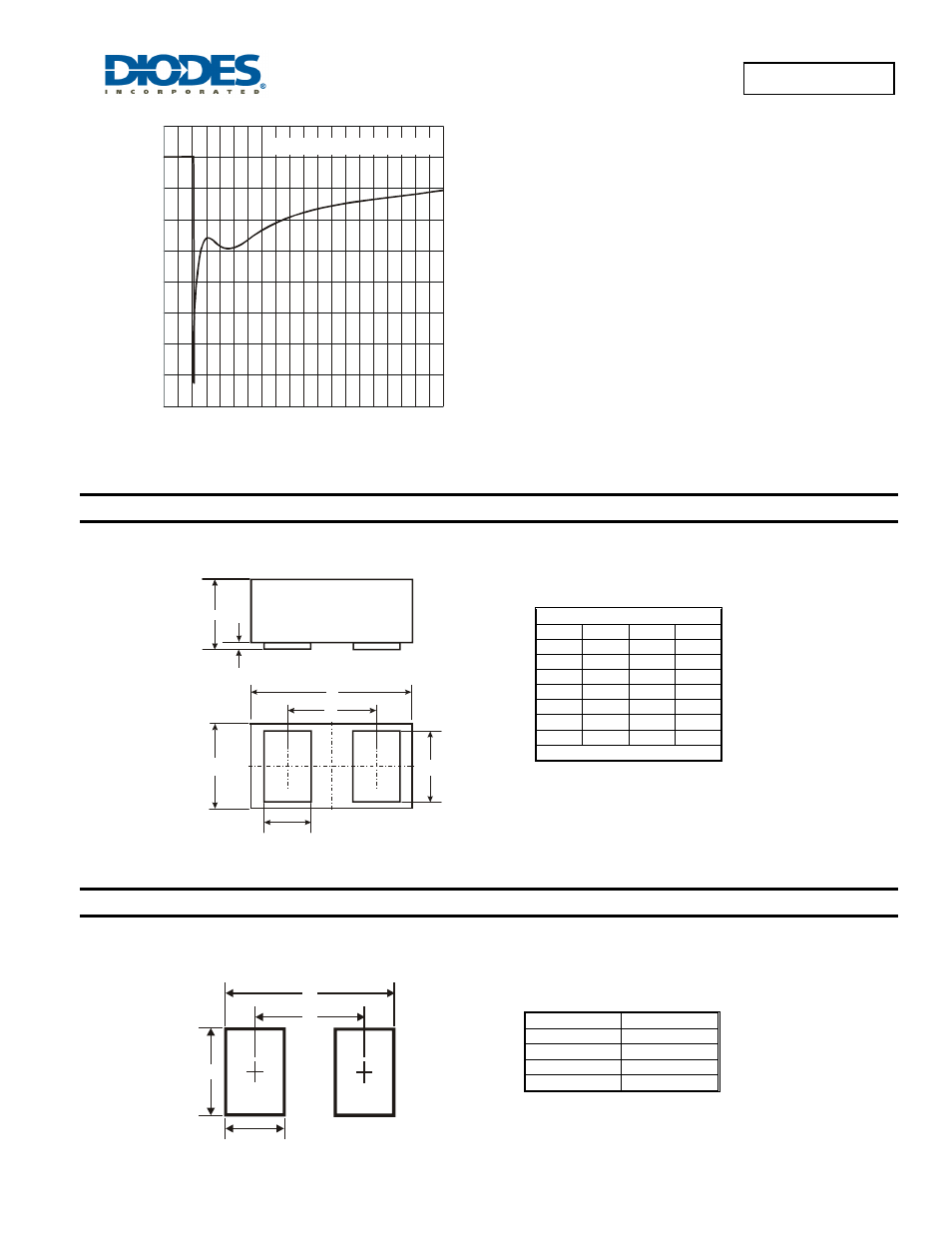

Figure 9 Typical Clamping Performance
@ -8kV Contact Discharge
V (
V
)
C
-ESD
IEC 61000-4-2 -8kV Contact Discharge
0 20 40 60 80 100 120 140 160 180 200
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for latest version.
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for latest version.
X3-DFN0603-2
Dim Min Max Typ
A 0.27 0.35 0.30
A1 0.00 0.03 0.02
b 0.19 0.29 0.24
D 0.595 0.645 0.62
E 0.295 0.345 0.32
e - - 0.355
L 0.14 0.24 0.19
All Dimensions in mm
Dimensions Value (in mm)
C 0.355
X 0.230
Y 0.300
Z 0.610
Z
Y (2x)
X (2x)
C
L (2x)
E b (2x)
D
A1 (2x)
A
e
