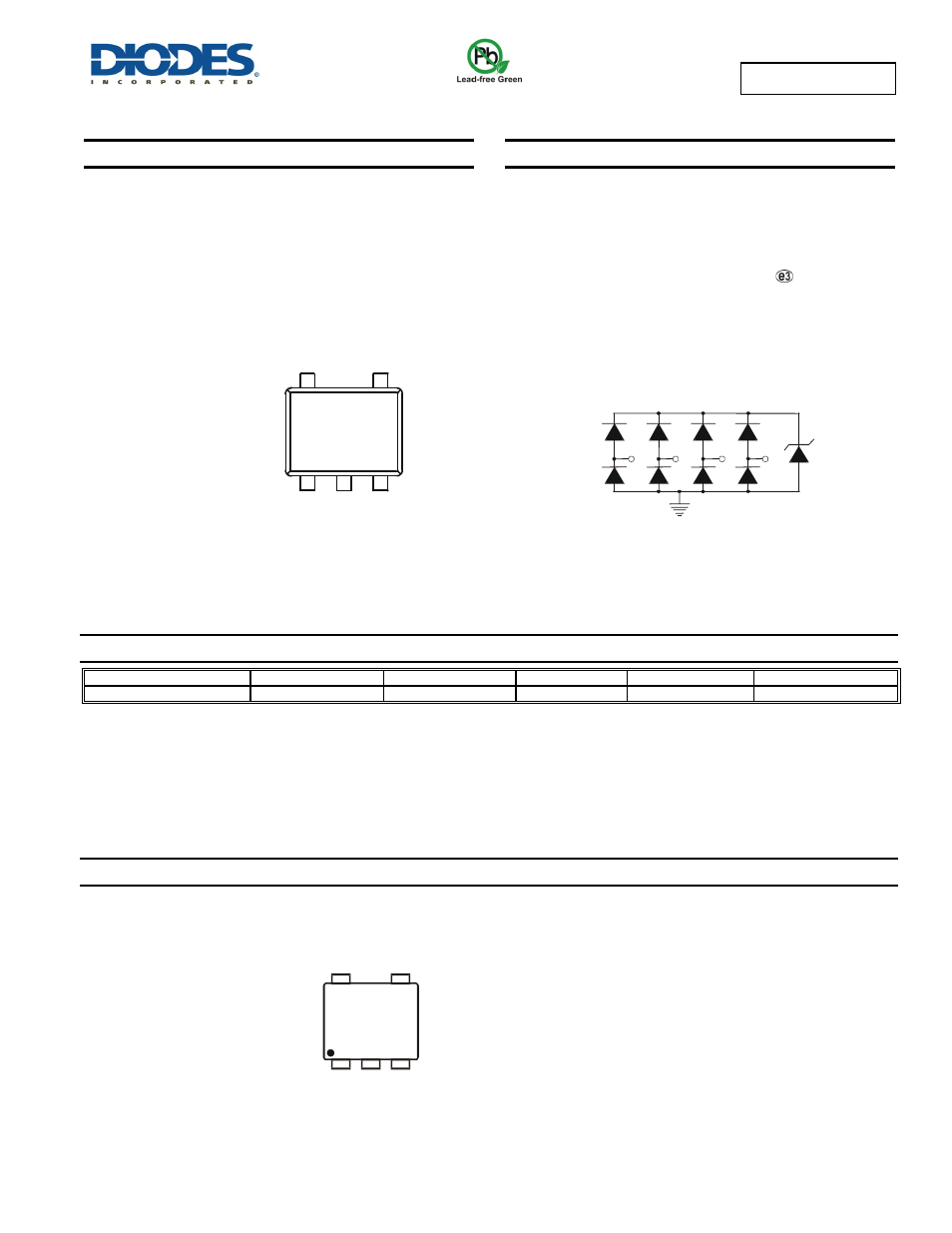

D5V0F4U5P5
4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Features
 IEC 61000-4-2 (ESD): Air – ±15kV, Contact – ±12kV
 4 Channels of ESD Protection
 Low Channel Input Capacitance of 0.5pF Typical
 Typically Used at High Speed Ports such as USB 2.0,
IEEE1394, Serial ATA, DVI, HDMI, PCI
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
 Case: SOT953
 Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminal Finish: Matte Tin, Annealed Over Copper Leadframe.
Solderable per MIL-STD-202, Method 208
 Weight: 0.002 grams (approximate)
Ordering Information
(Note 4)
Product Compliance Marking Reel size(inches) Tape width(mm) Quantity per reel
D5V0F4U5P5-7 AEC-Q101 V3 7 8 10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Pin Description (Top View)
V3 = Product type marking code
Device Schematic
Pin 1 Pin 3
2
Pin 5 Pin 4
5 4
3 2 1
V3
