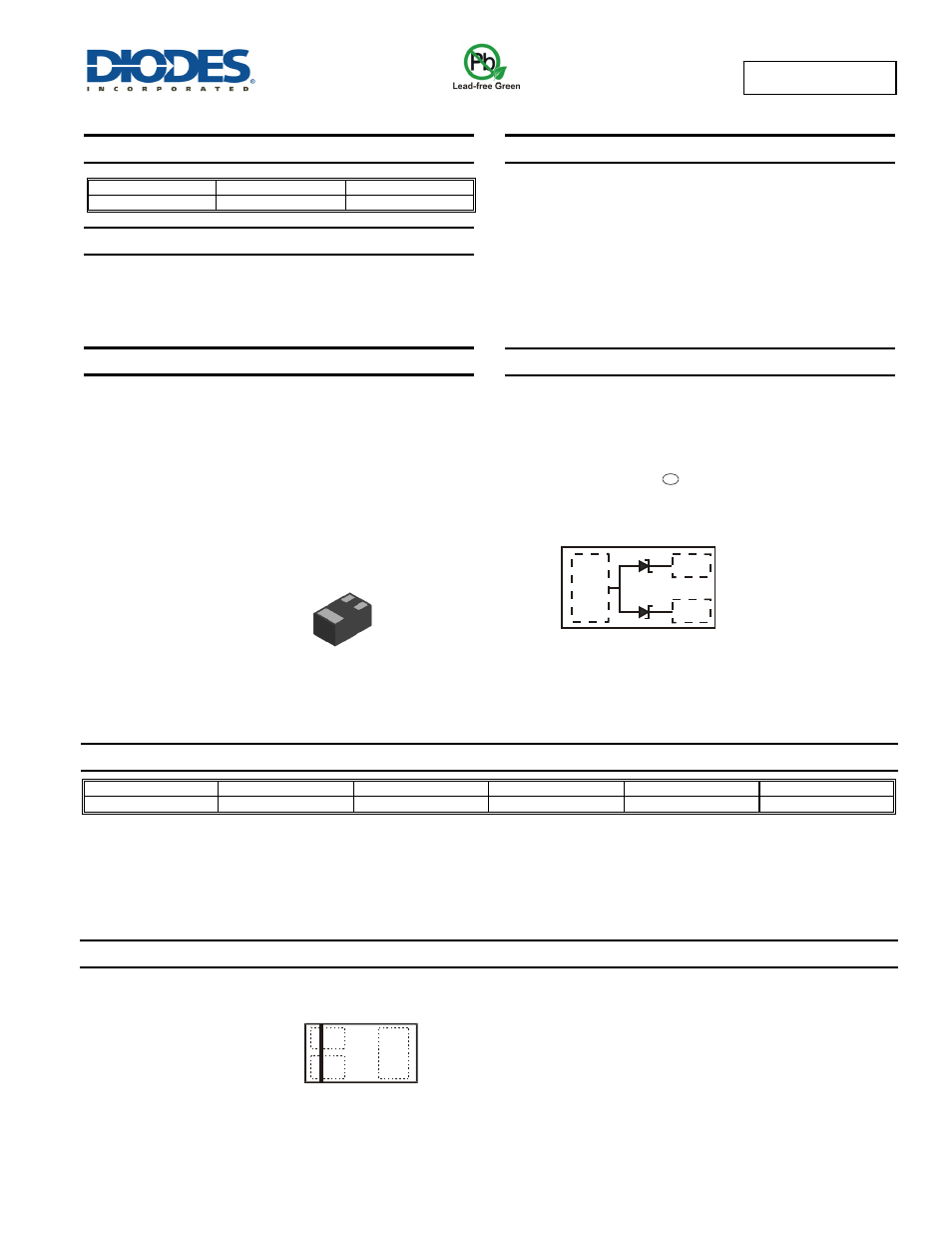

Diodes D5V0F2U3LP User Manual
D5v0f2u3lp, Product summary, Description
D5V0F2U3LP
Document number: DS36742 Rev. 1 - 2
1 of 4
April 2014
© Diodes Incorporated
D5V0F2U3LP
2 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Product Summary
V
BR (min)
I
PP (max)
C
T (typ)
6V 1.5A
0.5pF
Description
This new generation TVS is designed to protect sensitive electronics
from the damage due to ESD. The combination of small size and high
ESD surge capability makes it ideal for use in portable applications
such as cellular phones, digital cameras, and MP3 players.
Applications
Cellular
Handsets
Portable
Electronics
Computers
and
Peripheral
Features
Low Profile Package (0.53mm max) and Ultra-small PCB
Footprint Area (1.08 x 0.68mm max) Suitable for Compact
Portable Electronics
Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±15kV, Contact ±15kV
2 Channels of ESD Protection
Low Channel Input Capacitance
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
Case:
X1-DFN1006-3
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: NiPdAu over Copper leadframe. Solderable per MIL-
STD-202, Method 208
Weight: 0.001 grams (approximate)
Ordering Information
(Note 4)
Product
Compliance Marking
Reel Size (inches)
Tape Width (mm)
Quantity per Reel
D5V0F2U3LP-7B
Standard
Q1
7
8
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
e4
Device Schematic
X1-DFN1006-3
Bottom View
Q19 = Product Type Marking Code
Top View
Bar Denotes
Cathode Side
Q1
