D1213A-04MR
Document number: DS35595 Rev. 6 - 2
1 of 5
November 2012
© Diodes Incorporated
D1213A-04MR
ADVAN
CE I
N
F
O
RM
ATI
O
N
4 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Features
•
IEC 61000-4-2 (ESD): Air ±15kV, Contact ±8kV
•
4 Channels of ESD Protection
•
Low Channel Input Capacitance of 0.85pF Typical
•
Typically Used at High Speed Ports such as USB 2.0,
IEEE1394, Serial ATA, DVI, HDMI, PCI
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
MSOP-10
•
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Copper leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Weight: 0.026 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
D1213A-04MR-13
MSOP-10
2500/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Pin# Description
1, 4, 6, 9
Inputs
2, 5, 7, 10
No Connection
8 V
N
, Ground
3 Vp,
Power

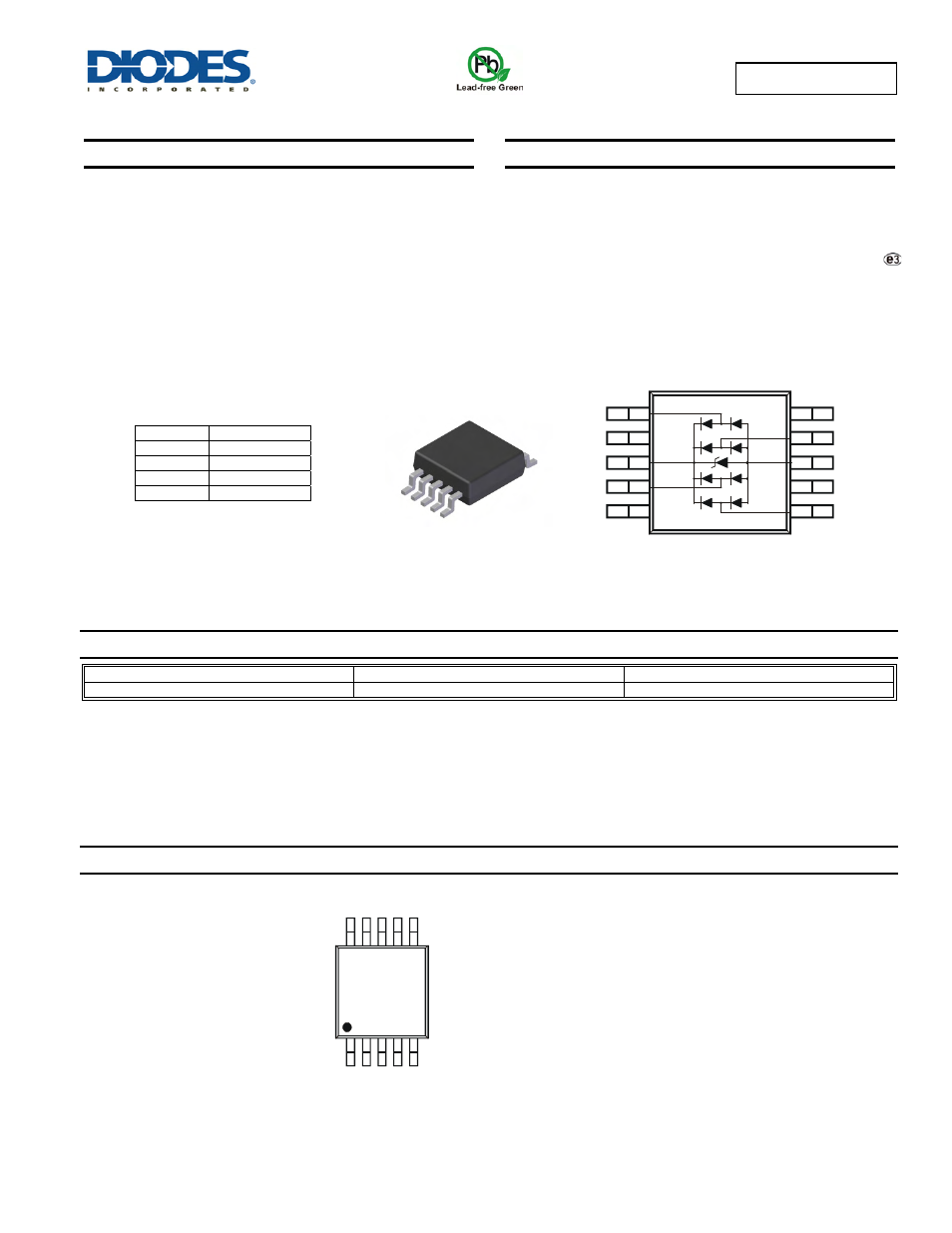

Device Schematic
Top View
MSOP-10
10
9
7
6
8
2
4
5
3
1
Ch1
NC
V
P
Ch2
NC
NC
Ch4
V
N
NC
Ch3
Pin Description
TV13
YYWW
TV13 = Product Type Marking Code
YYWW = Date Code Marking
YY = Last Two Digits of Year (ex: 12 = 2012)
WW = Week Code (01 ~ 53)
