Diodes D1213A-02WL User Manual
Features, Mechanical data, Ordering information

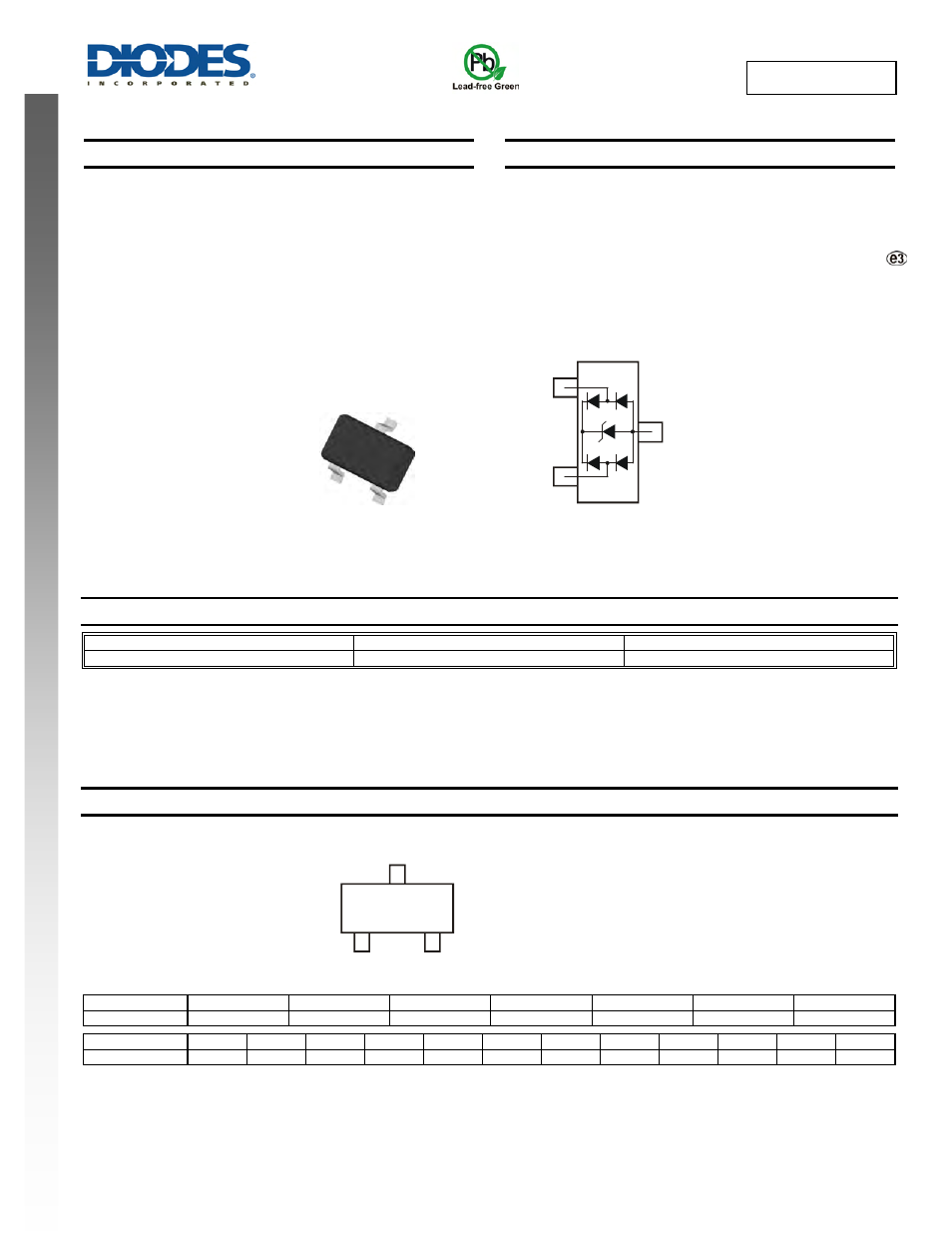

D1213A-02WL
Document number: DS35602 Rev. 9 - 2
1 of 4
October 2012
© Diodes Incorporated
D1213A-02WL
NEW PROD
UC
T
2 CHANNEL LOW CAPACITANCE TVS DIODE ARRAY
Features
•
IEC 61000-4-2 (ESD): Air ±15kV, Contact ±8kV
•
2 Channels of ESD protection
•
Low Channel Input Capacitance of 0.85pF Typical
•
Typically Used at High Speed Ports such as USB 2.0,
IEEE1394, Serial ATA, DVI, HDMI, PCI
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT323
•
Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Weight: 0.006 grams (Approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
D1213A-02WL-7
SOT323
3,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y
Z
A
B
C D
E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
Device Schematic
TE3 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September)
SOT323
TE3
YM
CH 1
CH 2
GND
