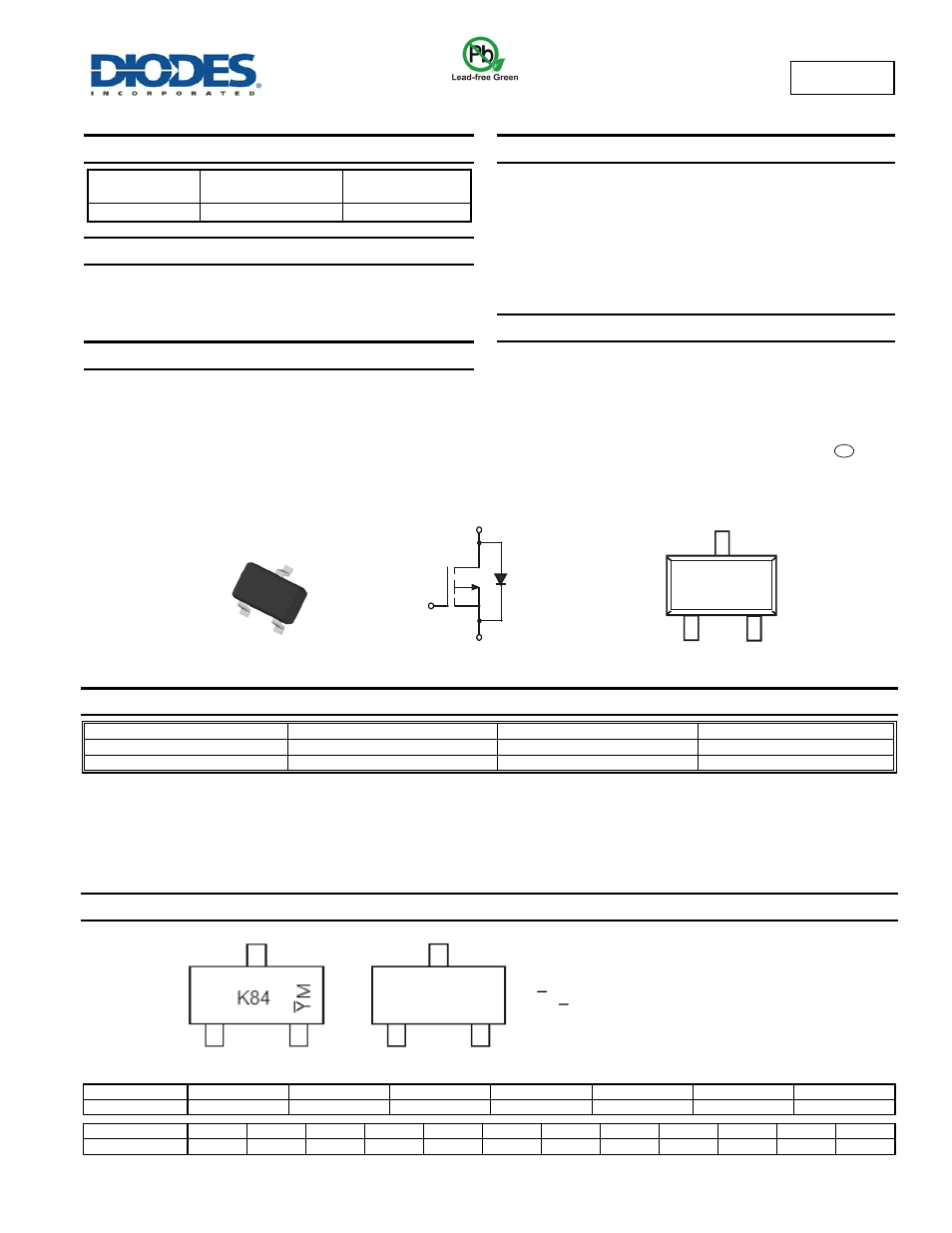

BSS84W
Document number: DS30205 Rev. 15 - 2
1 of 5
www.diodes.com
September 2013
© Diodes Incorporated
BSS84W
P-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR
Product Summary
V
(BR)DSS
R
DS(ON)
I
D
T
A
= +25°C
-50V 10 Ω V
GS
= -5V -130mA
Description
This MOSFET has been designed to minimize the on-state
resistance (R
DS(ON) ) and yet maintain superior switching performance,
making it ideal for high efficiency power management applications.
Applications
 General Purpose Interfacing Switch
 Power Management Functions
 Analog
Switch
Features
 Low
On-Resistance
 Low Gate Threshold Voltage

Low Input Capacitance

Fast Switching Speed
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
 Case:
SOT323
 Case Material: Molded Plastic, "Green" Molding Compound, UL
Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminal Connections: See Diagram
 Terminals: Solderable per MIL-STD-202, Method 208

Lead Free Plating (Matte Tin Finish annealed over Alloy 42
leadframe).
 Weight: 0.006 grams (approximate)
Ordering Information
(Note 4 & 5)
Part Number Compliance Case Packaging
BSS84W-7-F Standard SOT323 3000 / Tape & Reel
BSS84WQ-7-F Automotive SOT323 3000 / Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
5. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_grade_definitions/.
Marking Information
Date Code Key
Year 2012 2013 2014 2015 2016 2017 2018
Code Z A B C D E F
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
SOT323
Top View Equivalent Circuit Top View
Source
Gate
Drain
G S
D
K84
YM
e3
Chengdu A/T Site Shanghai A/T Site
K84 = Product Type Marking Code
YM = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YM = Date Code Marking for CAT (Chengdu Assembly/ Test site)
Y or Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
