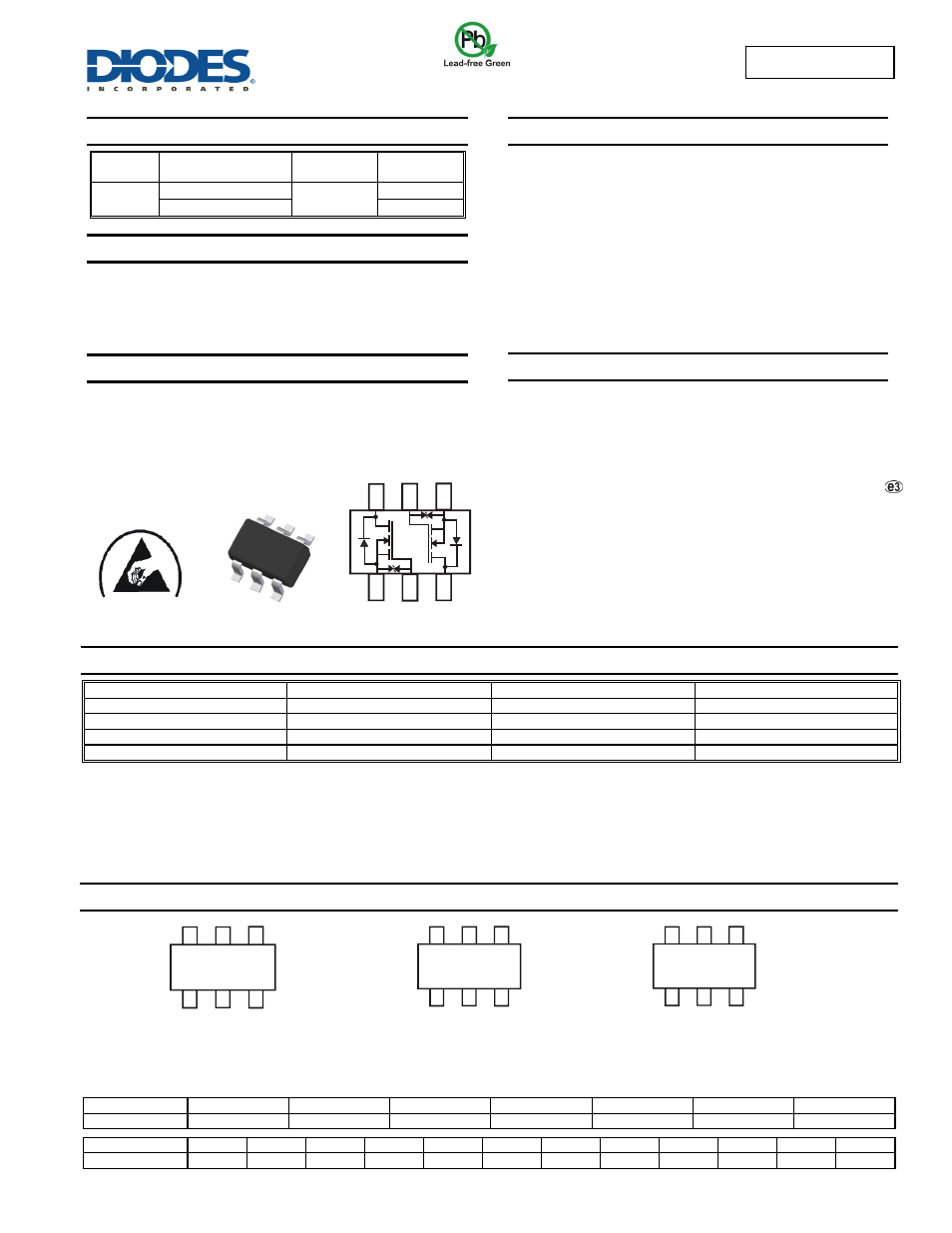

2N7002DWA
Document number: DS36120 Rev. 6 - 2
1 of 5
www.diodes.com
October 2013
© Diodes Incorporated
2N7002DWA
NEW PROD
UC
T
DUAL N-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V
(BR)DSS
R
DS(ON)
Package
I
D
T
A
= +25°C
60V
8Ω @ V
GS
= 5V
SOT363
170mA
6Ω @ V
GS
= 10V 200mA
Description
This new generation MOSFET has been designed to minimize the
on-state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
• DC-DC Converters
• Power Management Functions
• Battery Operated Systems and Solid-State Relays
• Drivers: Relays, Solenoids, Lamps, Hammers, Displays,
Memories, Transistors, etc
Features
• Dual N-Channel MOSFET
• Low On-Resistance
• Low Gate Threshold Voltage
• Low Input Capacitance
• Fast Switching Speed
• Small Surface Mount Package
• HBM Class 1C
• Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case: SOT363
• Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
• Terminal Connections: See Diagram
• Weight: 0.006 grams (approximate)
Ordering Information
(Note 4 & 5)
Part Number Compliance Case Packaging
2N7002DWA -7 Standard SOT363 3,000/Tape & Reel
2N7002DWA -13 Standard SOT363 10,000/Tape & Reel
2N7002DWAQ -7 Automotive SOT363 3,000/Tape & Reel
2N7002DWAQ -13 Automotive SOT363 10,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2012 2013 2014 2015 2016 2017 2018
Code Z A B C D E F
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
SOT363
Top View
Top View
Internal Schematic
S
1
D
1
D
2
S
2
G
1
G
2
MM0 YM
MM0 Y M
MM1 YM
MM1 YM
MM4 YM
MM4 YM
MM0 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September)
MM1 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September) MM4 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September)
HBM Class 1C
