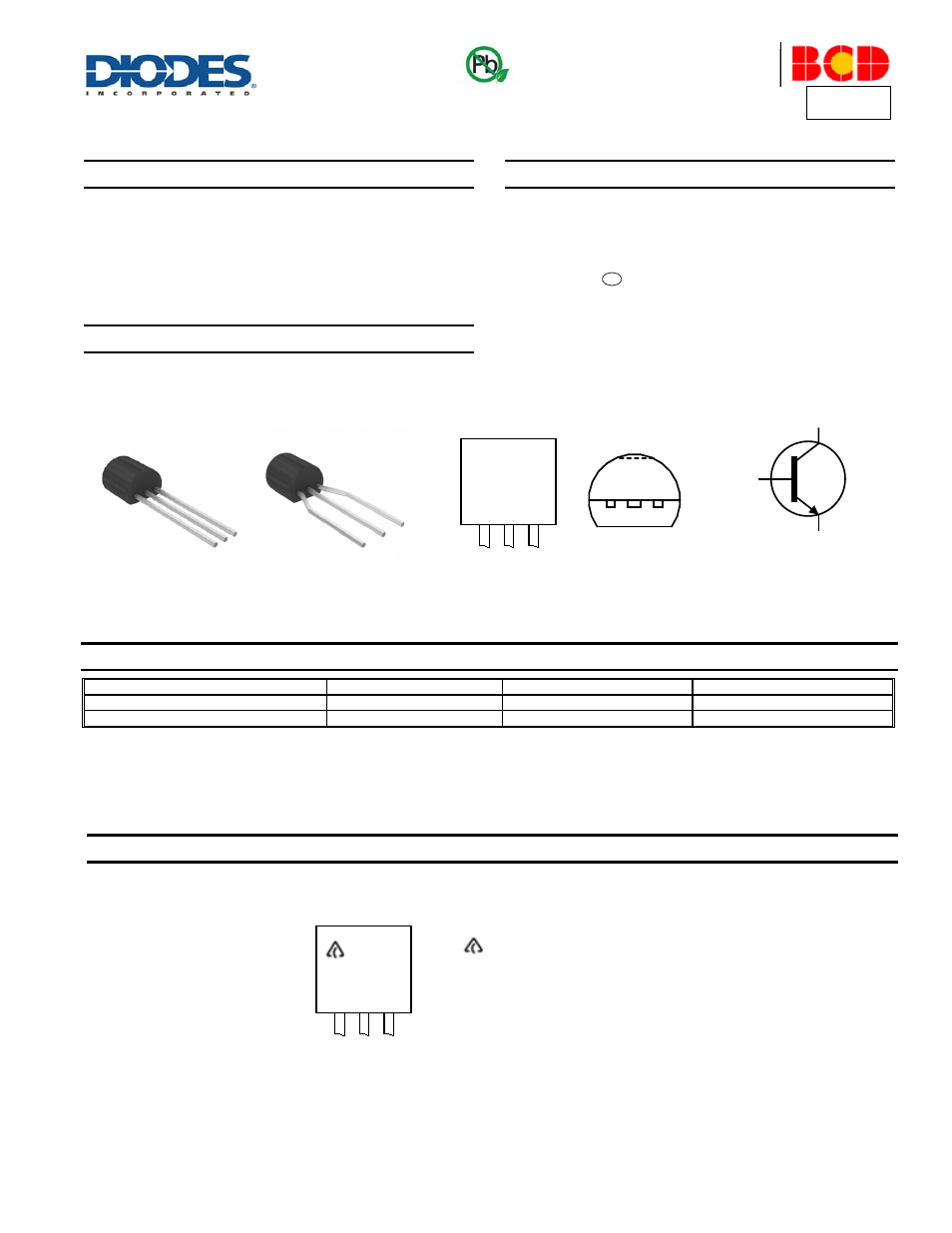

APT27
Datasheet Number: DS36301 Rev.1 - 2
1 of 5
July 2013
© Diodes Incorporated
A Product Line of
Diodes Incorporated
APT27
450V NPN HIGH VOLTAGE POWER TRANSISTOR
Features
BV
CEO
> 450V
BV
CES
> 700V
BV
EBO
> 9V
I
C
= 0.8A high Continuous Collector Current
Lead-Free Finish; RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Application
Battery Charges for Mobile Phone
Power Supply for DVD / STB
Mechanical Data
Case:
TO92
Case Material: Molded Plastic, "Green" Molding Compound; UL
Flammability Classification Rating 94V-0
Terminals: Matte Tin Finish; Solderable per MIL-STD-202,
Method 208
Weight: TO92: 200mg (Approximate)
Ordering Information
(Note 4)
Product Package
Marking
Quantity
APT27Z-G1
TO92 (Straight Legs)
APT27Z-G1
10,000 Bulk, Loose per Box
APT27ZTR-G1
TO92 (Joggled Legs)
APT27Z-G1
2,000 Taped, per Ammo Box
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Device Schematic
C
E
B
= Manufacturers’ code marking
APT27Z-G1 = Product Type Marking ID
YWW = Date Code Marking
e.g 312 = Year 2013, Week 12
8 = Assembly site code
XX = Batch Number
e3
TO92
(Bulk)
TO92
(Ammo)
Flat Face
View
Pin-Out
E
C
B
Bottom View
B
C
E
Green
APT27Z
-G1
YWW8XX
Flat Face
View
