BCP5616Q
Datasheet Number: DS36981 Rev.1 - 2
1 of 7
www.diodes.com
March 2014
© Diodes Incorporated

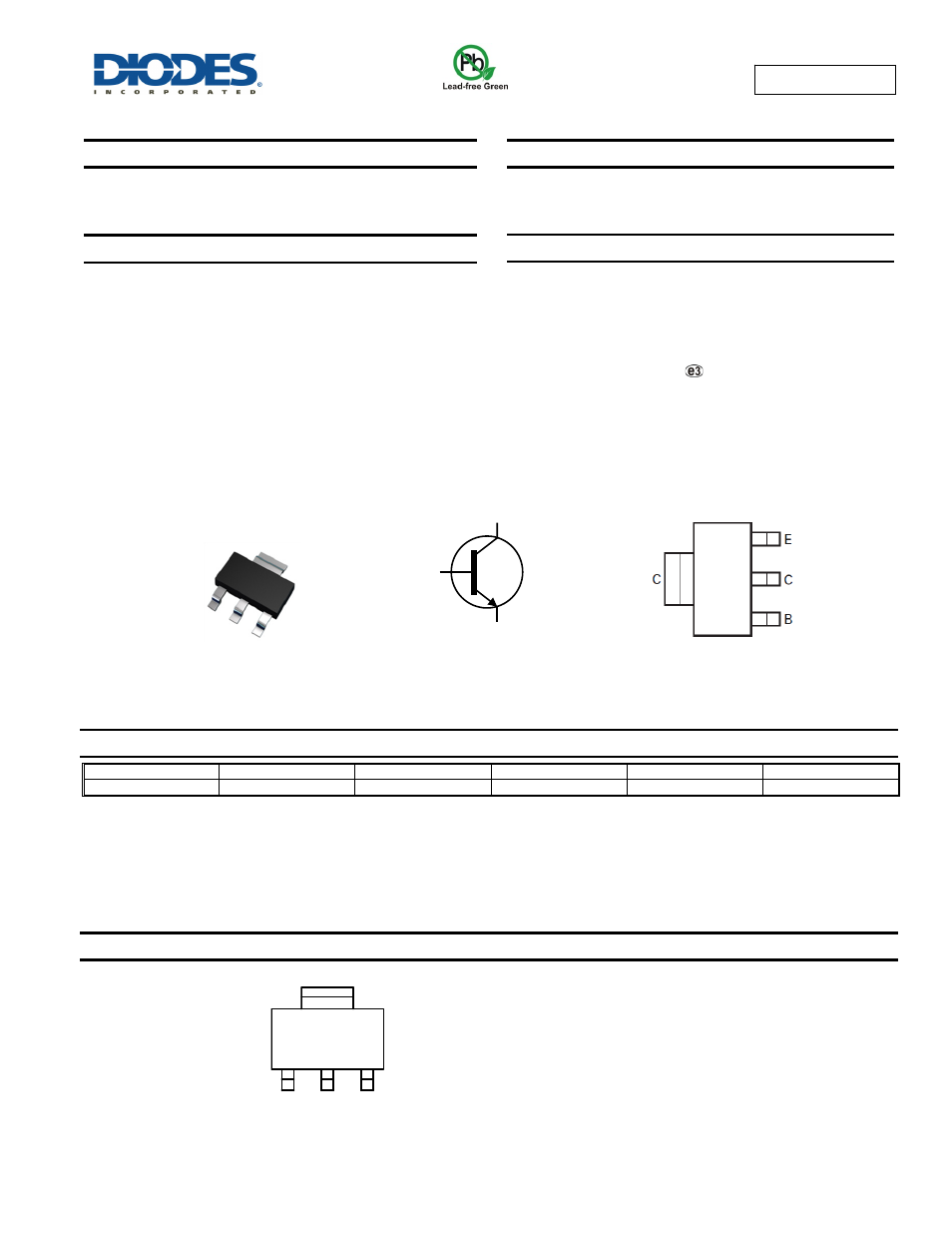

BCP5616Q
80V NPN MEDIUM POWER TRANSISTORS IN SOT223
Description
This Bipolar Junction Transistor (BJT) has been designed to meet the
stringent requirements of Automotive Applications.
Features
 BV
CEO
> 80V
 I
C
= 1A High Continuous Collector Current
 I
CM
= 2A Peak Pulse Current
 2W Power Dissipation
 Low Saturation Voltage V
CE(sat)
< 500mV @ 0.5A
 Complementary PNP Type: BCP5316Q
 Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
 PPAP Capable (Note 4)
Applications
 Medium Power Switching or Amplification Applications
 AF Driver and Output Stages
Mechanical Data
 Case: SOT223
 Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
 Weight: 0.112 grams (approximate)
Ordering Information
(Notes 4 & 5)
Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel
BCP5616QTA Automotive BCP 5616 7 12 1,000
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
C
E
B
BCP = Product Type Marking Code, Line 1
5616 = Product Type Marking Code, Line 2
Device Symbol
Top View
SOT223
Top View
Pin-Out
BCP
5616
