BCX54 / 55 / 56
Datasheet Number: DS35369 Rev. 6 – 2
1 of 7
March 2014
© Diodes Incorporated
BCX54 /55 /56
NPN MEDIUM POWER TRANSISTORS IN SOT89
Features
BV
CEO
> 45V, 60V & 80V
I
c
= 1A Continuous Collector Current
I
CM
= 1.5A Peak Pulse Current
Low Saturation Voltage V
CE(sat)
< 500mV @ 0.5A
Gain Groups 10 and 16
Epitaxial Planar Die Construction
Complementary PNP types: BCX51, 52, and 53
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SOT89
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Leads, Solderable per MIL-STD-202
Method 208
Weight: 0.055 grams (Approximate)
Applications
Medium Power Switching or Amplification Applications
AF driver and output stages
Ordering Information
(Note 4)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
BCX54TA AEC-Q101 BA
7
12
1,000
BCX5410TA AEC-Q101
BC
7
12
1,000
BCX5416TA AEC-Q101
BD
7
12
1,000
BCX5416-13R AEC-Q101
BD
13
12
4,000
BCX55TA AEC-Q101 BE
7
12
1,000
BCX5510TA AEC-Q101
BG
7
12
1,000
BCX5516TA AEC-Q101
BM
7
12
1,000
BCX56TA AEC-Q101 BH
7
12
1,000
BCX5610TA AEC-Q101
BK
7
12
1,000
BCX5616TA AEC-Q101
BL
7
12
1,000
BCX5616TC AEC-Q101
BL
13
12
4,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
xx = Product Type Marking Code, as follows:
BCX54 = BA
BCX55 = BE
BCX56 = BH
BCX5410 = BC
BCX5510 = BG
BCX5610 = BK
BCX5416 = BD
BCX5516 = BM
BCX5616 = BL

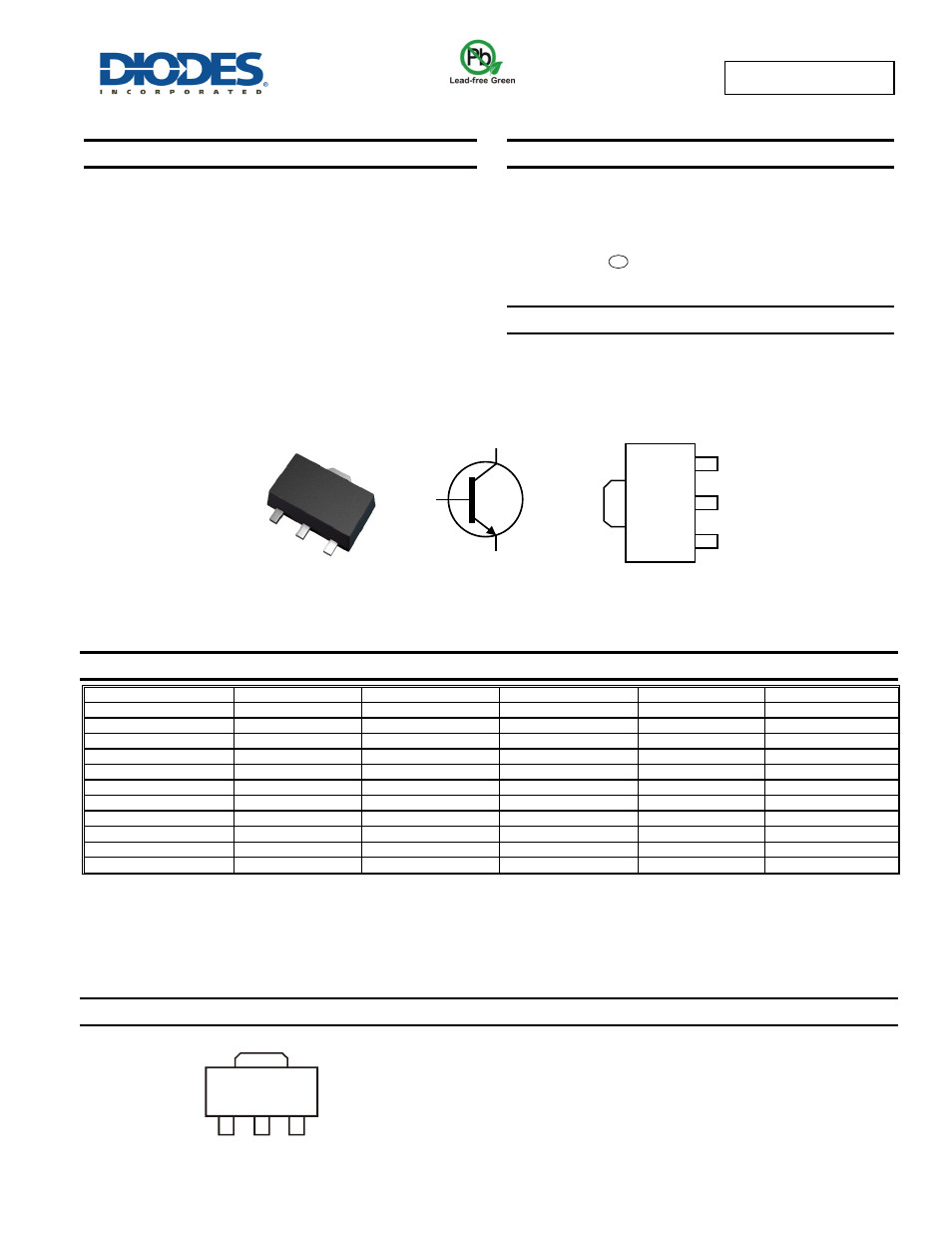

Top View
Device Symbol
Top View
Pin-Out
SOT89
C
E
C
B
C
E
B
xx
e3
