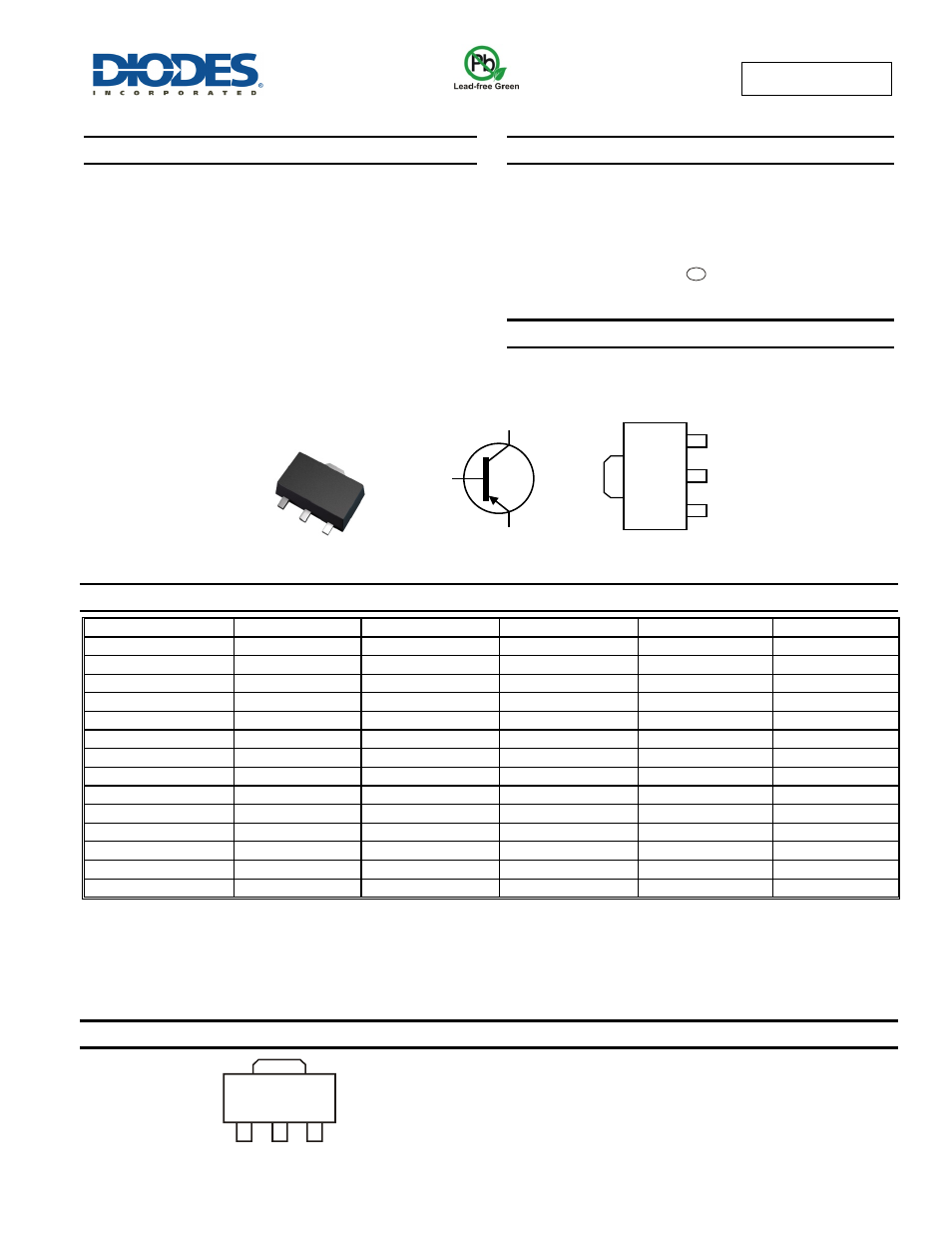

BCX51/ 52/ 53

PNP MEDIUM POWER TRANSISTORS IN SOT89

Features

 BV

CEO

> -45V, -60V & -80V

I

C

= -1A Continuous Collector Current

I

CM

= -1.5A Peak Pulse Current

Low Saturation Voltage V

CE(SAT)

< -500mV @ -0.5A

Gain groups 10 and 16

Complementary NPN types: BCX54, 55, and 56

Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)

Halogen and Antimony Free. "Green" Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Mechanical Data

 Case:

SOT89

Case Material: Molded Plastic, “Green” Molding Compound

UL Flammability Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish Leads, Solderable per
MIL-STD-202 Method 208

Weight: 0.052 grams (Approximate)

Applications

Medium Power Switching or Amplification Applications

AF Driver and Output Stages












Ordering Information

(Notes 4 & 5)

Product

Compliance

Marking

Reel Size (inches)

Tape Width (mm)

Quantity per Reel

BCX51TA AEC-Q101 AA

7

12

1,000

BCX51-13R AEC-Q101

AA

13

12

4,000

BCX5110TA

AEC-Q101

AC 7 12

1,000

BCX5116TA

AEC-Q101

AD 7 12

1,000

BCX5116TC

AEC-Q101

AD 13 12

4,000

BCX52TA AEC-Q101 AE

7

12

1,000

BCX5210TA AEC-Q101

AG

7

12

1,000

BCX5216TA AEC-Q101

AM

7

12

1,000

BCX5216QTA Automotive

AM

7

12

1,000

BCX53TA

AEC-Q101

AH 7 12

1,000

BCX5310TA AEC-Q101

AK

7

12

1,000

BCX5316TA AEC-Q101

AL

7

12

1,000

BCX5316TC AEC-Q101

AL

13

12

4,000

BCX5316-13R AEC-Q101

AL

13

12

4,000

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally

the same, except where specified.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information






xx = Product Type Marking Code, as follows:

BCX51 = AA

BCX52 = AE

BCX53 = AH

BCX5110 = AC

BCX5210 = AG

BCX5310 = AK

BCX5116 = AD

BCX5216 = AM

BCX5316 = AL

C

E

B

Top View

Device Symbol

Top View

Pin-Out

SOT89

C

E

C

B

xx

e3
