BCW68H
A Product Line of
Diodes Incorporated
45V PNP MEDIUM POWER TRANSISTOR IN SOT23
Features
• BV
CEO
> -45V
•
I
C
= -800mA high Continuous Collector Current
•
Low Saturation Voltage V
CE(sat)
< -300mV @ 100mA
•
Complementary NPN Type: BCW66H
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case Material: molded plastic, “Green” molding compound
•
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish – Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
•
Weight 0.008 grams (approximate)
Ordering Information
(Note 4)
Part Number
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
BCW68HTA DH
7
8
3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information

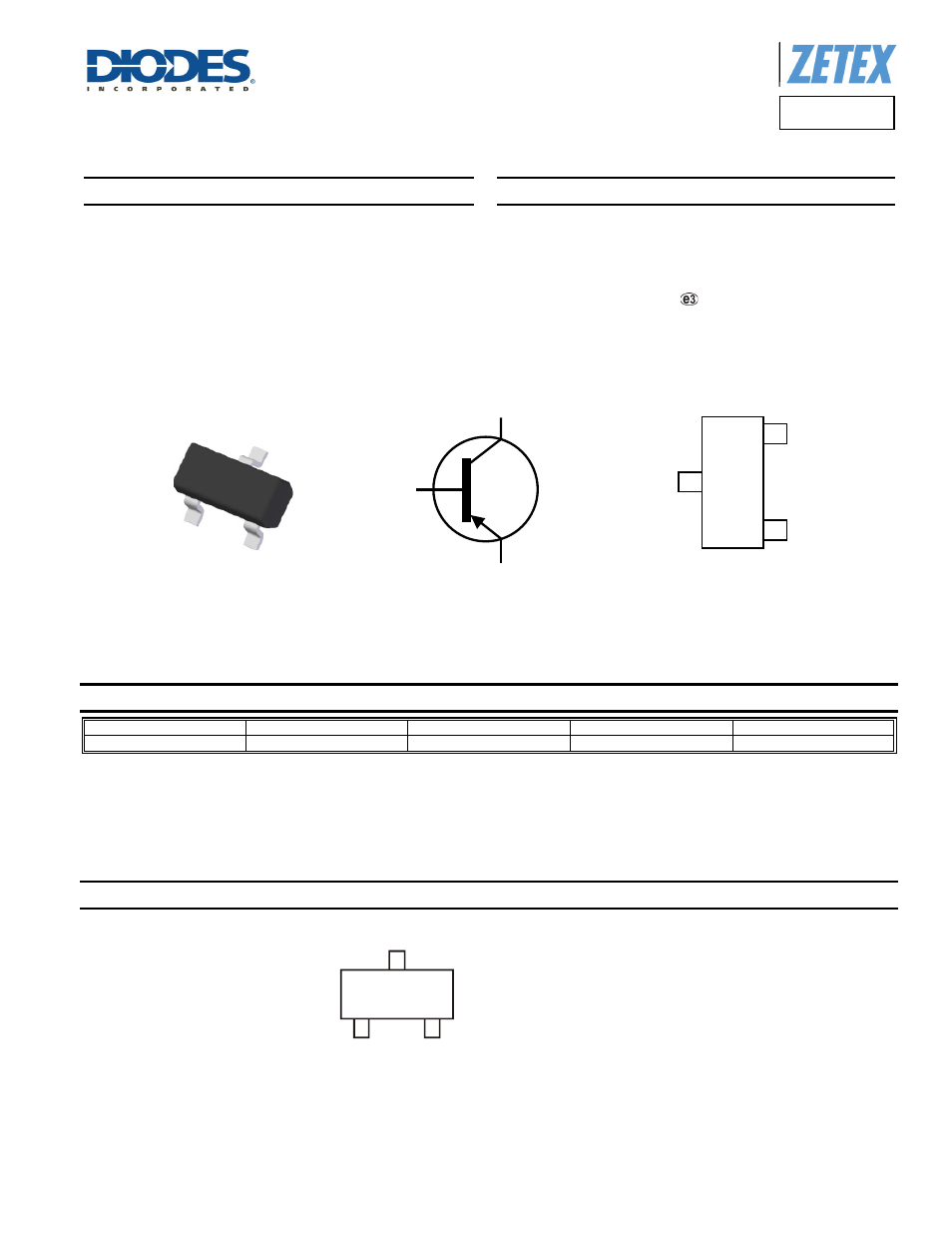

SOT23
Device Symbol
Top View
Pin Configuration
Top View
C
E
B
DH = Product Type Marking Code
DH
C
E
B
