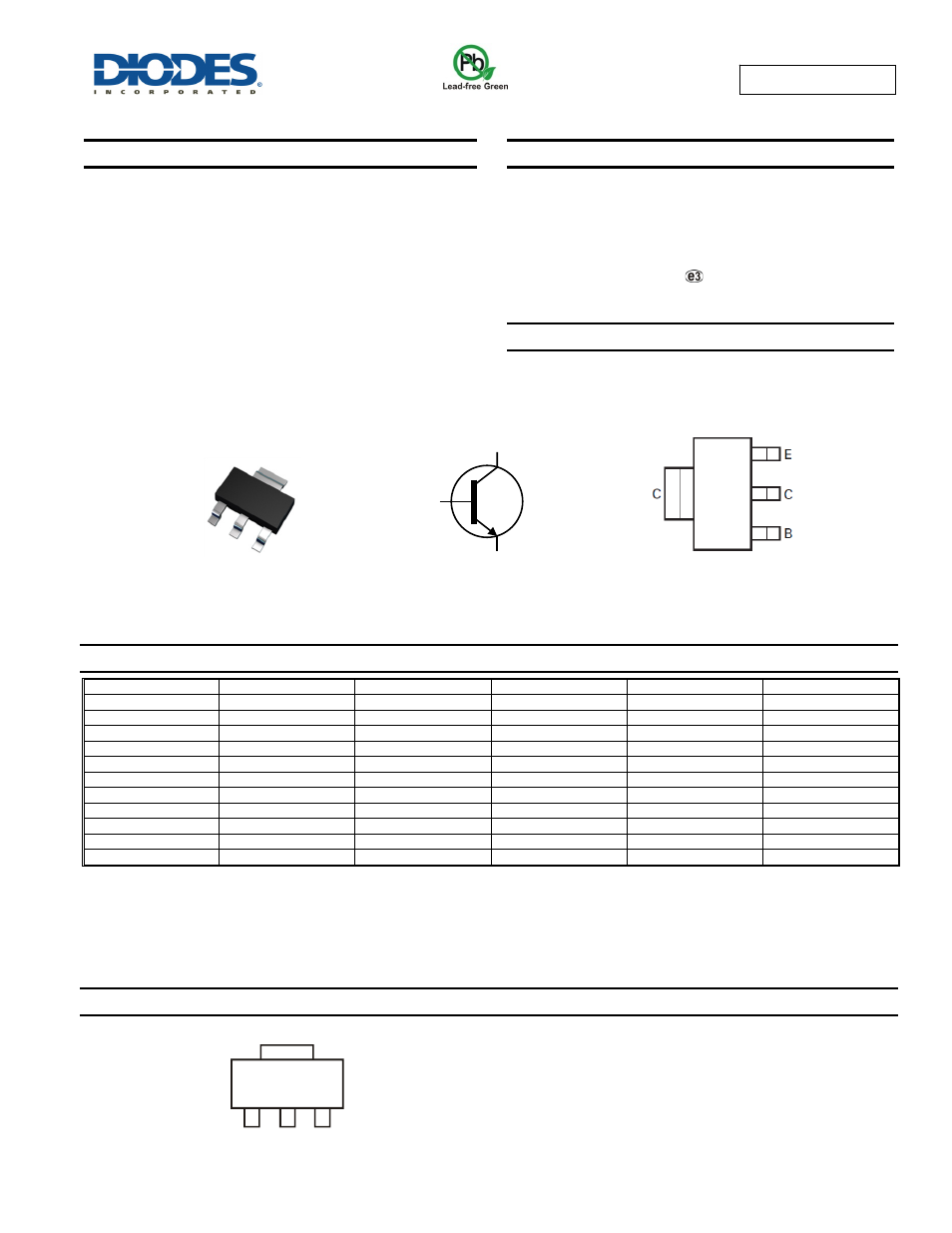

BCP 54/ 55/ 56
NPN MEDIUM POWER TRANSISTORS IN SOT223
Features
BV
CEO
> 45V, 60V & 80V
I
C
= 1A High Continuous Collector Current
I
CM
= 2A Peak Pulse Current
2W Power Dissipation
Low Saturation Voltage V
CE(sat)
< 500mV @ 0.5A
Gain Groups 10 and 16
Complementary PNP Types: BCP51, 52 and 53
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case:
SOT223
Case Material: Molded Plastic. “Green” Molding Compound.
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.112 grams (approximate)
Applications
Medium Power Switching or Amplification Applications
AF Driver and Output Stages
Ordering Information
(Notes 4 & 5)
Product
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
BCP54TA AEC-Q101 BCP
54
7
12
1,000
BCP5410TA AEC-Q101 BCP
5410
7
12
1,000
BCP5416TA AEC-Q101 BCP
5416
7
12
1,000
BCP5416QTA Automotive
BCP
5416
7
12
1,000
BCP55TA AEC-Q101 BCP
55
7
12
1,000
BCP5510TA AEC-Q101 BCP
5510
7
12
1,000
BCP5516TA AEC-Q101 BCP
5516
7
12
1,000
BCP56TA AEC-Q101 BCP
56
7
12
1,000
BCP5610TA AEC-Q101 BCP
5610
7
12
1,000
BCP5616TA AEC-Q101 BCP
5616
7
12
1,000
BCP5616TC AEC-Q101 BCP
5616
13
12
4,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified. For more information, please refer to
Marking Information
C
E
B
BCP = Product Type Marking Code, Line 1.
XXXX = Product Type Marking Code, Line 2 as follows:
BCP54 = 54
BCP55 = 55
BCP56 = 56
BCP5410 = 5410
BCP5510 = 5510
BCP5610 = 5610
BCP5416 = 5416
BCP5516 = 5516
BCP5616 = 5616
Device Symbol
xxxx
BCP
Top View
SOT223
Top View
Pin-Out
