BC847BS
Document number: DS30222 Rev. 13 - 2
1 of 5
February 2013
© Diodes Incorporated
BC847BS
DUAL NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR
Features
Ultra-Small Surface Mount Package
Ideally Suited for Automated Insertion
For switching and AF Amplifier Application
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. "Green" Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP capable (Note 4)
Mechanical Data
Case:
SOT363
Case Material: Molded Plastic, “Green” Molding Compound. UL
Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals:
Finish
Matte Tin Finish. Solderable per MIL-STD-
202, Method 208
Weight: 0.006 grams (approximate)
Ordering Information
(Notes 4 & 5)
Part Number
Compliance
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
BC847BS-7-F AEC-Q101
K1F
7
8
3,000
BC847BSQ-7-F Automotive
K1F
7
8
3,000
BC847BS-13-F AEC-Q101
K1F
13
8
10,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally
the same, except where specified.
5. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2010 2011
2012
2013
2014
2015
2016 2017
Code
X Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D

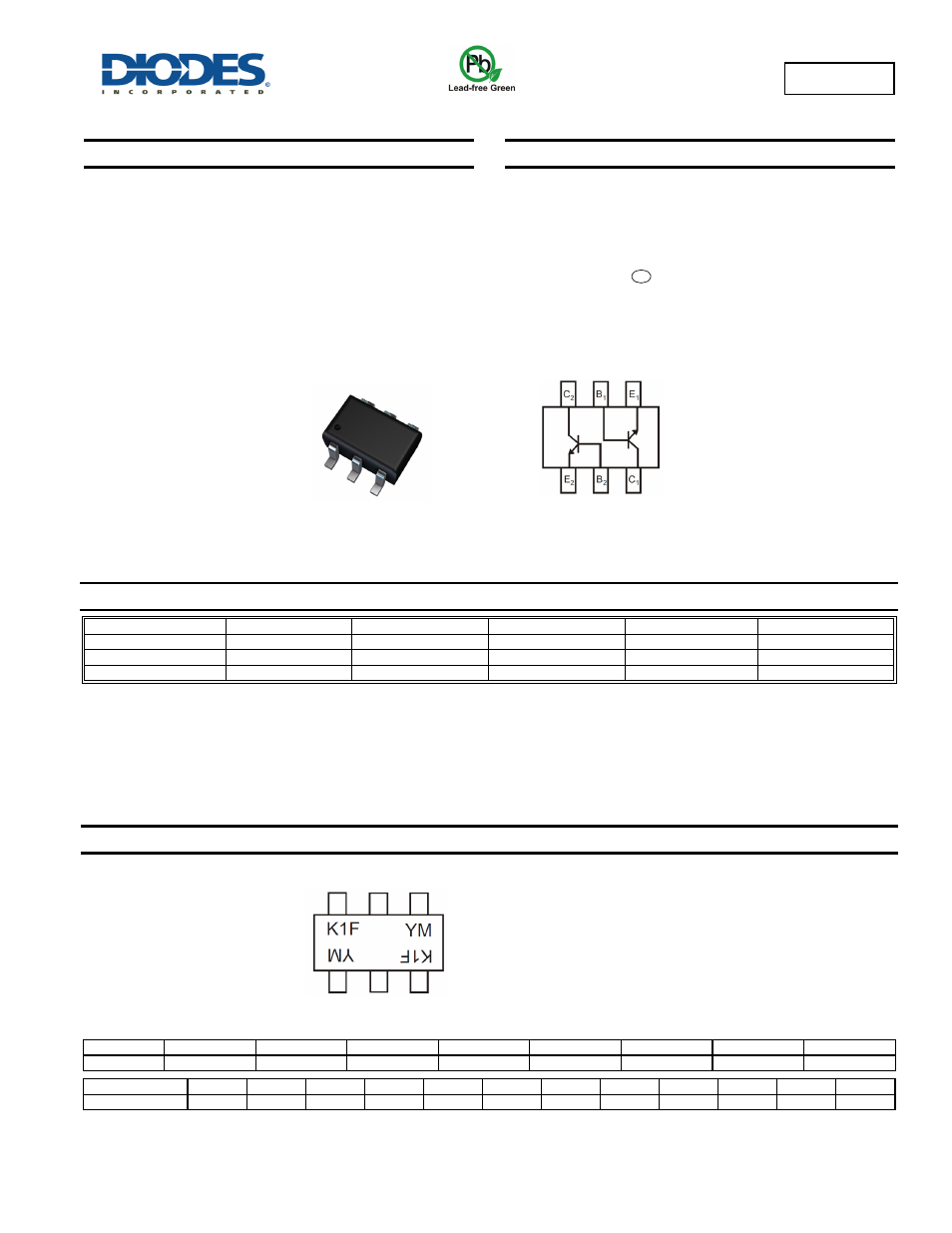

Top View
Device Schematic
Top View
K1F = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
SOT363
e3
