2DC4672
Document number: DS31636 Rev. 4 - 2
1 of 6
February 2013
© Diodes Incorporated
2DC4672
A Product Line of
Diodes Incorporated
50V NPN SURFACE MOUNT TRANSISTOR IN SOT89
Features
BV
CEO
> 50V
I
C
= 3A High Continuous Current
Low saturation voltage V
CE(sat)
< 350mV @ 1A
Complementary PNP type: 2DA1797
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Applications
Load Management Functions
Solenoid, Relay and Actuator Drivers
DC – DC Modules
Mechanical Data
Case:
SOT89
Case Material: Molded Plastic, “Green” Molding Compound
UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Finish - Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
Weight: 0.052 grams (Approximate)
Ordering Information
(Note 4)
Product
Marking
Reel size (inches)
Tape width (mm)
Quantity per reel
2DC4672-13
4672 13 12 2,500
2DC4672-13R
4672 13 12 4,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”

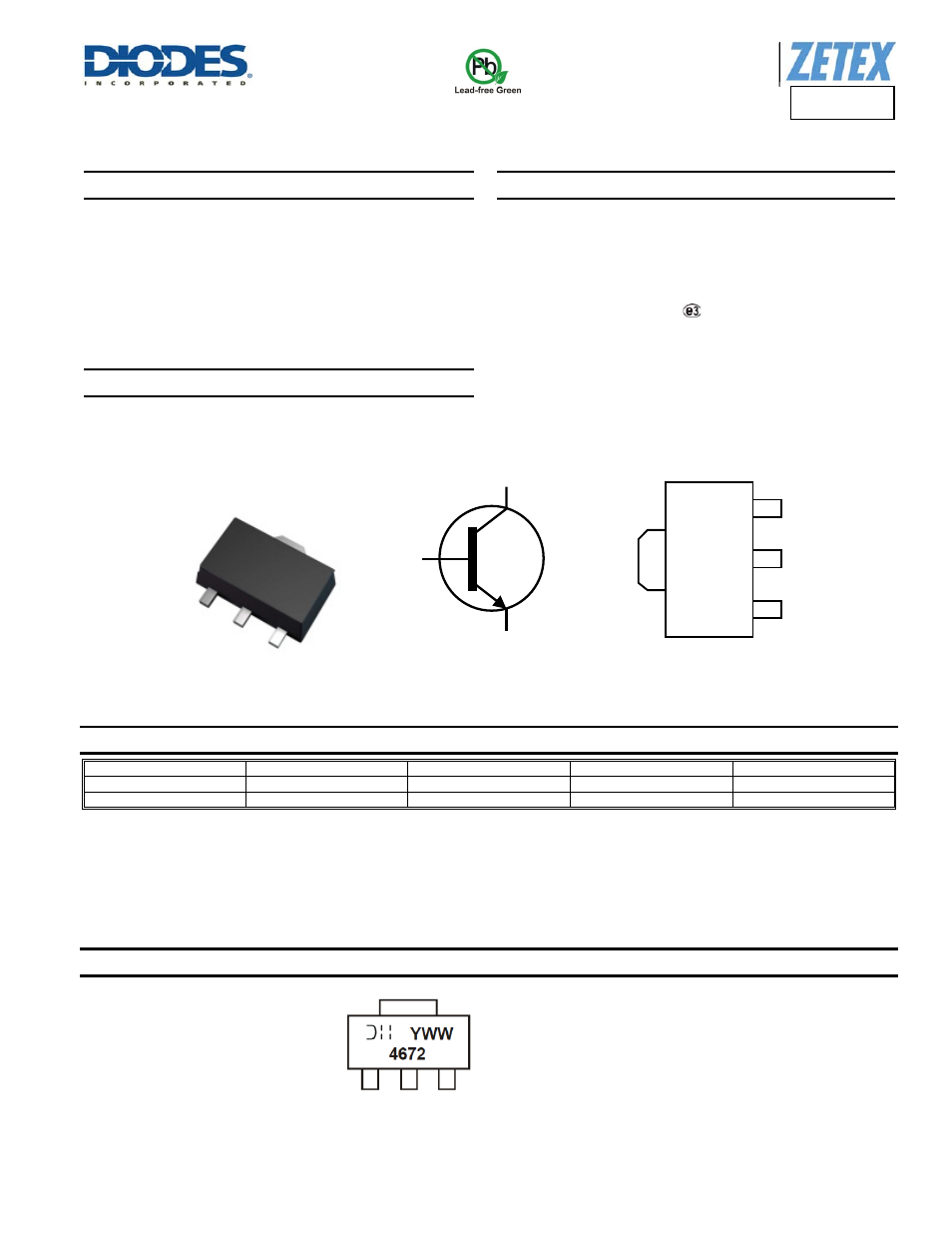

Marking Information
C
E
C
B
Top View
Pin-Out
C
E
B
Device Symbol
Top View
4672 = Product Type Marking Code
YWW = Date Code Marking
Y = Last digit of year (ex: 8 = 2008)
WW = Week code 01 - 53
SOT89
