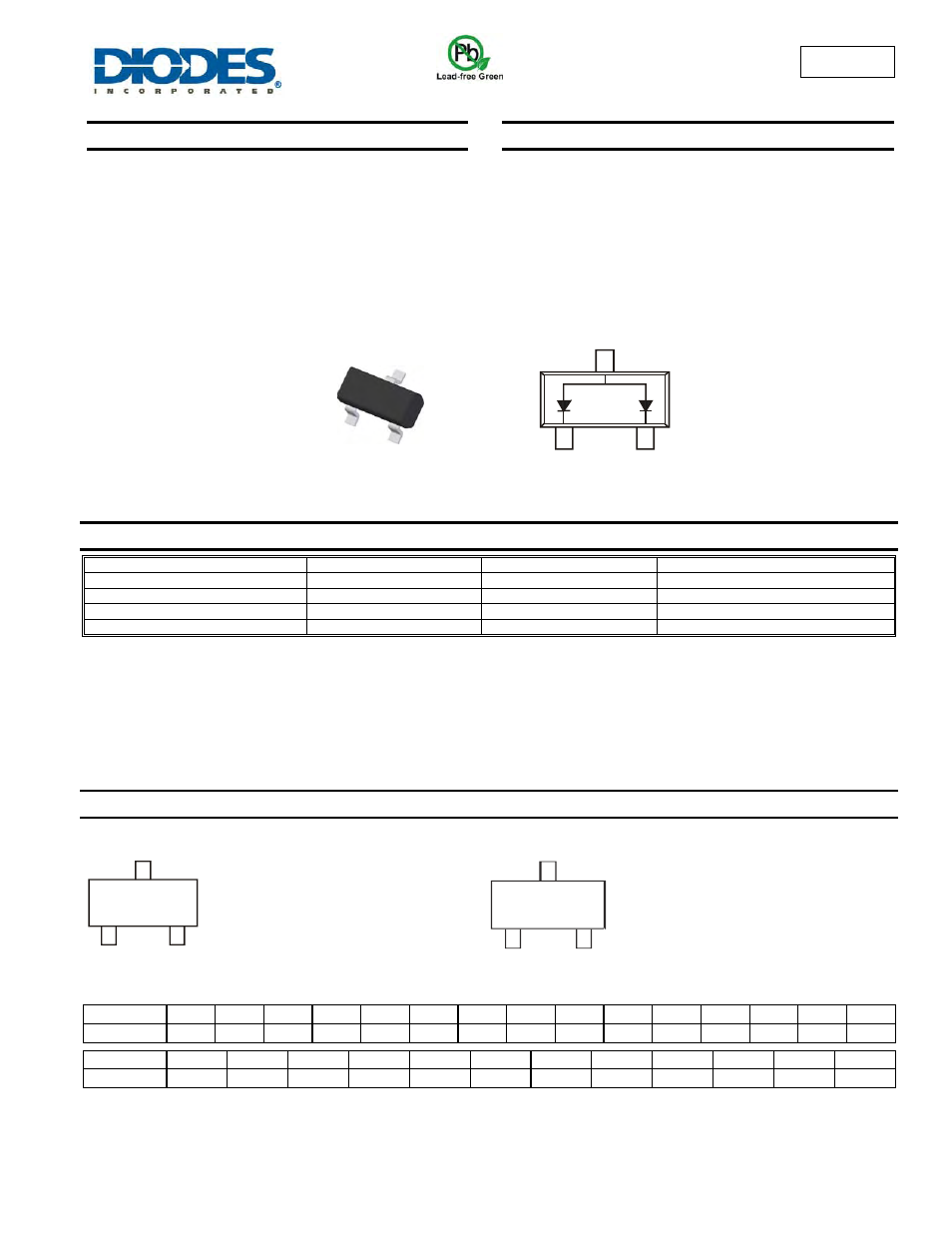

background image

BAW56

Document number: DS12008 Rev. 21 - 2

1 of 4

www.diodes.com

July 2012

© Diodes Incorporated

BAW56

DUAL SURFACE MOUNT SWITCHING DIODE

Features

Fast Switching Speed

Surface Mount Package Ideally Suited for Automated Insertion

For General Purpose Switching Applications

Two Diode Elements Connected in a Common Anode
Configuration

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)



Qualified to AEC-Q101 Standards for High Reliability

Mechanical Data

• Case:

SOT23

Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208

Polarity: See Diagram

Weight: 0.008 grams (approximate)
















Ordering Information

(Note 4)

Part Number

Qualification Case

Packaging

BAW56-7-F

Commercial

SOT23

3,000/Tape & Reel

BAW56-13-F

Commercial

SOT23

10,000/Tape & Reel

BAW56Q-7-F

Automotive

SOT23

3,000/Tape & Reel

BAW56Q-13-F

Automotive

SOT23

10,000/Tape & Reel

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com.





Marking Information













Date Code Key

Year

1998 1999 2000 ….. 2007

2008

2009

2010

2011

2012

2013

2014

2015

2016

2017

Code J K L

….. U V W X Y Z A B C D E

Month

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

Nov

Dec

Code 1 2 3 4 5 6 7 8 9 O N D

Top View

SOT23

Top View

Internal Schematic

K = SAT (Shanghai Assembly / Test site)
JD = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September)

KJD

YM

C = CAT (Chengdu Assembly / Test site)
JD = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Z = 2012)
M = Month (ex: 9 = September)



CJD

YM
