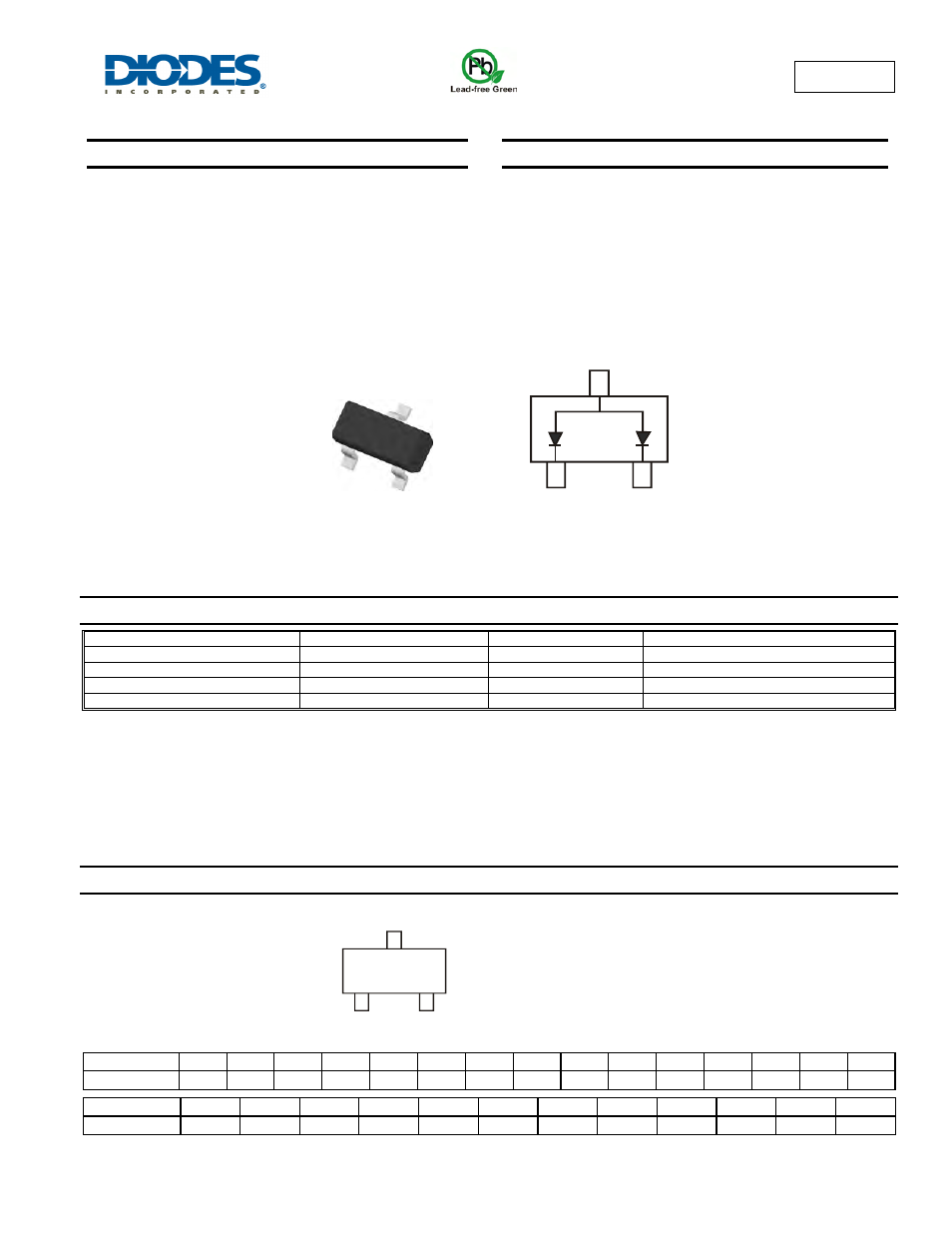

BAW156
DUAL SURFACE MOUNT LOW LEAKAGE DIODE
Features
•
Surface Mount Package Ideally Suited for Automated Insertion
•
Very Low Leakage Current
•
Lead, Halogen, and Antimony Free, RoHS Compliant
(Note 1)
•
"Green" Device (Notes 2 & 3)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SOT23
•
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Polarity: See Diagram
•
Weight: 0.008 grams (approximate)
Ordering Information
(Note 4)
Part Number
Qualification Case
Packaging
BAW156-7-F
Commercial
SOT23
3,000/Tape & Reel
BAW156-13-F
Commercial
SOT23
10,000/Tape & Reel
BAW156Q-7-F
Automotive
SOT23
3,000/Tape & Reel
BAW156Q-13-F
Automotive
SOT23
10,000/Tape & Reel
Notes:
1. No purposefully added lead.
2. Product manufactured with Date Code V9 (week 33, 2008) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code V9 are built with Non-Green Molding Compound and may contain Halogens or Sb
2
O
3
Fire Retardants.
3. Diodes Inc.`s “Green” Policy can be found on our websit4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
1998 1999 ….. 2006 2007 2008 2009 2010 2011 2012
2013
2014
2015
2016
2017
Code J
K
…..
T U V W X Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
SOT23
Top View
Internal Schematic
K53 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
K53
YM
