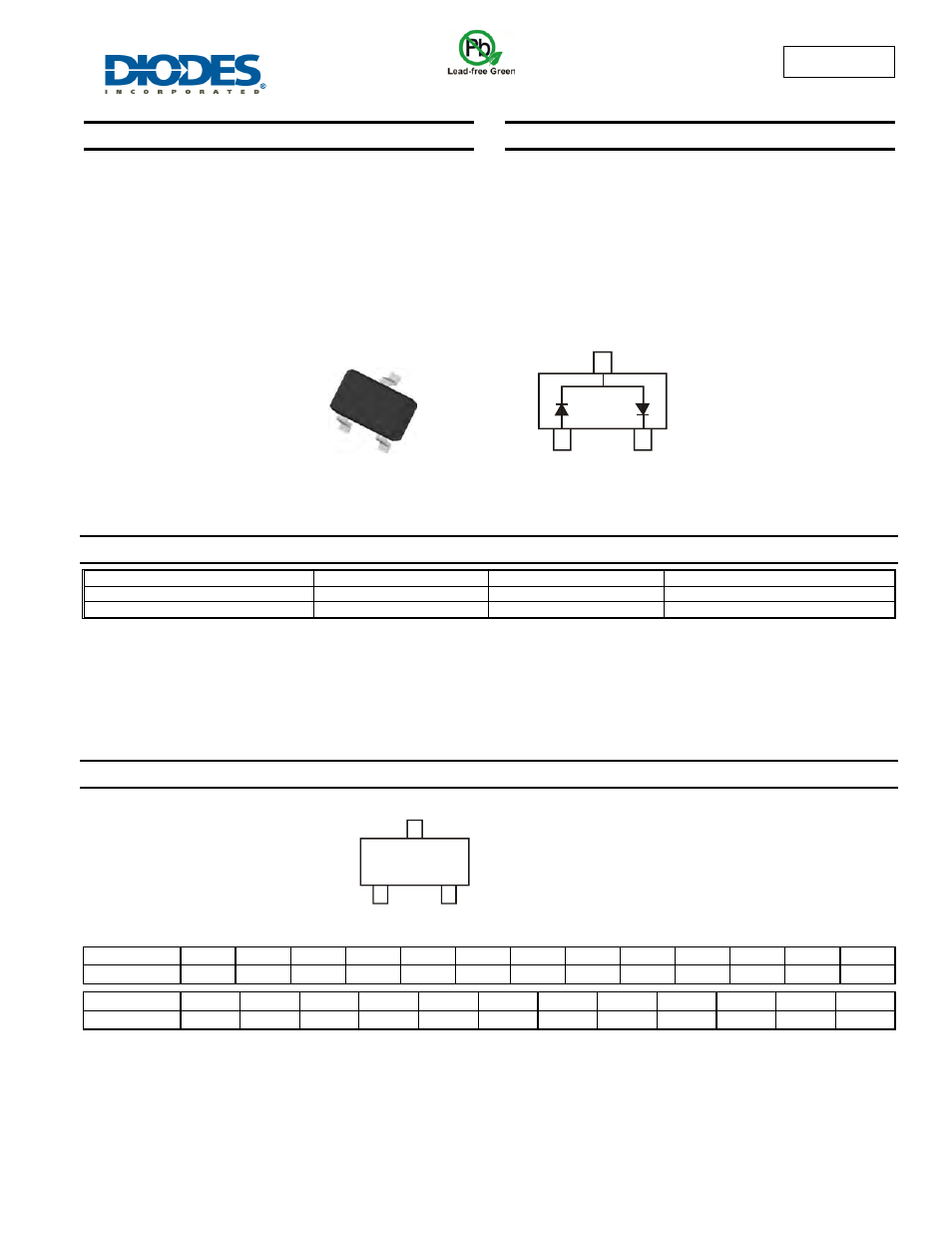

BAV99W
Document number: DS30045 Rev. 11 - 2
1 of 3
November 2011
© Diodes Incorporated
BAV99W
DUAL SURFACE MOUNT SWITCHING DIODE
Features
•
Fast Switching Speed
•
Small Surface Mount Package
•
For General Purpose Switching Applications
•
Lead Free/RoHS Compliant (Note 1)
•
Qualified to AEC-Q101 Standards for High Reliability
•
"Green" Device (Notes 2 and 3)
Mechanical Data
• Case:
SOT323
•
Case Material: Molded Plastic, "Green" Molding Compound,
Note 5. UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
•
Polarity: See Diagram
•
Weight: 0.006 grams (approximate)
Ordering Information
(Notes 3 & 4)
Part Number
Qualification Case
Packaging
BAV99W-7-F
Commercial
SOT323
3000/Tape & Reel
BAV99WQ-7-F
Automotive
SOT323
3000/Tape & Reel
Notes:
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our w3. Product manufactured with Date Code 0627 (week 27, 2006) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
4. For packaging details, go to our website at
Marking Information
Date Code Key
Year
2005 2006 2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
Code S T U V W X Y Z A B C D E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
SOT323
Top View
Internal Schematic
Top View
KJG = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
KJG
YM
