Diodes BAV99BRV/VA User Manual
Bav99brv/va new prod uc t, Features, Mechanical data

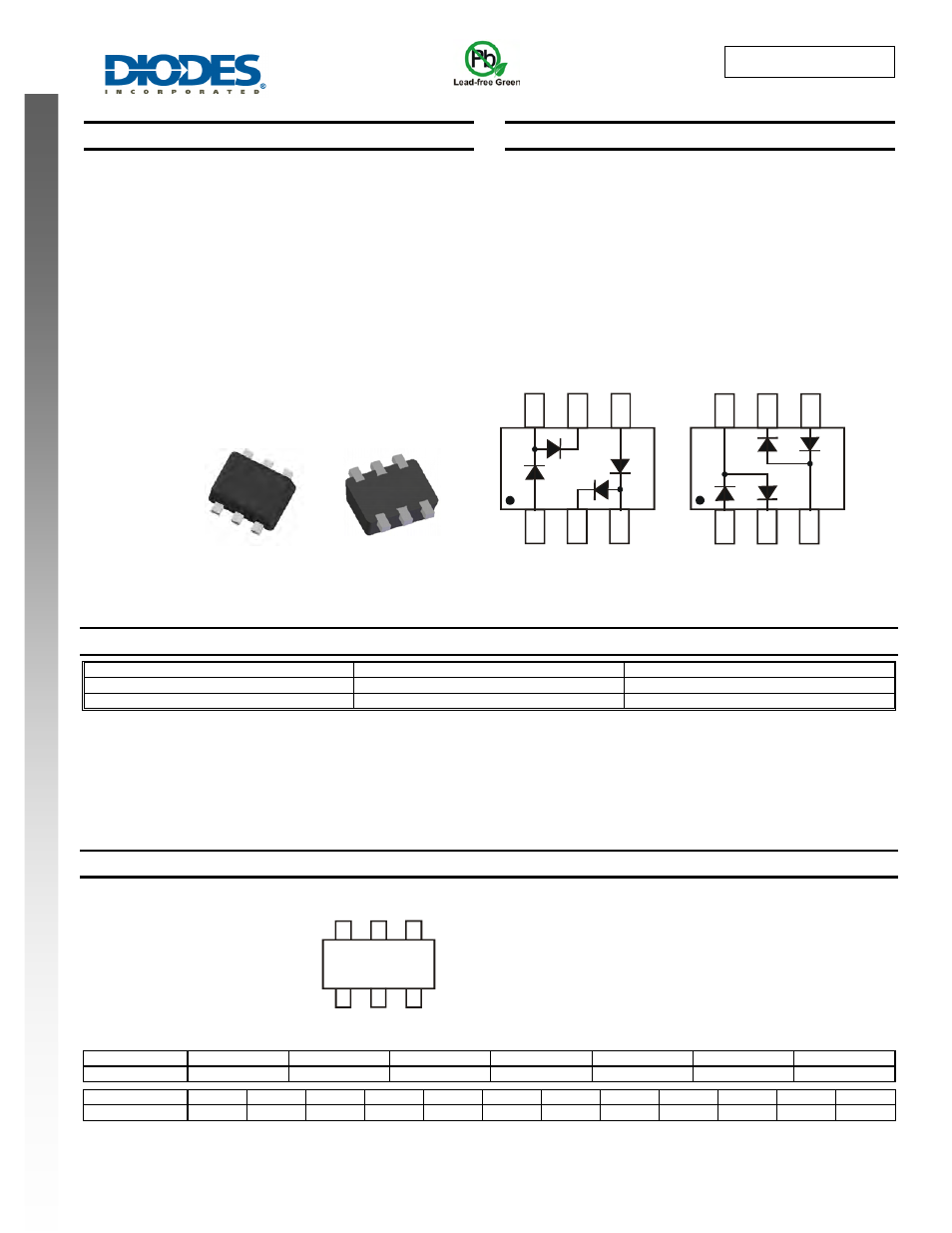

BAV99BRV(A)
Document number: DS35312 Rev. 5 - 2
1 of 4
April 2012
© Diodes Incorporated
BAV99BRV/VA
NEW PROD
UC
T
SURFACE MOUNT SWITCHING DIODE ARRAY
Features
•
Fast Switching Speed
•
Low Forward Voltage: Maximum of 0.715V at 1mA
•
Fast Reverse Recovery: Maximum of 4ns
•
Low Capacitance: Maximum of 1.5pF
•
Ultra-Small Surface Mount Package
•
Thermally Efficient Copper Alloy leadframe for High Power
Dissipation
•
Two “BAV99” Circuits In One Package
•
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Notes 2 & 3)
Mechanical Data
• Case:
SOT563
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Matte Tin Finish annealed over Copper Alloy
leadframe (Lead Free Plating). Solderable per MIL-STD-202,
Method 208
•
Polarity: See Diagram
•
Weight: 0.003 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
BAV99BRV-7
SOT563
3000/Tape & Reel
BAV99BRVA-7
SOT563
3000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-Free.
3. Halogen and Antimony free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For Packaging Details, go to our website at
Marking Information
Date Code Key
Year
2011
2012
2013
2014
2015
2016
2017
Code Y
Z
A
B
C D
E
Month
Jan
Feb
Mar
Apr
May
Jun
Jul
Aug
Sep
Oct
Nov
Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
SOT563
BAV99BRV
xxx = Product Type Marking Code:
XJG = BAV99BRV
XJA = BAV99BRVA
YM = Date Code Marking
Y = Year (ex: Y = 2011)
M = Month (ex: 9 = September)
Bottom View
BAV99BRVA
AC
1
AC
2
C
2
A
1
A
2
C
1
AC
1
AC
2
C
2
A
1
A
2
C
1
xxx
YM
