BAS521LP
Document number: DS32176 Rev. 5 - 2
1 of 4
April 2011
© Diodes Incorporated

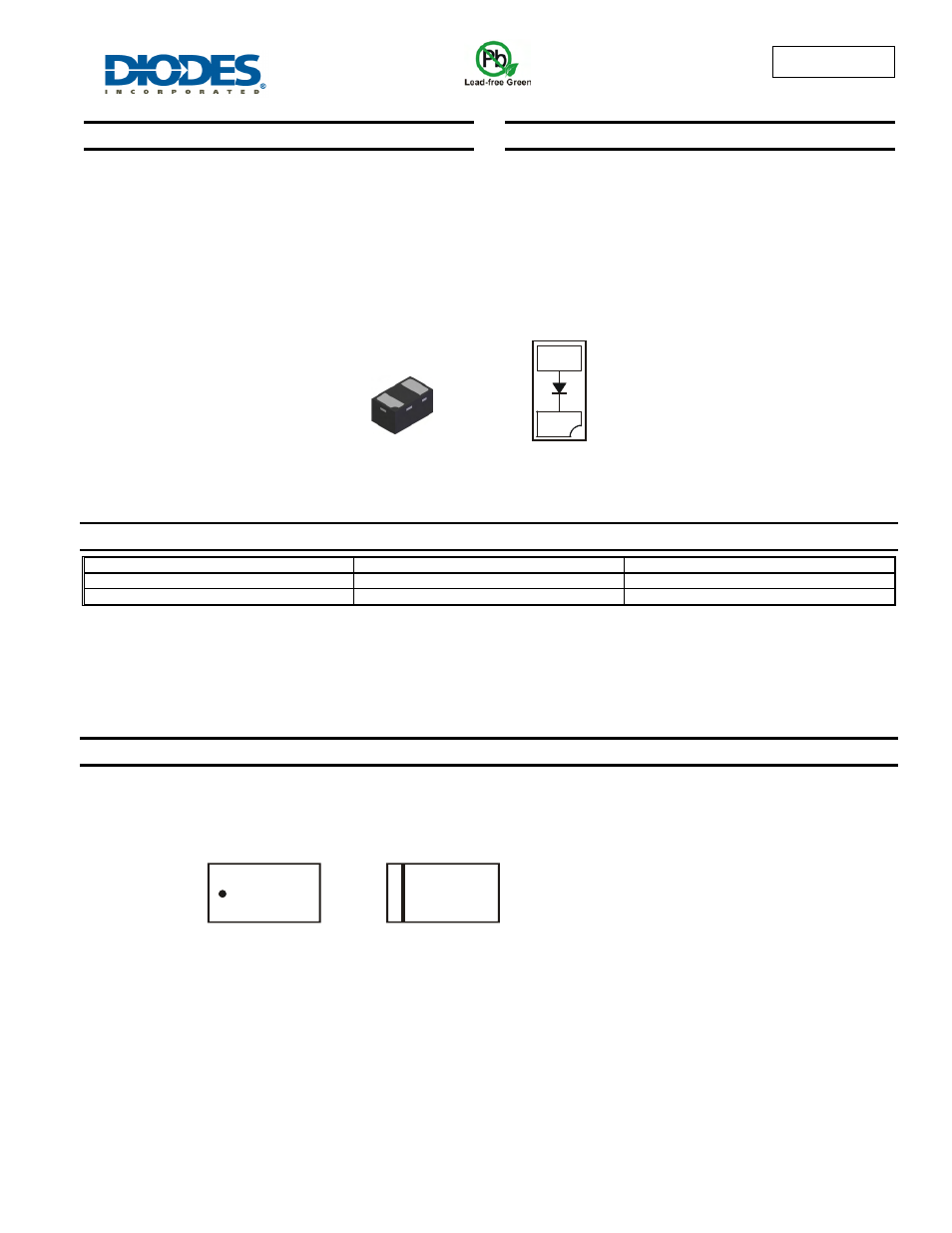

BAS521LP
HIGH VOLTAGE SWITCHING DIODE
Features
•
Fast Switching Speed: Maximum of 50 ns
•
High Reverse Breakdown Voltage: 325V
•
Low Leakage Current: Maximum of 50nA when V
R
= 5V or
Maximum of 150nA when V
R
= 250V at Room Temperature
•
Ultra Small Plastic SMD Package: 1.0mm x 0.6mm x 0.5mm
•
Lead, Halogen and Antimony Free, RoHS Compliant (Note 1)
•
"Green" Device (Note 2)
Mechanical Data
• Case:
X1-DFN1006-2
•
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Finish - NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.0009 grams (approximate)
Ordering Information
(Note 3)
Part Number
Case
Packaging
BAS521LP-7
X1-DFN1006-2
3,000/Tape & Reel
BAS521LP-7B
X1-DFN1006-2
10,000/Tape & Reel
Notes:
1. No purposefully added lead. Halogen and Antimony Free.
2. Diodes Inc.'s "Green" policy can be found on our w
3. For packaging details, go to our website at
Marking Information
Bottom View
1
2
Device Schematic
98 = Product Type Marking Code
BAS521LP-7
BAS521LP-7B
Top View
Bar Denotes
Cathode Side
Top View
Dot Denotes
Cathode Side
98
98
X1-DFN1006-2
