Diodes BAS21TW - Manual

BAS21TW
Document number: DS35389 Rev. 3 - 2
1 of 4
www.diodes.com
April 2013
© Diodes Incorporated

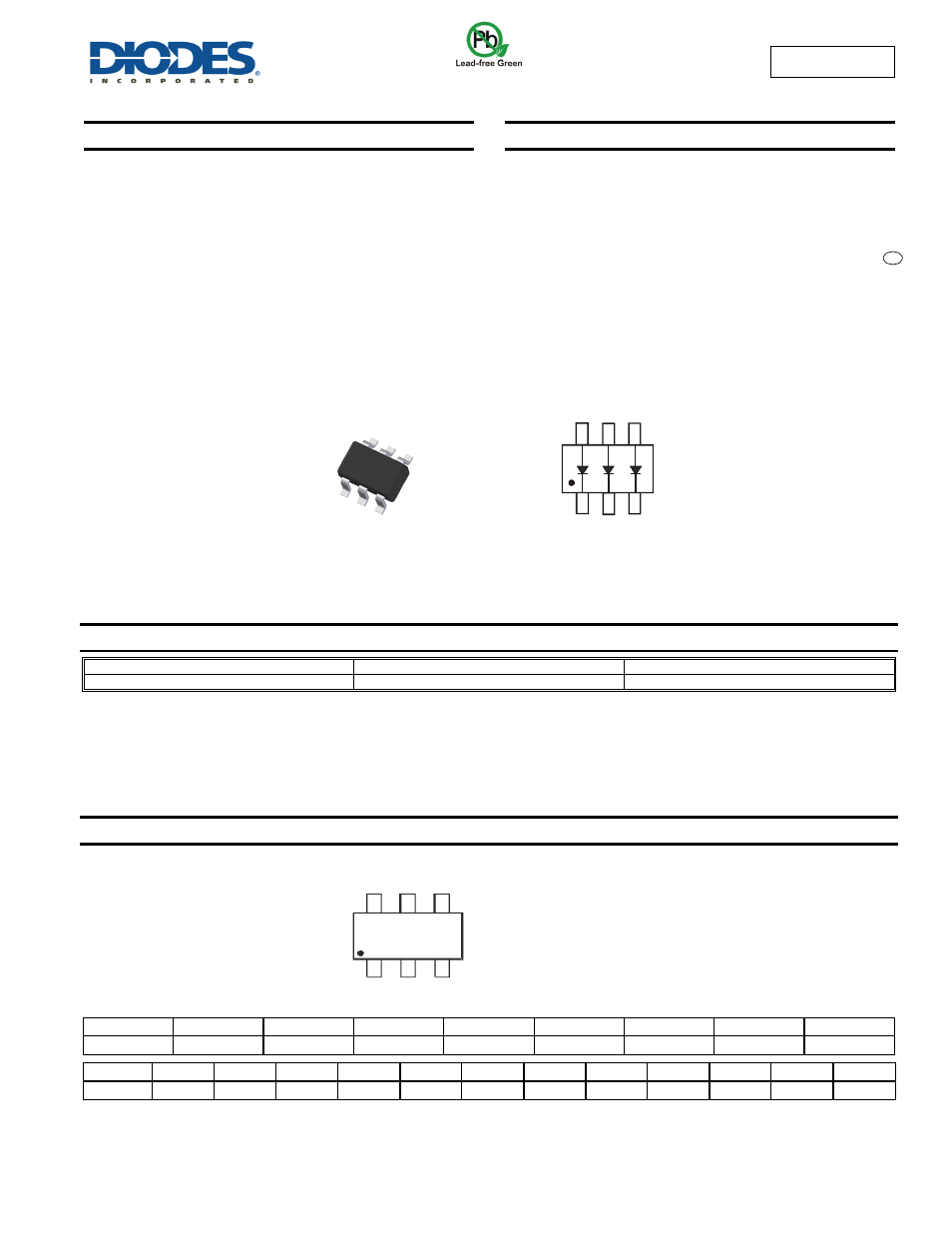

BAS21TW
NEW PROD
UC
T
SURFACE MOUNT FAST SWITCHING DIODE ARRAY
Features
 Fast Switching Speed: max. 50ns
 Continuous Reverse Voltage: max. 200V
 Repetitive Peak Reverse Voltage: max. 250V
 Repetitive Peak Forward Current: max. 1A
 Small Surface Mount Package
 For General Purpose Switching Applications
 High Conductance
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standard for High Reliability
Mechanical Data
 Case: SOT363
 Case Material: Molded Plastic, "Green" Molding Compound,
Note 5. UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
 Orientation: See Diagram
 Weight: 0.009 grams (approximate)
Ordering Information
(Note 4)
Part Number Case Packaging
BAS21TW-7 SOT363 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http”//www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2011 2012 2013 2014 2015 2016 2017 2018
Code Y Z A B C D E F
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Top View
SOT363
Top View
Internal Schematic
XJK = Product Type Marking Code
YM = Date Code Marking
Y =Year (ex: T = 2011)
M = Month (ex: 9 = September)
XJK
YM
e3
