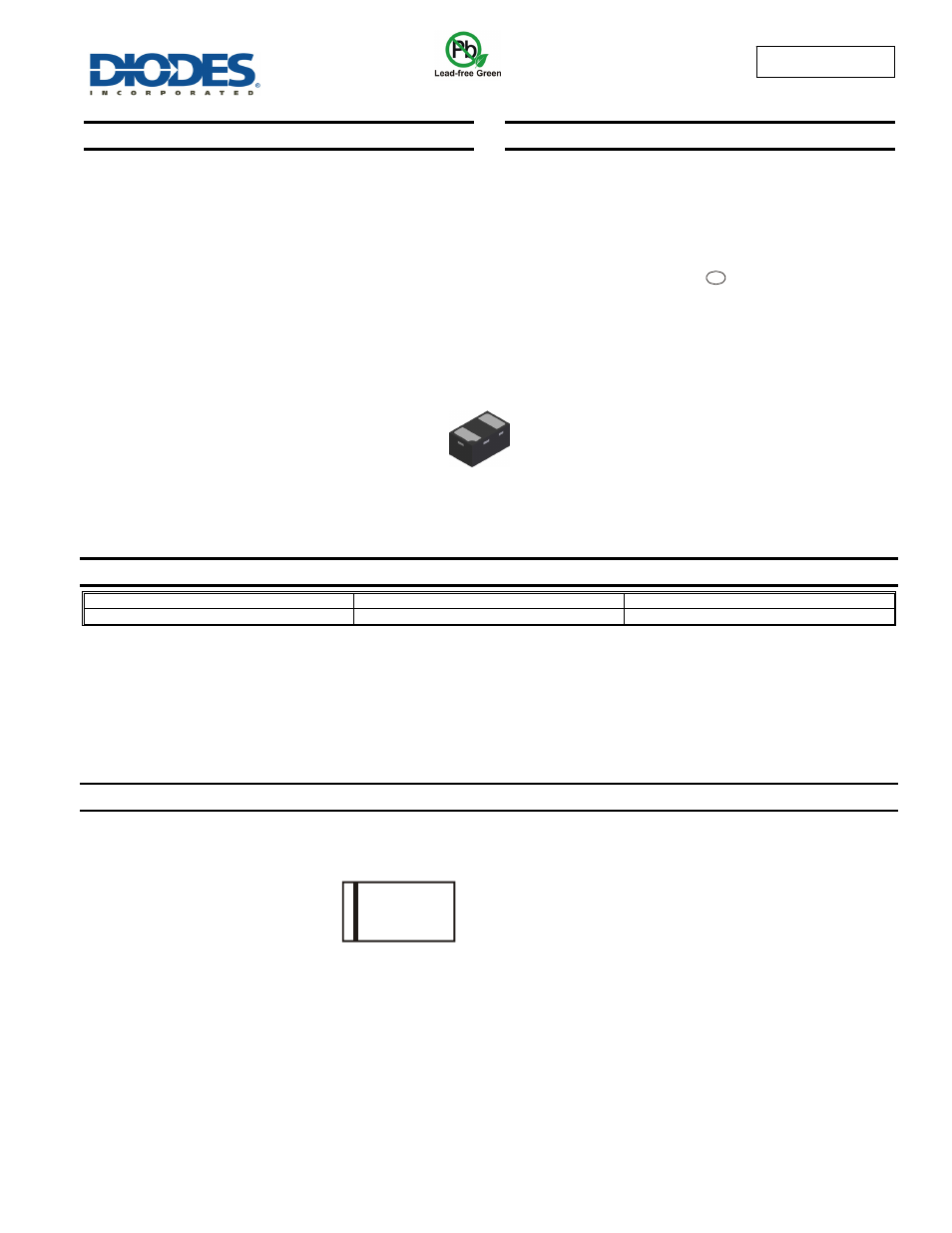

1SS361LPH4
Document number: DS35237 Rev. 4 - 2
1 of 4
May 2014
© Diodes Incorporated
1SS361LPH4
NEW PROD
UC
T
SURFACE MOUNT SWITCHING DIODE
Features
•
Fast Switching Speed
•
Ultra-Small Leadless Surface Mount Package (1.0 x 0.6mm)
•
Ultra-Low Profile Package (0.4mm)
•
Low Forward Voltage (Typ of 0.9V)
•
Fast Reverse Recovery (Typ of 2 ns)
•
Low Capacitance (Typ of 0.63pF)
•
Totally Lead-Free & Fully RoHS Compliant (Note 1 & 2)
•
Halogen and Antimony Free "Green" Device (Note 3)
Mechanical Data
• Case:
X2-DFN1006-2
•
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminal Connections: Cathode Bar
•
Terminals: Finish - NiPdAu over Copper leadframe. Solderable
per MIL-STD-202, Method 208
•
Weight: 0.0009 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
1SS361LPH4-7B
X2-DFN1006-2
10,000/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Bottom View
X2-DFN1006-2
6Z = Product Type Marking Code
Bar Denotes Cathode Side
6Z
e4
