BAT54W /AW /CW /SW
Document number: DS30065 Rev. 15 - 2
1 of 4
www.diodes.com
March 2014
© Diodes Incorporated

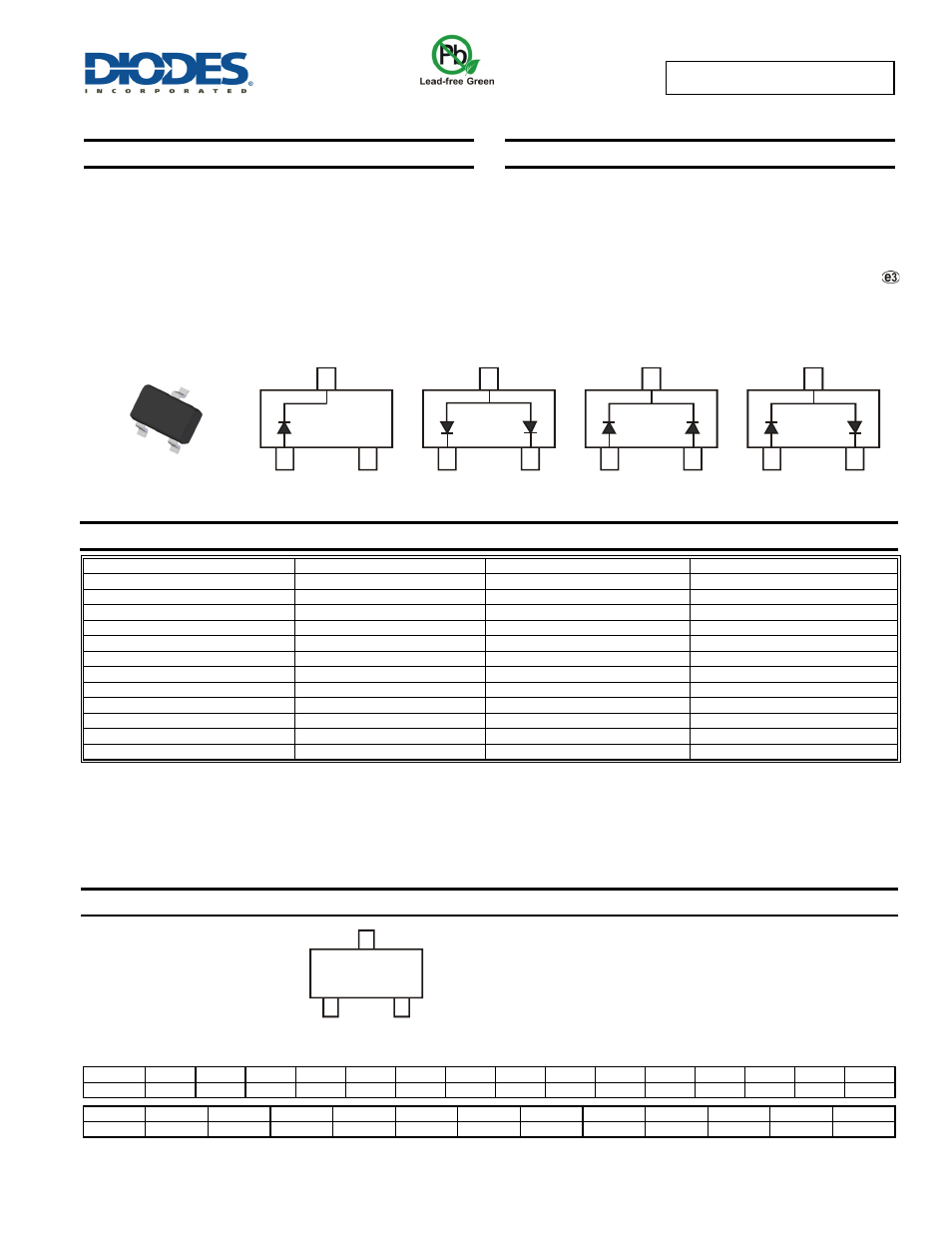

BAT54W /AW /CW /SW
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
 Low Forward Voltage Drop
 Fast Switching
 Ultra-Small Surface Mount Package
 PN Junction Guard Ring for Transient and ESD Protection
 Qualified to AEC-Q101 Standards for High Reliability
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
Mechanical Data
 Case: SOT323
 Case Material: Molded Plastic, "Green" Molding Compound,
Note 5. UL Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
 Polarity: See Diagrams Below
 Weight: 0.006 grams (approximate)
SOT323
Top View BAT54W-KL5 BAT54AW-KL6 BAT54CW-KL7 BAT54SW-KL8
Ordering Information
(Note 5)
Part Number Compliance Case Packaging
BAT54W-7-F Standard SOT323 3000/Tape & Reel
BAT54W-13-F Standard SOT323 10000/Tape & Reel
BAT54WQ-7-F Automotive SOT323 3000/Tape & Reel
BAT54AW-7-F Standard SOT323 3000/Tape & Reel
BAT54AW-13-F Standard SOT323 10000/Tape & Reel
BAT54AWQ-7-F Automotive SOT323 3000/Tape & Reel
BAT54CW-7-F Standard SOT323 3000/Tape & Reel
BAT54CW-13-F Standard SOT323 10000/Tape & Reel
BAT54CWQ-7-F Automotive SOT323 3000/Tape & Reel
BAT54SW-7-F Standard SOT323 3000/Tape & Reel
BAT54SW-13-F Standard SOT323 10000/Tape & Reel
BAT54SWQ-7-F Automotive SOT323 3000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code 1327 (week 27, 2013) and newer are built with Green Molding Compound. Product manufactured prior to Date
Code 0627 are built with Non-Green Molding Compound and may contain Halogens or Sb2O3 Fire Retardants.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html
Marking Information
Date Code Key
Year 2000 2001 2002 2003 2004 … 2010 2011 2012 2013 2014 2015 2016 2017 2018
Code L M N P R … X Y Z A B C D E F
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
xxx = Product Type Marking Code
KL5 = BAT54W
KL6 = BAT54AW
KL7 = BAT54CW
KL8 = BAT54SW
YM = Date Code Marking
Y = Year (ex: A = 2014)
M = Month (ex: 9 = September)
xxx
YM
