6A05 - 6A10
6.0A SILICON RECTIFIER
Features
•
High Surge Current Capability
•
Low Leakage and Forward Voltage Drop
•
Lead Free Finish, RoHS Compliant (Note 1)
Mechanical Data
•
Case: R-6
•
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020C
•
Terminals: Finish
⎯ Tin. Axial Leads, Solderable per MIL-
STD-202, Method 208
•
Polarity: Color Band Indicates Cathode
•
Ordering Information: See Page 3
•
Approximate Weight: 2.1 grams

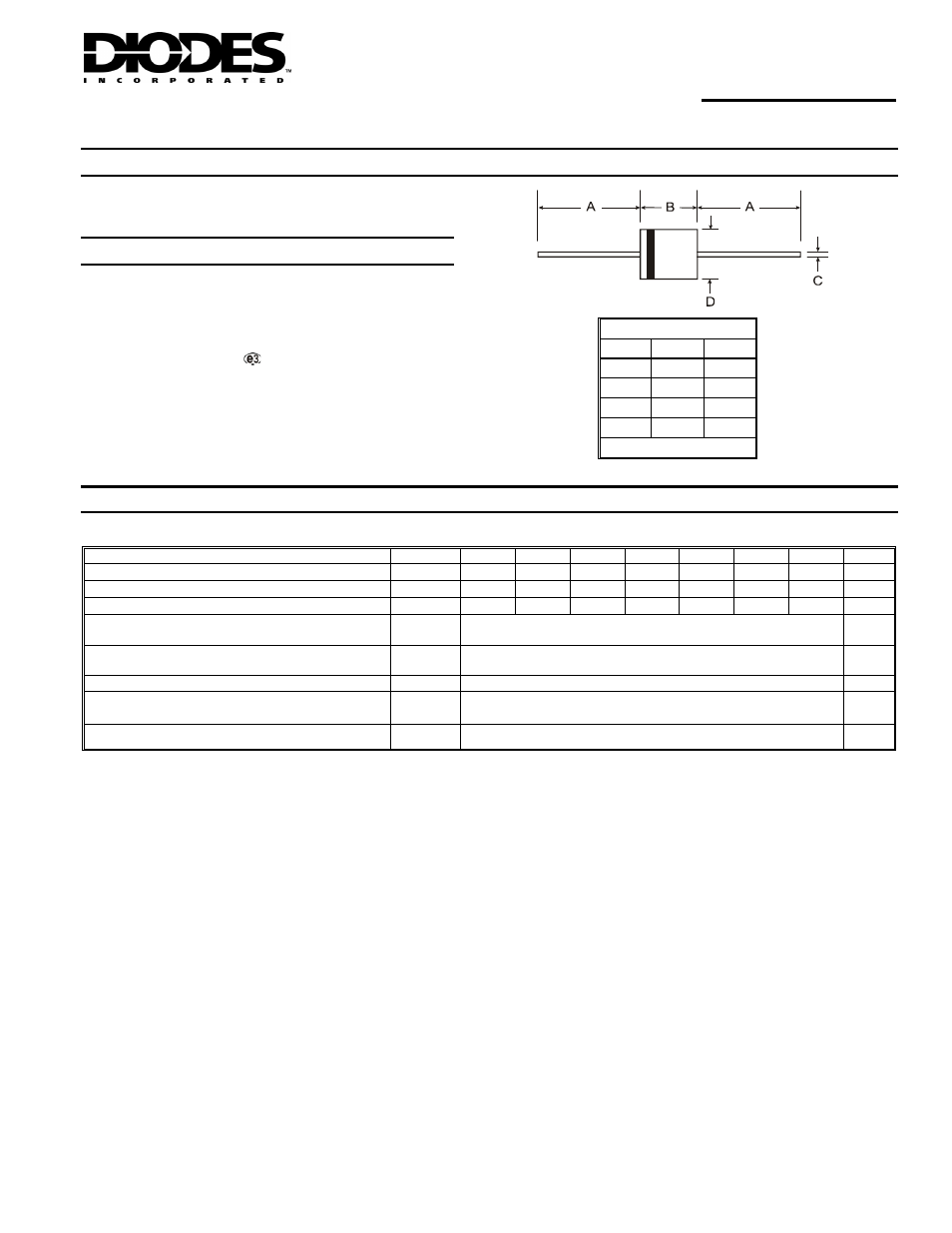

R-6
Dim
Min
Max
A
25.40
-
B
8.60
9.10
C
1.20
1.30
D
8.60
9.10
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Ratings at 25°C ambient temperature unless otherwise specified.
Single phase, halfwave, 60Hz, resistive or inductive load.
Characteristic
Symbol
6A05
6A1
6A2
6A4
6A6
6A8
6A10
Unit
Maximum Recurrent Peak Reverse Voltage
V
RRM
50
100
200
400
600
800
1000
V
Maximum RMS Voltage
V
RMS
35
70
140
280
420
560
700
V
Maximum DC Blocking Voltage
V
DC
50
100
200
400
600
800
1000
V
Maximum Average Forward Rectified Current
9.5mm lead length @ T
A
= 75°C (See Fig. 1)
I
(AV)
6.0
A
Peak Forward Surge Current 8.3 ms single half sine-
wave superimposed on rated load
I
FSM
400
A
Maximum Instantaneous Forward Voltage at 6.0A DC
V
FM
0.90
V
Maximum DC Reverse Current @ T
A
= 25
°C
at Rated Blocking Voltage @ T
A
= 100
°C
I
RM
10
100
µA
Operating and Storage Temperature Range
T
j
, T
STG
-65 to +175
°C
Notes: 1. RoHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see EU Directive Annex Notes 5 and 7.
DS28009 Rev. 9 - 2
