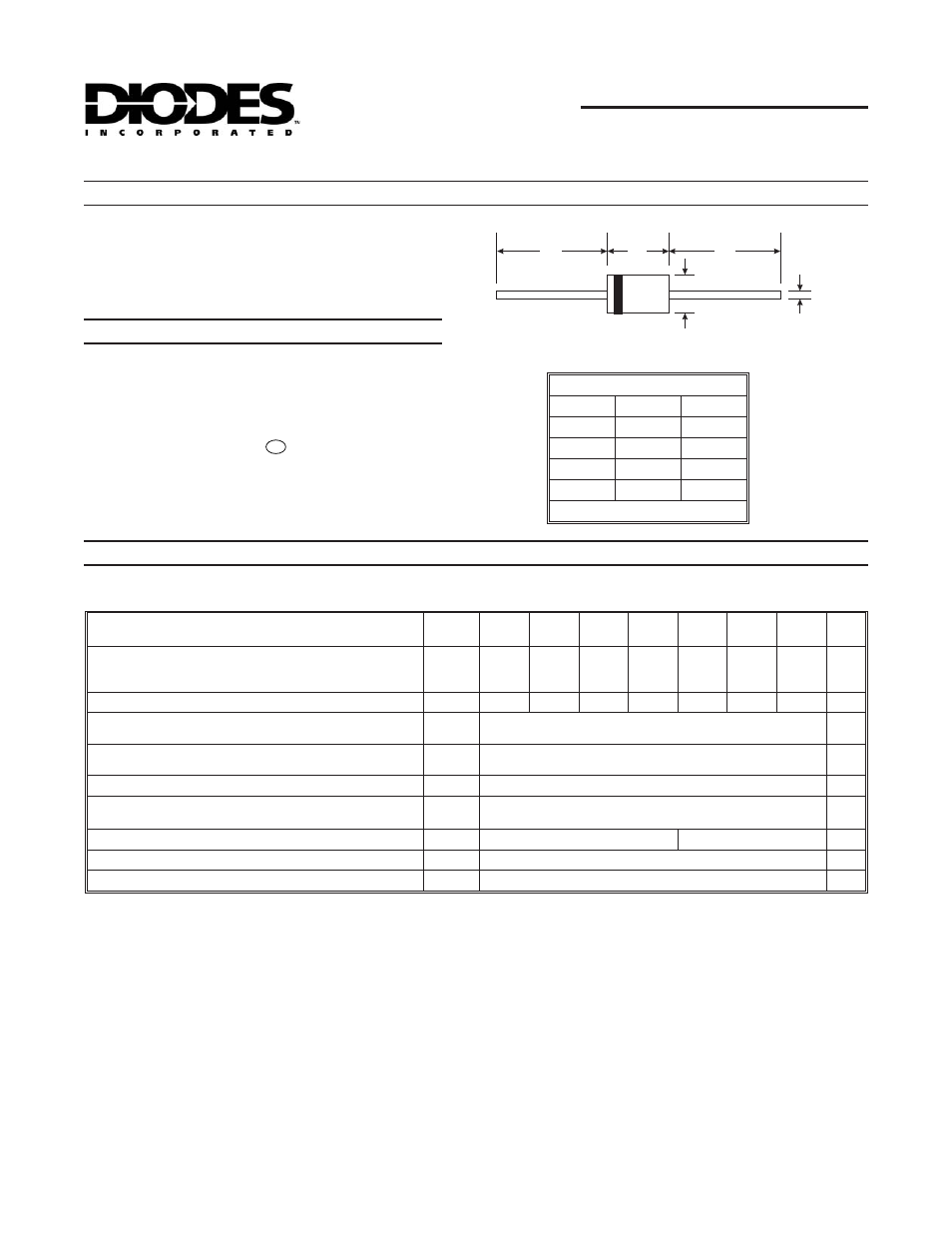

Diodes 1N5400 - 1N5408 - Manual

e 3
DS28007 Rev. 7 - 2 1 of 3 1N5400-1N5408
www.diodes.com
ã
Diodes Incorporated
Features
1N5400 - 1N5408
3.0A RECTIFIER
DO-201AD
Dim Min Max
A 25.40 ¾
B 7.20 9.50
C 1.20 1.30
D 4.80 5.30
All Dimensions in mm
A A B
C
D
Maximum Ratings and Electrical Characteristics @ T
A
= 25 °C unless otherwise specified
·
Diffused Junction
·
High Current Capability and Low Forward Voltage Drop
·
Surge Overload Rating to 200A Peak
·
Low Reverse Leakage Current
·
Lead Free Finish, RoHS Compliant (Note 3)
Mechanical Data
·
Case: DO-201AD
·
Case Material: Molded Plastic. UL Flammability
Classification Rating 94V-0
·
Moisture Sensitivity: Level 1 per J-STD-020C
·
Terminals: Finish ¾ Tin. Plated Leads Solderable per
MIL-STD-202, Method 208
·
Polarity: Cathode Band
·
Marking: Type Number
·
Weight: 1.1 grams (approximate)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic Symbol
1N
5400
1N
5401
1N
5402
1N
5404
1N
5406
1N
5407
1N
5408
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage V
RRM
V
RWM
V
R
50 100 200 400 600 800 1000 V
RMS Reverse Voltage V
R(RMS) 35 70 140 280 420 560 700 V
Average Rectified Output Current @ T
A
= 105 °C
(Note 1)
I O 3.0 A
Non-Repetitive Peak Forward Surge Current
8.3ms Single half sine-wave superimposed on rated load
I
FSM 200 A
Forward Voltage @ I F = 3.0A V
FM 1.0 V
Peak Reverse Current @ T
A
= 25 °C
at Rated DC Blocking Voltage @ T
A
= 150 °C
I
RM
10
100
mA
Typical Total Capacitance (Note 2) C T 50 25 pF
Typical Thermal Resistance Junction to Ambient R qJA 15 °C/W
Operating and Storage Temperature Range T
j,
T
STG -65 to +150 °C
Notes: 1. Valid provided that leads are kept at ambient temperature at a distance of 9.5mm from the case.
2. Measured at 1.0MHz and applied reverse voltage of 4.0V DC.
3. RoHS revision 13.2.2003. Glass and High Temperature Solder Exemptions Applied, see EU Directive Annex Notes 5 and 7.
