1N4001 - 1N4007
1.0A RECTIFIER
Features
• Diffused
Junction
•
High Current Capability and Low Forward Voltage Drop
•
Surge Overload Rating to 30A Peak
•
Low Reverse Leakage Current
•
Lead Free Finish, RoHS Compliant (Note 3)
Mechanical Data
•
Case: DO-41
•
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020D
•
Terminals: Finish - Bright Tin. Plated Leads Solderable per
MIL-STD-202, Method 208
•
Polarity: Cathode Band
•
Mounting Position: Any
•
Ordering Information: See Page 2
•
Marking: Type Number
•
Weight: 0.30 grams (approximate)

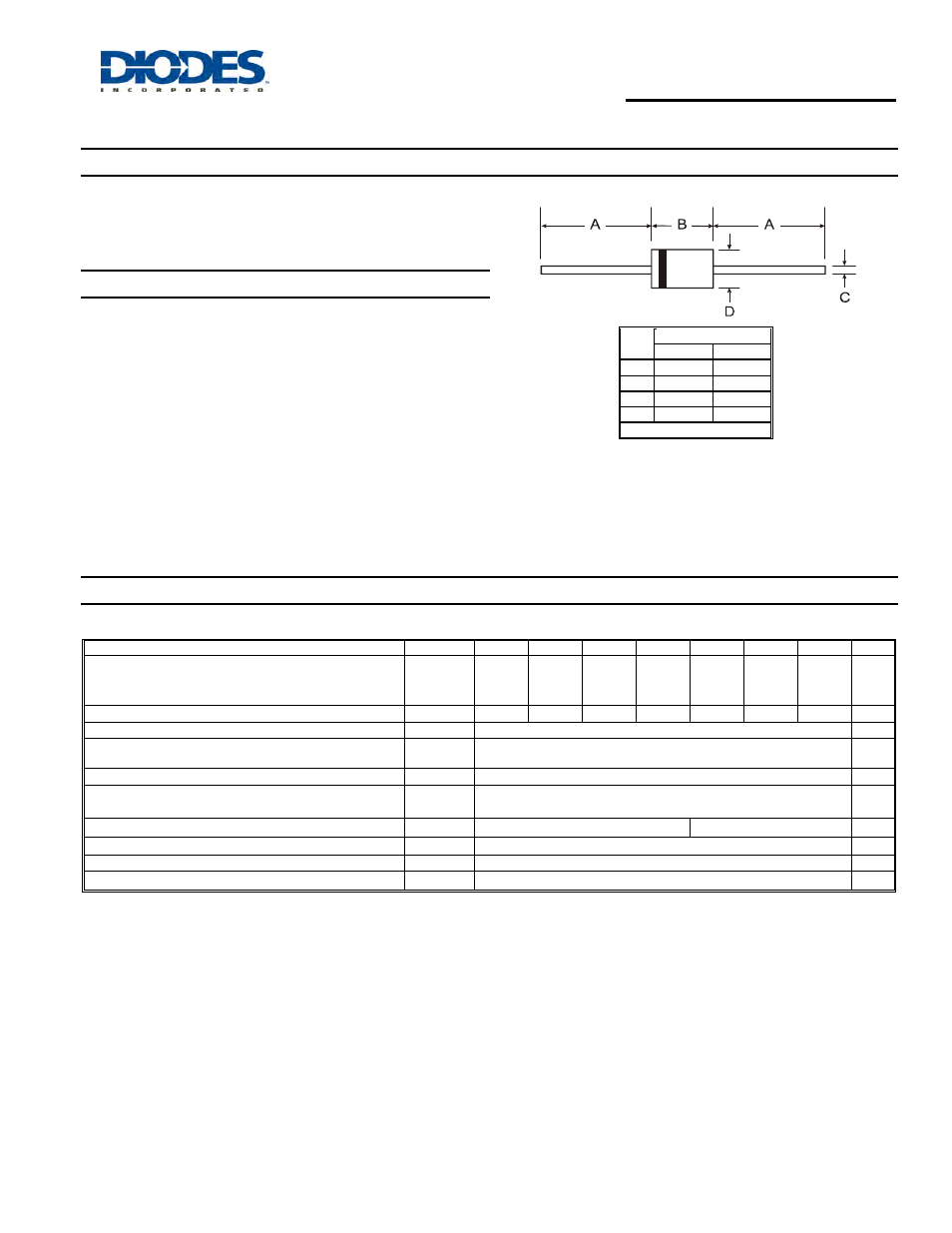

Dim
DO-41 Plastic
Min
Max
A
25.40
⎯
B
4.06
5.21
C
0.71
0.864
D
2.00
2.72
All Dimensions in mm
Maximum Ratings and Electrical Characteristics
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic
Symbol
1N4001 1N4002 1N4003 1N4004 1N4005 1N4006 1N4007
Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
V
RRM
V
RWM
V
R
50
100
200
400
600
800
1000
V
RMS Reverse Voltage
V
R(RMS)
35
70
140
280
420
560
700
V
Average Rectified Output Current (Note 1) @ T
A
= 75
°C
I
O
1.0
A
Non-Repetitive Peak Forward Surge Current 8.3ms
single half sine-wave superimposed on rated load
I
FSM
30
A
Forward Voltage @ I
F
= 1.0A
V
FM
1.0
V
Peak Reverse Current @T
A
= 25
°C
at Rated DC Blocking Voltage @ T
A
= 100
°C
I
RM
5.0
50
μA
Typical Junction Capacitance (Note 2)
C
j
15
8
pF
Typical Thermal Resistance Junction to Ambient
R
θJA
100
K/W
Maximum DC Blocking Voltage Temperature
T
A
+150
°C
Operating and Storage Temperature Range
T
J
,
T
STG
-65 to +150
°C
Notes:
1. Leads maintained at ambient temperature at a distance of 9.5mm from the case.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
3. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied,
