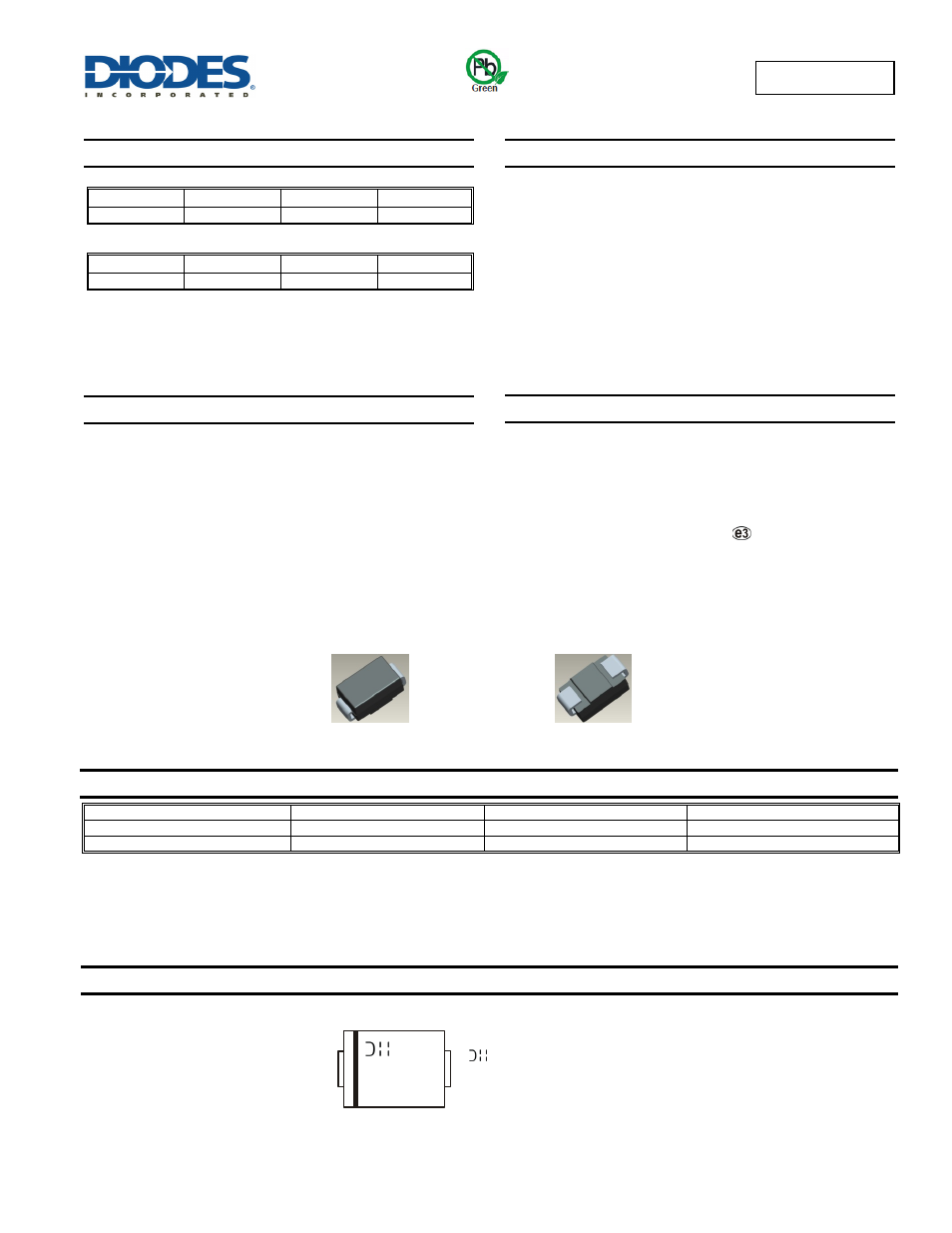

B320 - B360
Document number: DS30923 Rev. 10 - 2
1 of 5
www.diodes.com
April 2014
© Diodes Incorporated
B320 - B360
3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Product Summary
B320/B330/B340
V
RRM
(V)
I
O
(A) V
F max
(V) I
R max
(mA)
20/30/40 3.0
0.5
0.5
B350/B360
V
RRM
(V)
I
O
(A) V
F max
(V) I
R max
(mA)
50/60 3.0 0.7 0.5
Description and Applications
This Schottky Barrier Rectifier has been designed to meet the
general requirements of commercial applications. It is ideally suited fo
use as:
Polarity Protection Diode
Re-Circulating
Diode
Switching
Diode
Features and Benefits
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automated Assembly
Low Power Loss, High Efficiency
Surge Overload Rating to 125A Peak
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
B340Q-13-F Qualified to AEC-Q101 standards for High
Reliability
Mechanical Data
Case:
SMC
Case Material: Molded Plastic, “Green” Molding compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Lead Free Plating (Matte Tin Finish). Solderable
per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.21 grams (approximate)
SMC
Ordering Information
(Notes 4 & 5)
Part Number
Compliance Case
Packaging
B3x0-13-F
Commercial
SMC
3000/Tape & Reel
B340Q-13-F (Note 5)
Automotive
SMC
3000/Tape & Reel
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html
5. Other automotive grade ‘Q’ parts evaluated upon request.
Marking Information
(Note 6)
Note:
6. Device has a cathode band (as shown above) and may also have a cathode notch.
Top View
Bottom View
B3x0 = Product type marking code, ex: B320
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 13 for 2013)
WW = Week code (01 to 53)
YWW
B3x0
