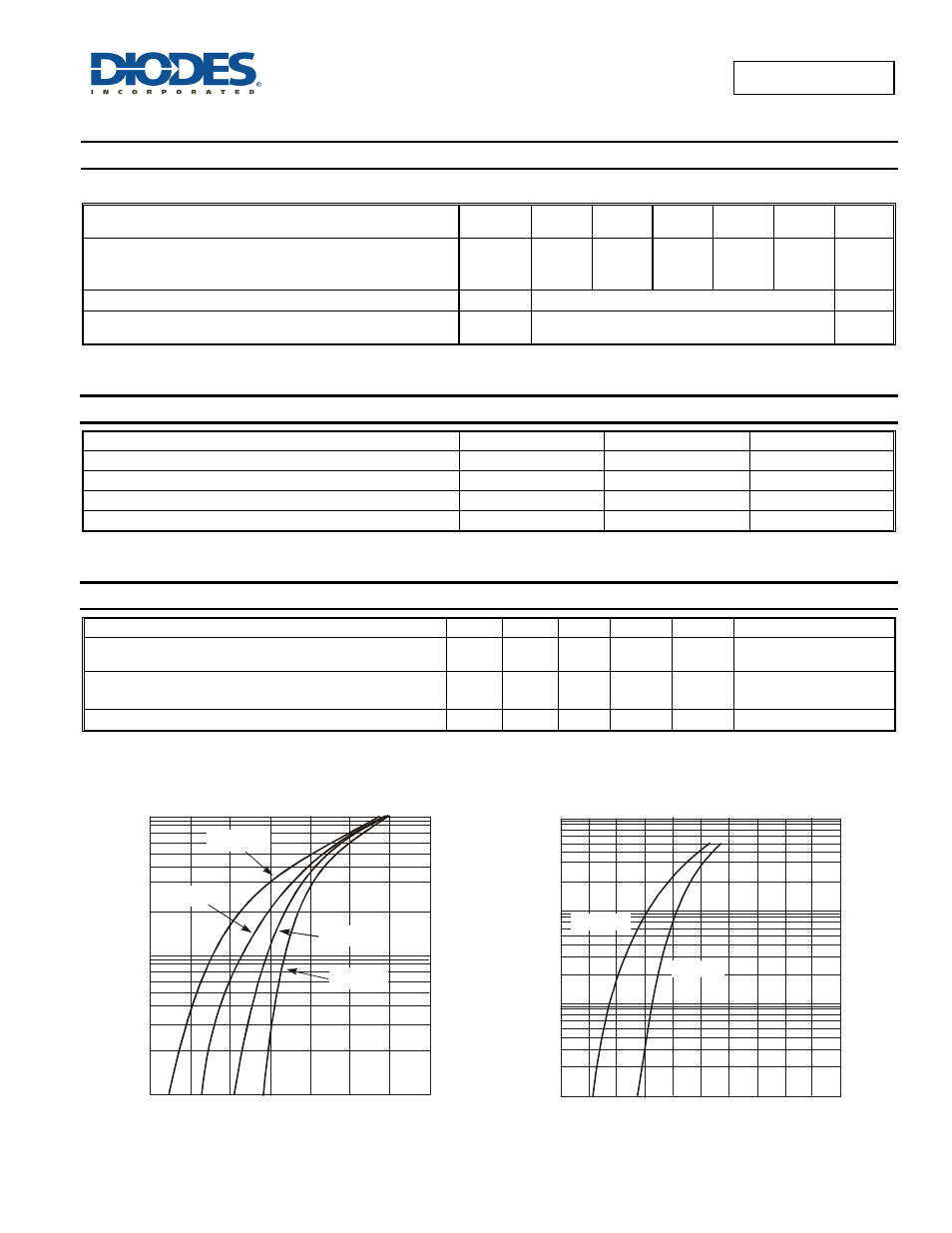

Diodes B320B - B360B - Manual (Page 2)

B320B - B360B
Document number: DS30924 Rev. 10 - 2
2 of 5
www.diodes.com
April 2013
© Diodes Incorporated
B320B - B360B
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic Symbol B320B B330B
B340B/
B340BQ
B350B B360B Unit
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage V
RRM
V
RWM
V
R
20 30 40 50 60 V
Average Rectified Output Current @ T
T
=+100°C I
O
3.0 A
Non-Repetitive Peak Forward Surge Current 8.3ms
single half sine-wave superimposed on rated load
I
FSM
100 A
Thermal Characteristics
Characteristic Symbol Value Unit
Typical Thermal Resistance, Junction to Terminal (Note 6) R
θJT
25 °C/W
Typical Thermal Resistance, Junction to Ambient (Note 6) R
θJA
95 °C/W 
Operating Temperature Range T
J
-55 to +150 °C
Storage Temperature Range T
STG
-55 to +150 °C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic Symbol Min Typ Max Unit Test Condition
Forward Voltage Drop
B320B,B330B,B340B,B340BQ
B350B, B360B
V
F
—
—
—
—
0.50
0.70
V I
F
= 3.0A, T
A
= +25° C
Leakage Current (Note 7) I
R
—
—
—
—
0.5
20
mA
@ Rated V
R
, T
A
= +25° C
@ Rated V
R
, T
A
= +100° C
Total Capacitance C
T
— — 200 pF V
R
= 4V, f = 1MHz
Notes: 6. Thermal Resistance: Junction to terminal, unit mounted on glass epoxy substrate with 2x3mm copper pad.
7. Short duration pulse test used to minimize self-heating effect.
0.1
1.0
10
0.1 0.3 0.4 0.2 0.5 0.6 0.7 0.8
I
, IN
S
TAN
TANE
O
U
S
F
O
R
WA
R
D
C
U
R
R
EN
T
(A
)
F
V , INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 1 Typical Forward Characteristics - B320B thru B340B
F
T = 25 C
A
°
T = 75 C
A
°
T = 125 C
A
°
T = -25 C
A
°
0.01
0.1
1.0
10
0 0.2 0.4 0.6 0.8 1.0
I
, IN
S
TAN
TANE
O
U
S
F
O
R
WA
R
D
C
U
R
R
EN
T
(A
)
F
V , INSTANTANEOUS FORWARD VOLTAGE (V)
Figure 2 Typical Forward Characteristics - B350B thru B360B
F
T = 125ºC
A
T = 25ºC
A
