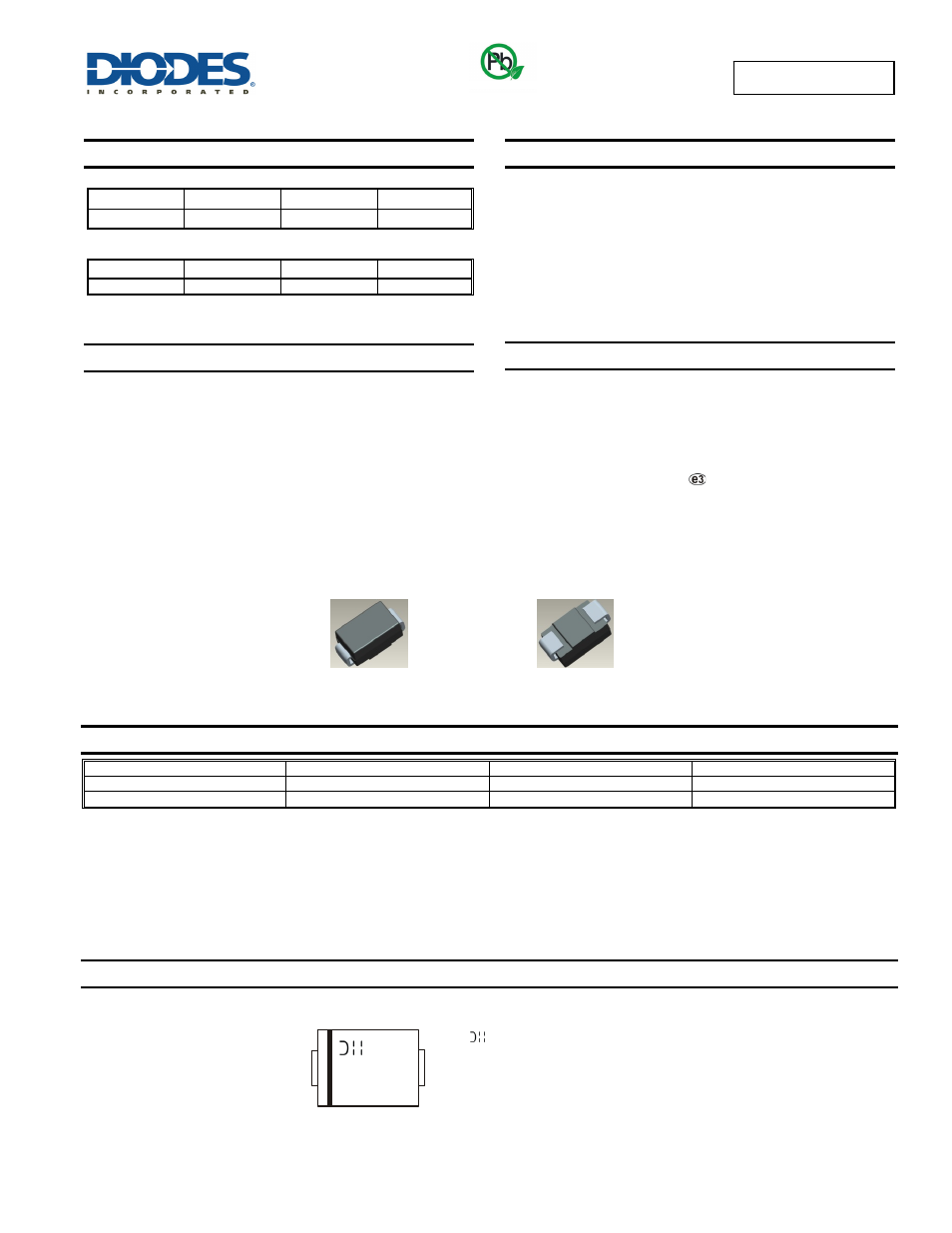

B520C - B560C
5.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Product Summary
B520C/B530C/B540C
V
RRM
(V)
I
O
(A) V
F max
(V) I
R max
(mA)
20/30/40 5.0 0.55 0.5
B550C/B560C
V
RRM
(V)
I
O
(A) V
F max
(V) I
R max
(mA)
50/60 5.0 0.70 0.5
Description and Applications
This Schottky Barrier Rectifier has been designed to meet the general
requirements of commercial applications. It is ideally suited for use
as:
•
Polarity Protection Diode
• Re-Circulating
Diode
• Switching
Diode
Features and Benefits
•
Guard Ring Die Construction for Transient Protection
•
Ideally Suited for Automated Assembly
•
Low Power Loss, High Efficiency
•
For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
•
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Notes 3 & 4)
•
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
• Case:
SMC
•
Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
•
Moisture Sensitivity: Level 1 per J-STD-020
•
Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
•
Polarity: Cathode Band or Cathode Notch
•
Weight: 0.21 grams (approximate)
Ordering Information
(Note 5)
Part Number
Compliance Case
Packaging
B5xxC-13-F
Standard
SMC
3000/Tape & Reel
B540CQ-13-F
Automotive
SMC
3000/Tape & Reel
* xx = Device type, e.g. B520C-13-F (SMC package).
Notes:
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.
2. S more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Product manufactured with Date Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.
5. For packaging details, go to our website at
Marking Information
Top View
Bottom View
Green
B5x0C = Product type marking code, ex: B540C (SMC package)
= Manufacturers’ code marking
YWW = Date code marking
Y = Last digit of year (ex: 4 for 2014)
WW = Week code (01 to 53)
x = 2,3,4,5 or 6 - i.e., x = 4 for B540C
YWW
B5x0C
SMC
