ZLMP8012
Document number: DS35980 Rev. 2 - 2
1 of 3
October 2012
© Diodes Incorporated
ZLPM8012
A Product Line of
Diodes Incorporated
SET-TOP BOX SERIES SINGLE LNB
CONTROLLER AND POWER SUPPLY IC
Summary
The ZLPM8012 is a power management and control solution for
satellite set-top boxes (STBs). Based on an efficient boost converter
the ZLPM8012 provides the power supply and all the control signals
required by a single port satellite Low Noise Block (LNB). The
ZLPM8012 includes an accurate 22kHz tone generator to provide
DiSEqC™ control words or continuous tone for band switching
control. Controlled by I
2
C™ and with the minimal external
components the ZLPM8012 provides a high performing cost efficient
solution.
Features
•
Efficient boost converter providing an accurate adjustable
power supplies LNBs
•
Operates from a single rail supply
•
Provides a protected output of up to 550mA
•
Adjustable current limit for system flexibility
•
Designed for stability with low power LNBs
•
Provides standard voltage / tone and DiSEqC control signals
and allows for regional variations.
•
Internal 22kHz generator for DiSEqC control and traditional
band switching
•
22kHz maintains shape across all load conditions
•
Controlled by I
2
C
•
Built in multiple diagnostics and protection for IC and LNB
protection
•
Minimal external components for a simple, reliable and cost
effective solution
•
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
•
Halogen and Antimony Free. “Green” Device (Note 3)
Applications
•
Single tuner Satellite Set-top boxes
High current LNBs
Stability with minimal current LNBs
•
Satellite PC Cards
•
TV’s with integrated satellite tuners
•
Hybrid Set-top boxes
•
Suitable for Digital and Analog satellite systems

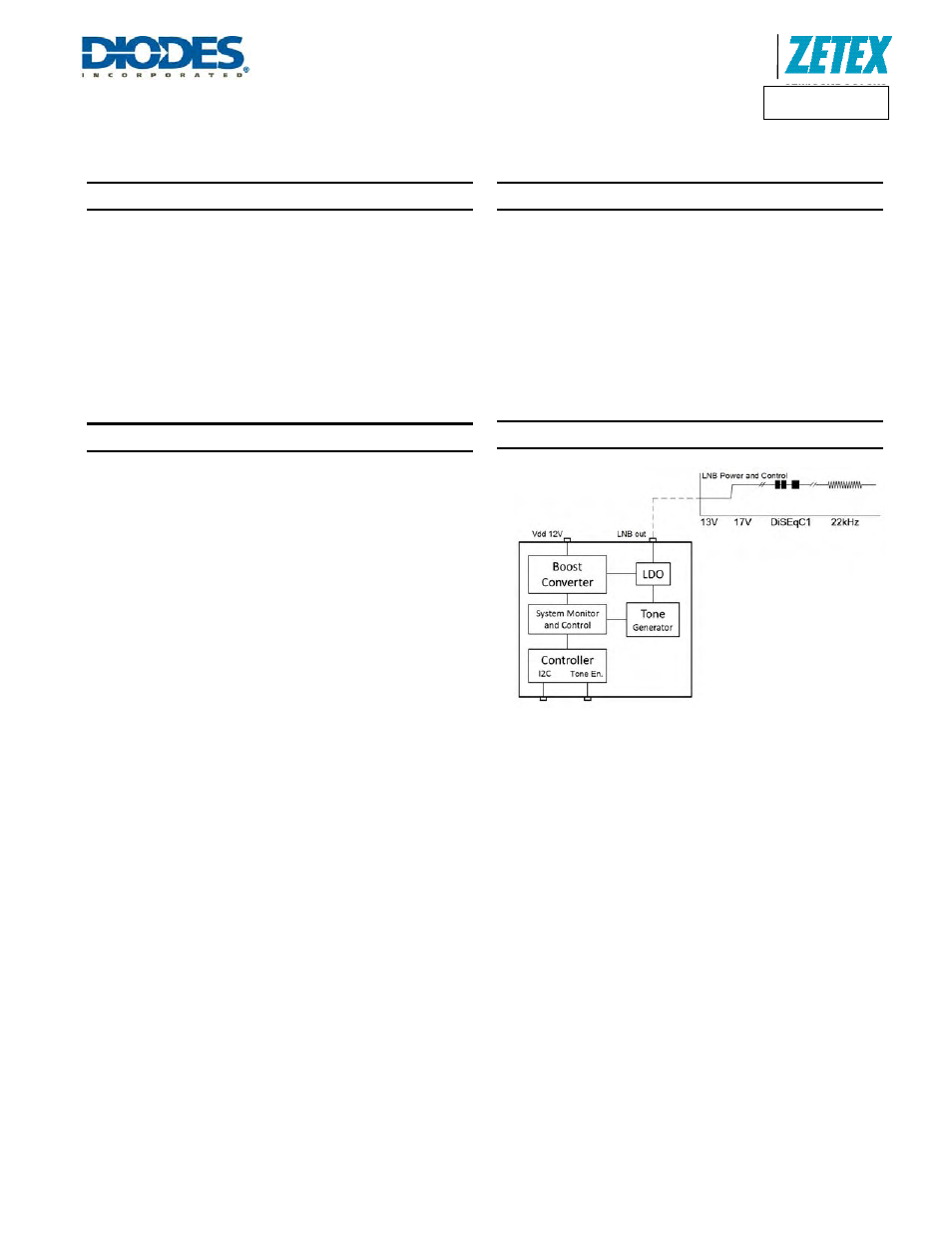

System Diagram
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. Se information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl)
and <1000ppm antimony compounds.
DiSEqC
is a trademark of Eutlesat.
I
2
C is a trademark of Philips Corp.
