ZNBG3113
ZNBG3114
Page Number

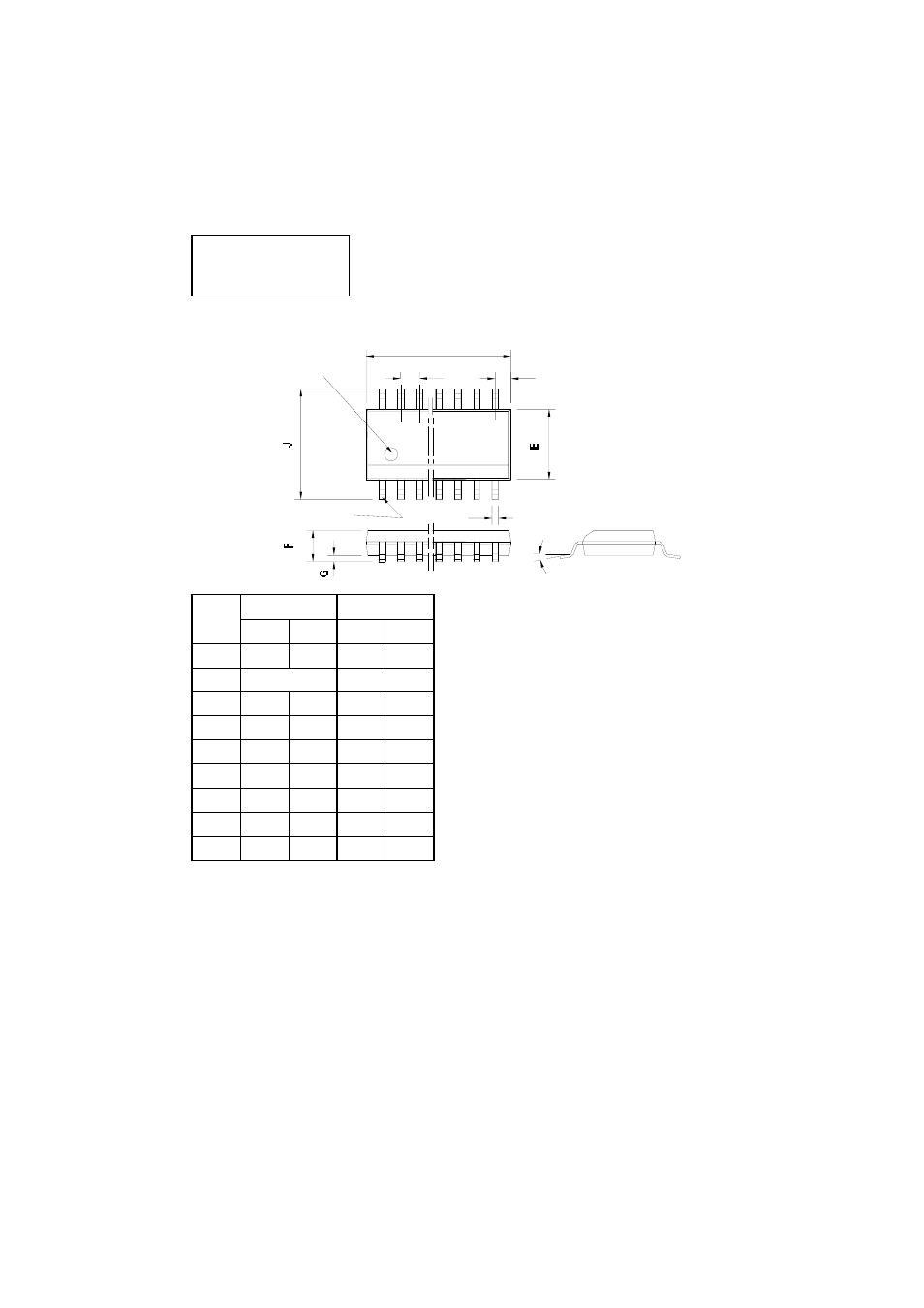

PACKAGE DIMENSIONS
PIN No.1
IDENTIFICATION
RECESS
FOR PIN 1 A
B
D
C
K
PIN Millimetres Inches
MIN MAX MIN MAX
A 8.55 8.74 0.337 0.344
B 0.635 0.025 NOM
C 1.42 1.52 0.056 0.06
D 0.20 0.30 0.008 0.012
E 3.81 3.99 0.15 0.157
F 1.35 1.75 0.053 0.069
G 0.10 0.25 0.004 0.01
J 5.79 6.20 0.228 0.244
K 0° 8° 0° 8°
