Ordering Information*
Order Reference
Tol
(%)
Device Mark
Grade
Status (*)
Reel Size
(inches)
Quantity
per reel
Tape Width
(mm)
ZXRE4041CF 0.5
10J
C
Released
7
3000
8
ZXRE4041DF 1
10H
D
Released
7
3000
8
Notes:
*All E-LINE variants of ZXRE4041 are obsolete and no longer available for sale. The closet alternative is the SOT23

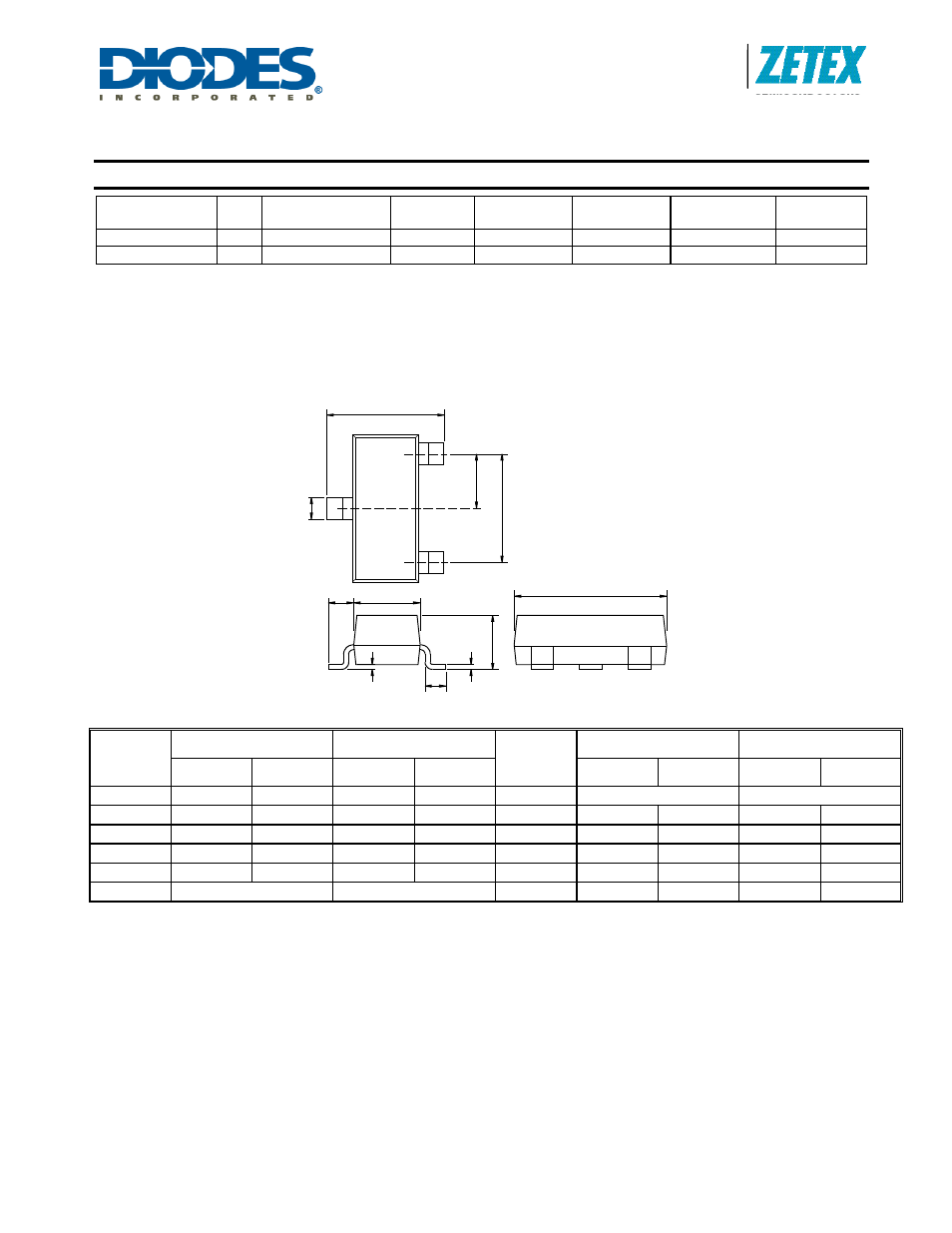

Package Outline SOT23
E
e
L
e1
D
A
c
E1
L1
A1
b
3 leads
Dim. Millimeters
Inches
Dim. Millimeters
Inches
Min. Max. Min. Max.
Min. Max. Min. Max.
A
-
1.12
-
0.044
e1
1.90 NOM
0.075 NOM
A1 0.01 0.10
0.0004
0.004 E 2.10 2.64
0.083
0.104
b 0.30 0.50 0.012
0.020 E1 1.20 1.40 0.047
0.055
c
0.085 0.20 0.003 0.008
L
0.25 0.60 0.0098
0.0236
D 2.80 3.04 0.110
0.120 L1 0.45 0.62 0.018
0.024
e 0.95
NOM 0.037
NOM - - - - -
Note: Controlling dimensions are in millimeters. Approximate dimensions are provided in inches
