ZXRE330

Document number: DS36772 Rev. 2 - 2

1 of 8

www.diodes.com

January 2014

ZXRE330

PRECISION MICROPOWER SHUNT VOLTAGE REFERENCES

Description

The ZXRE330 is a low knee current 3.3V voltage reference.
Offering tight tolerances and sharp knee characteristics –
consuming only 1µA when the 3.3V reference voltage can no
longer be maintained.

Excellent performance is maintained over the 1µA to 5mA
operating current range. The device has been designed to be
highly tolerant of capacitive loads so maintaining excellent stability.

It’s available in small outline SOT23 and TO92 packages This
device offers a pin for pin compatible alternative to industry
standard shunt voltage reference.

Features



Small packages: SOT23 & TO92



No output capacitor required



Output voltage tolerance



ZXRE330E ±2% at +25°C



ZXRE330A ±0.5% at +25°C

 Low

output

noise



(10Hz to 10 kHz).............. 55µV

RMS



Wide operating current range 1µA to 5mA



Extended temperature range -40°C to +85°C



Low temperature coefficient 20ppm/°C (Typ)



Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)



Halogen and Antimony Free. “Green” Device (Note 3)

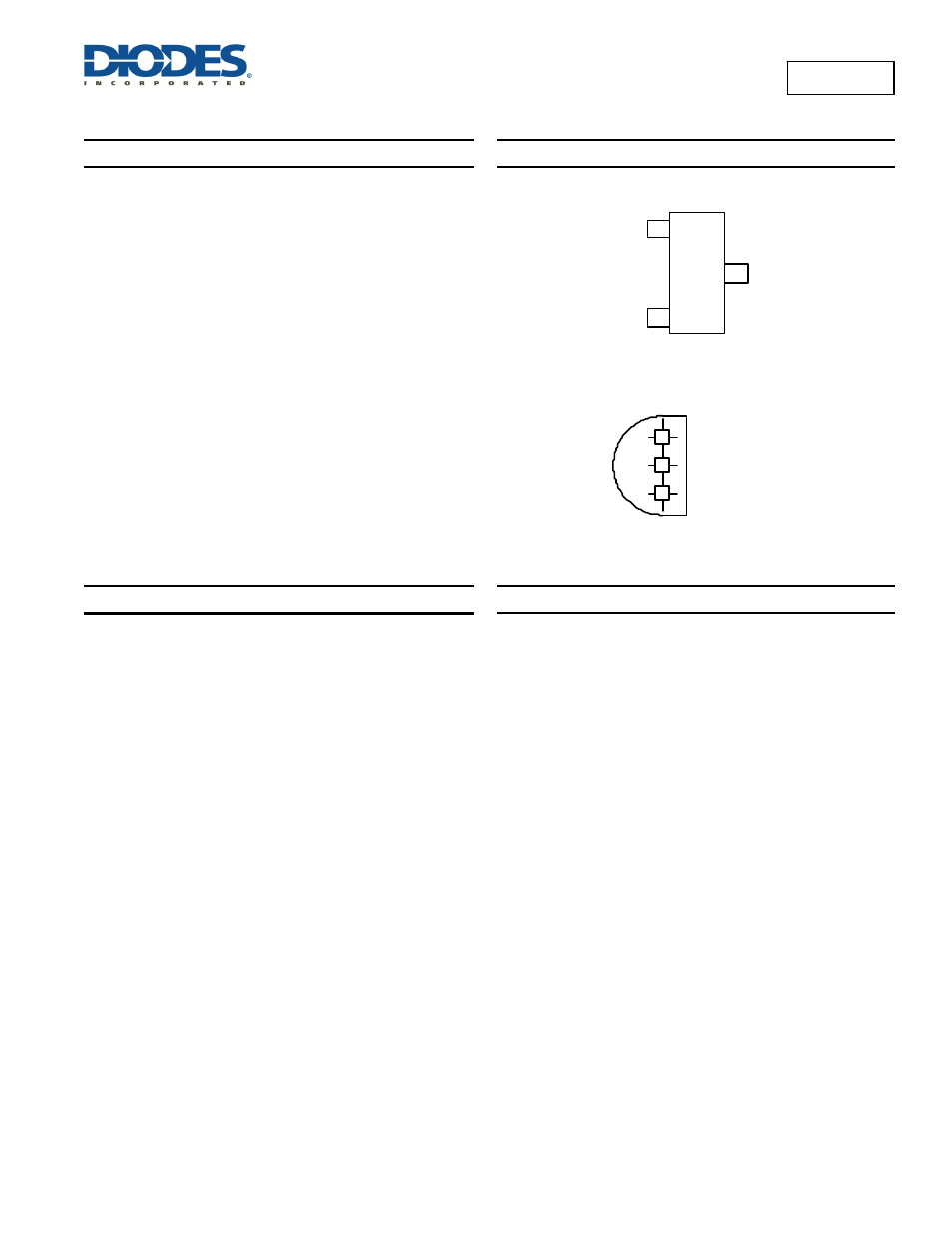

Pin Assignments

ZXRE330xSA (SOT23)

ZXRE330xV (TO92)

Applications



Battery powered equipment

 Precision

power

supplies

 Portable

instrumentation



Portable communications devices



Notebook and palmtop computers



Data acquisition systems



Low current voltage clamps

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.

Anode

Cathode

Top v iew

* Pin 1 mu st be left floating or con nected to pin 2

(Top View)

1 Anode

2 *

3 Cathode

* Pin 2 must be left floating or connected to pin 1
