ZRT050
4.9V LOW POWER PRECISION REFERENCE SOURCE
ZRT050
Document number: DS33259 Rev. 4 - 2
4 of 5
www.diodes.com
February 2011
© Diodes Incorporated
Ordering Information
Device Tol %
Operating
Temperature
Part Mark
Reel
Size
Tape
Width
Quantity
Per Reel
ZRT050GC1 1 -40 to +85°C ZRT050C1 7” 12mm 1000

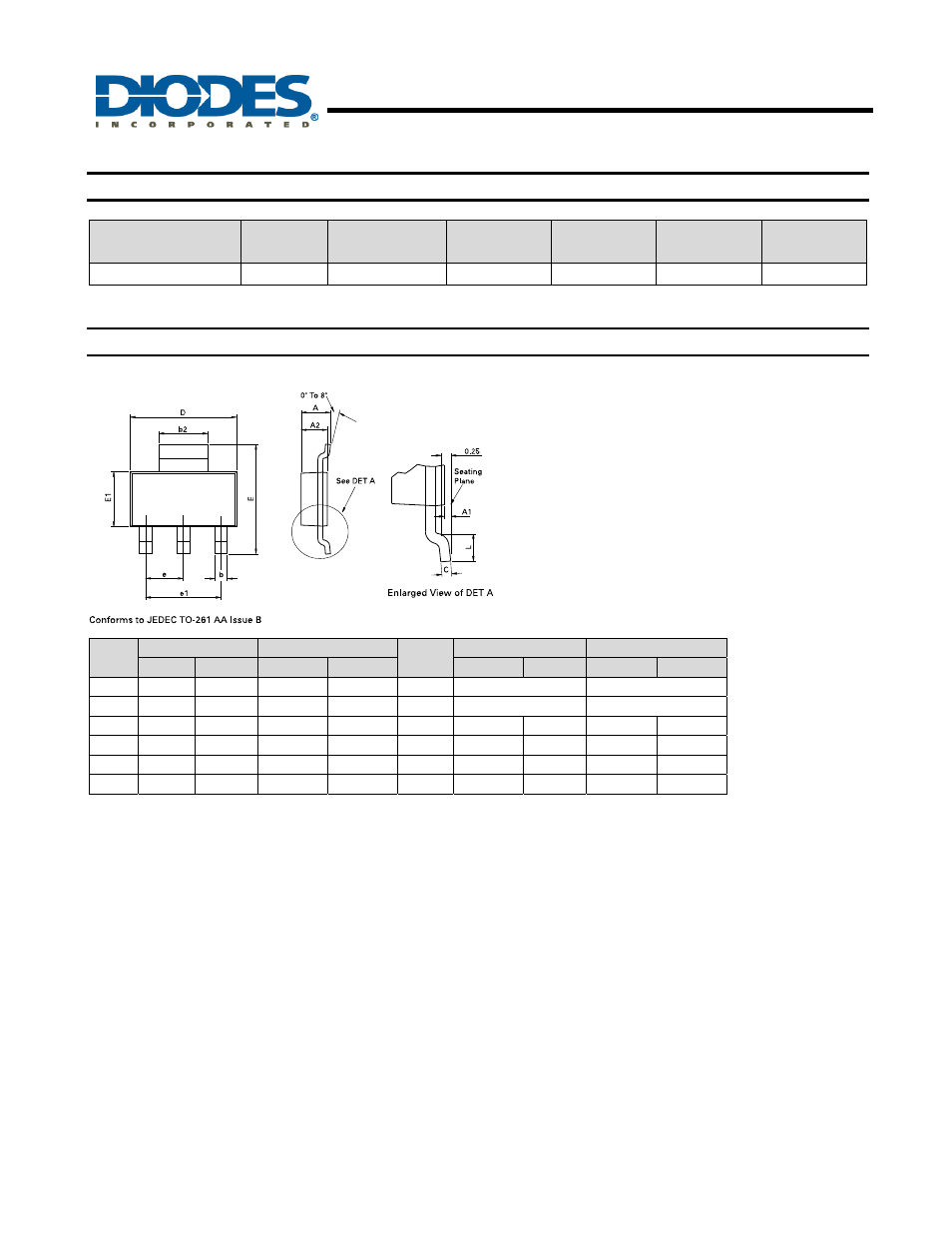

Package Outline Dimensions (All Dimensions in mm)
SOT223
DIM
Millimeters Inches
DIM
Millimeters Inches
Min Max Min Max Min Max Min Max
A - 1.80 - 0.071 e 2.30 BSC 0.0905 BSC
A1 0.02 0.10 0.0008 0.004 e1 4.60 BSC 0.181 BSC
b 0.66 0.84 0.026 0.033 E 6.70 7.30 0.264 0.287
b2 2.90 3.10 0.114 0.122 E1 3.30 3.70 0.130 0.146
C 0.23 0.33 0.009 0.013 L 0.90 - 0.355 -
D 6.30 6.70 0.248 0.264 - - - - -
Note: Controlling dimensions are in millimeters. Approximate dimensions are provided in inches.
