ZRC500
PRECISION 5.0 VOLT LOW KNEE CURRENT VOLTAGE REFERENCE
ZRC500
Document number: DS32173 Rev. 5 - 2
4 of 5
March 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
Ordering Information*
Order Reference
Tol
(%)
Device Mark
Reel Size
(inches)
Quantity
per reel
Tape Width
(mm)
ZRC500F02TA 2
50T
7
3000
8
ZRC500F01TA 1
50X
7
3000
8
Notes: *All ZRC500A variants (E-Line 3-pin), ZRC500Y variants (E-Line 2-pin), ZRC500R variants (E-Line 3-pin reversed) and ZRC500N8 variants (SO-8)
are obsolete.

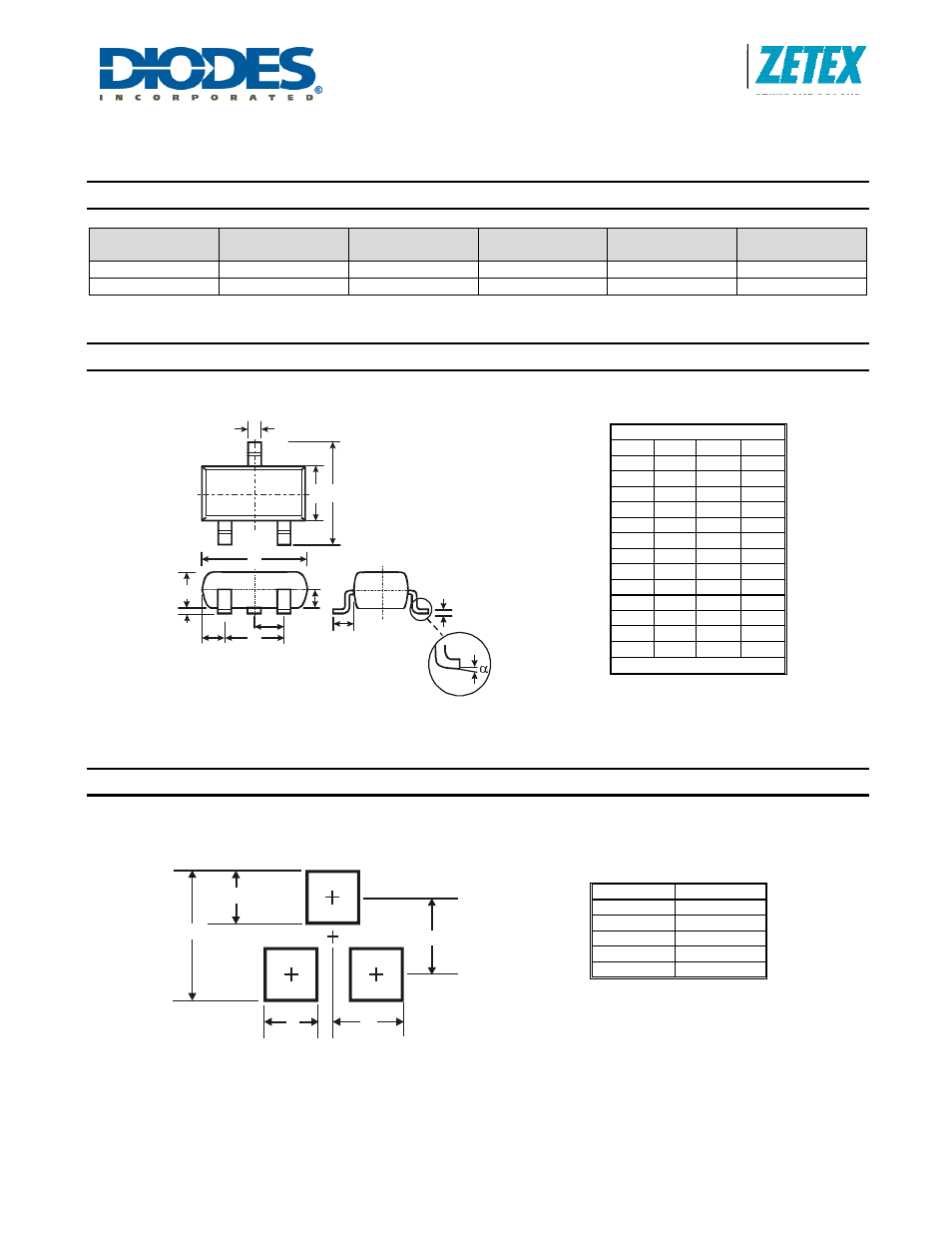

Package Outline Dimensions
SOT23
Suggested Pad Layout
SOT23
SOT23
Dim Min Max Typ
A
0.37 0.51 0.40
B
1.20 1.40 1.30
C
2.30 2.50 2.40
D
0.89 1.03 0.915
F
0.45 0.60 0.535
G
1.78 2.05 1.83
H
2.80 3.00 2.90
J
0.013 0.10 0.05
K
0.903 1.10 1.00
K1
- -
0.400
L
0.45 0.61 0.55
M
0.085 0.18 0.11
α
0° 8° -
All Dimensions in mm
Dimensions Value (in mm)
Z
2.9
X
0.8
Y
0.9
C
2.0
E
1.35
X
E
Y
C
Z
A
M
J
L
D
F
B C
H
K
G
K1
