ZRC330
PRECISION 3.3VOLT LOW KNEE CURRENT VOLTAGE REFERENCE
ZRC330
Document number: DS32163 Rev. 7 - 2
1 of 5
March 2012
© Diodes Incorporated
A Product Line of
Diodes Incorporated
Description
The ZRC330 uses a bandgap circuit design to achieve a
precision micropower voltage reference of 3.3 volts. The
device is available in a small outline surface mount
package, ideal for applications where space saving is
important.
The ZRC330 design provides a stable voltage without an
external capacitor and is stable with capacitive loads. The
ZRC330 is recommended for operation between 20µA and
5mA and so is ideally suited to low power and battery
powered applications.
Excellent performance is maintained to an absolute
maximum of 25mA, however the rugged design and 20 volt
processing allows the reference to withstand transient
effects and currents up to 200mA. Superior switching
capability allows the device to reach stable operating
conditions in only a few microseconds.
Features
•
Small outline SOT23 package
•
No stabilizing capacitor required
•
Low knee current, 15
μA typical
•
Typical slope resistance 0.6
Ω
•
± 3%, ± 2% and 1% tolerance
•
Industrial temperature range
•
Operating current 20
μA to 5mA
•
Green molding compound (No Br, Sb)
Applications
•
Battery powered and portable equipment.
•
Metering and measurement systems
• Instrumentation
• Test
equipment
•
Data acquisition systems
•
Precision power supplies
•
Crystal oscillators

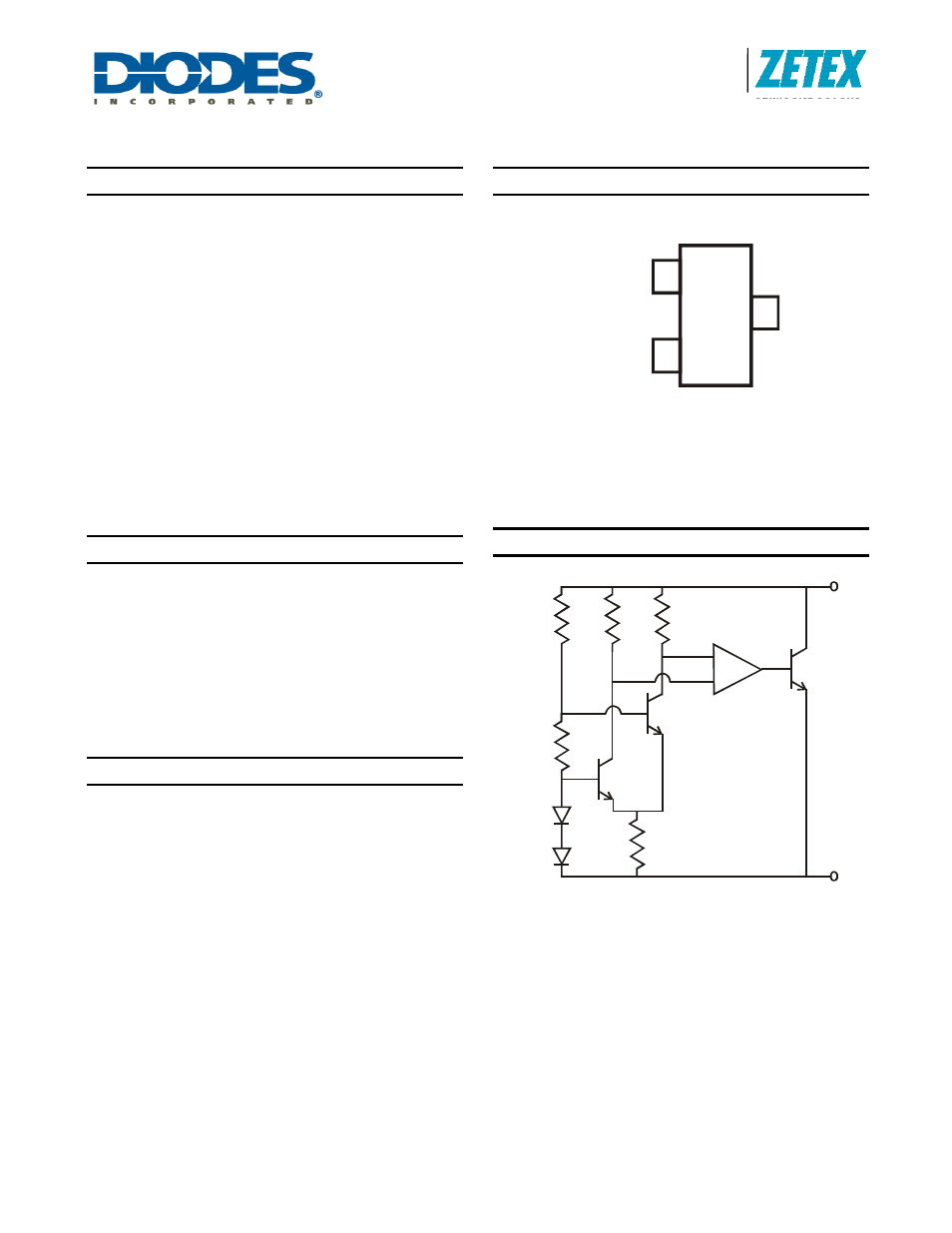

Pin Assignments
SOT23 Package Suffix – F
1
3
2
V
R
GND
(Top View)
Pin 1 floating or connected to pin 2
Typical Application Circuit
+
-
